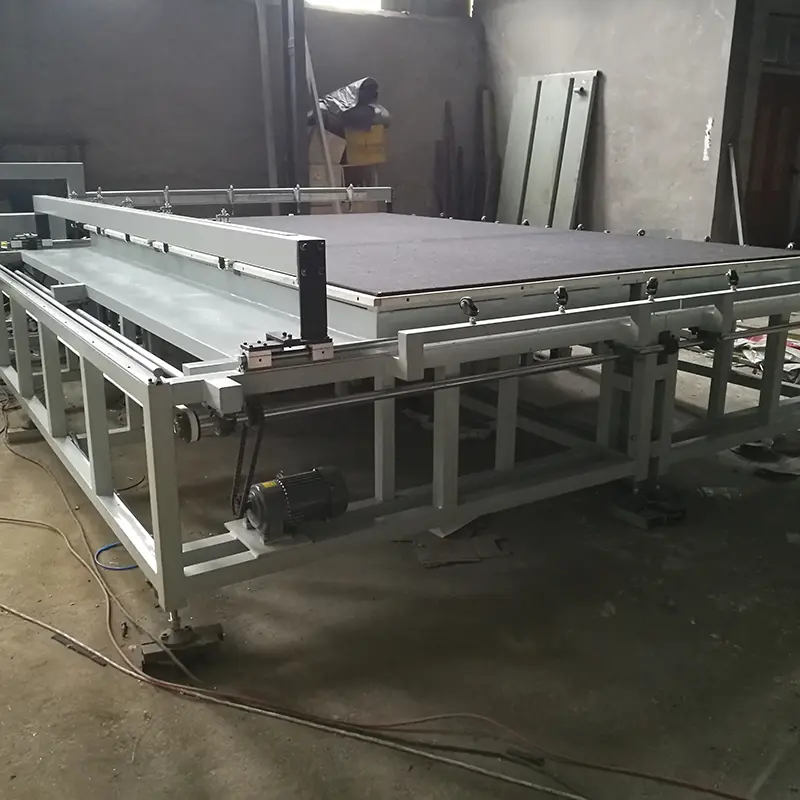

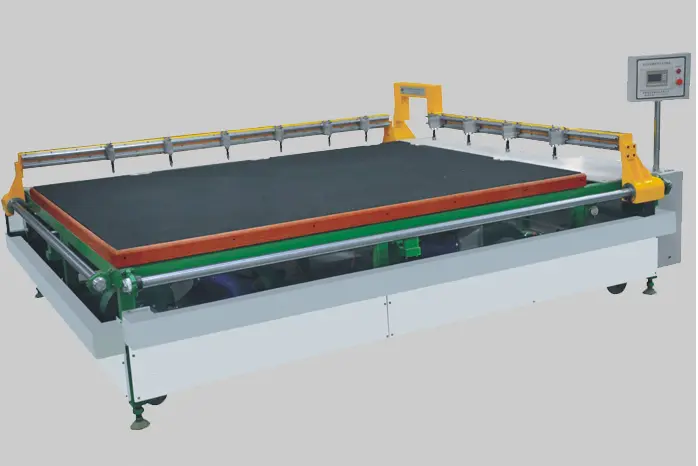

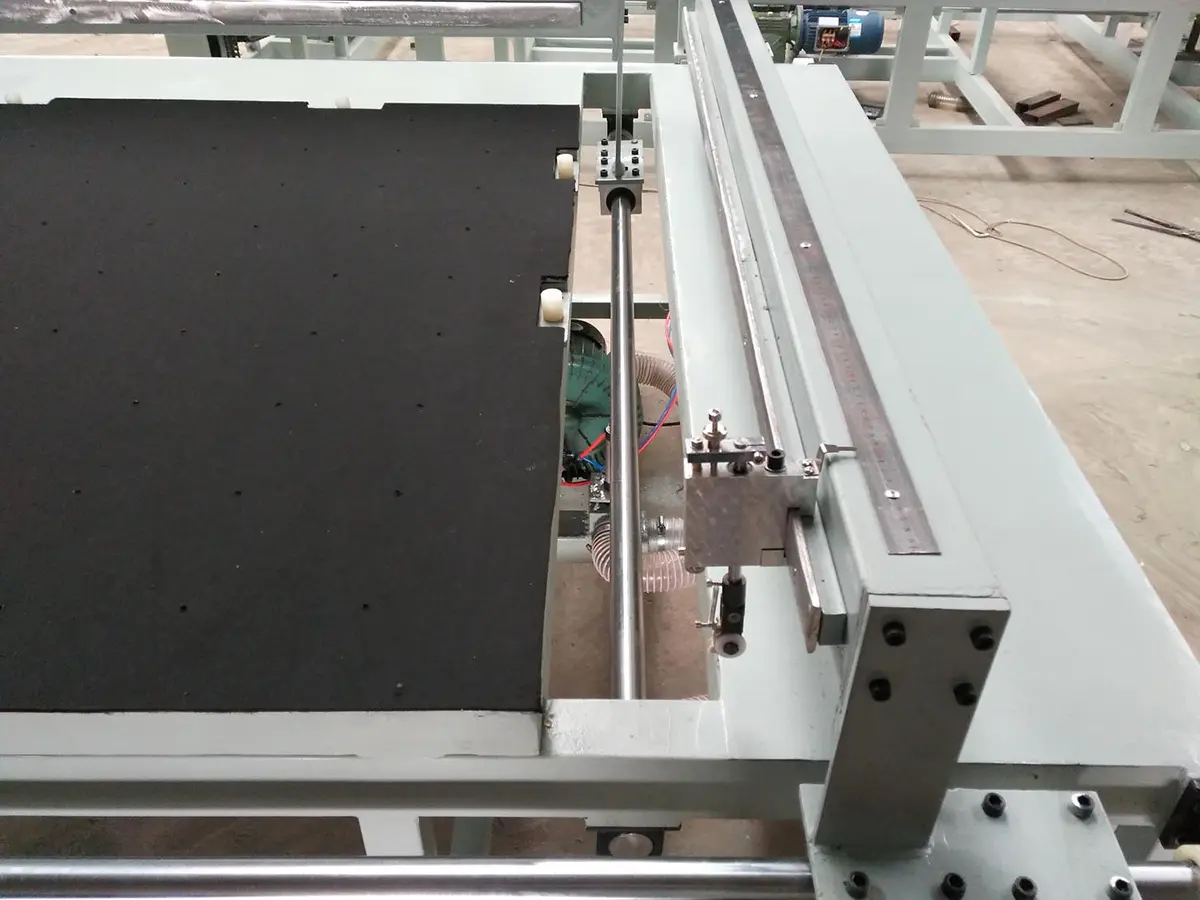

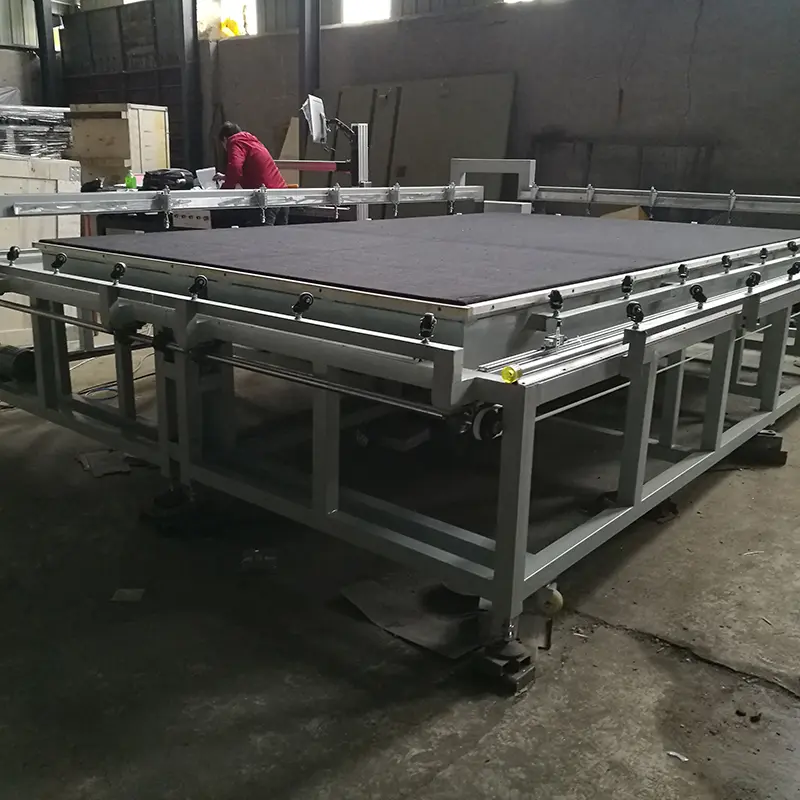

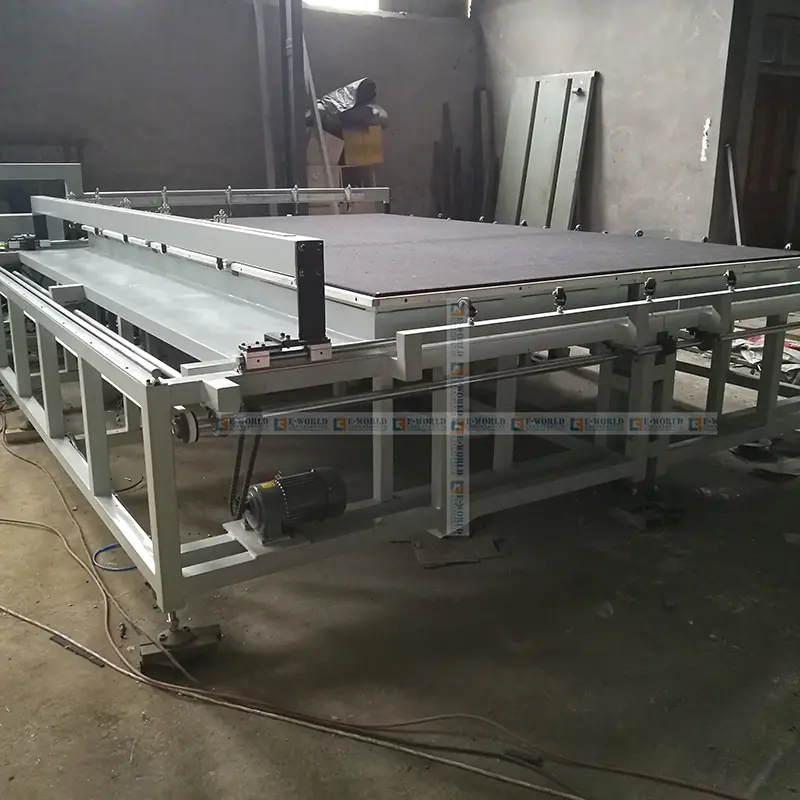

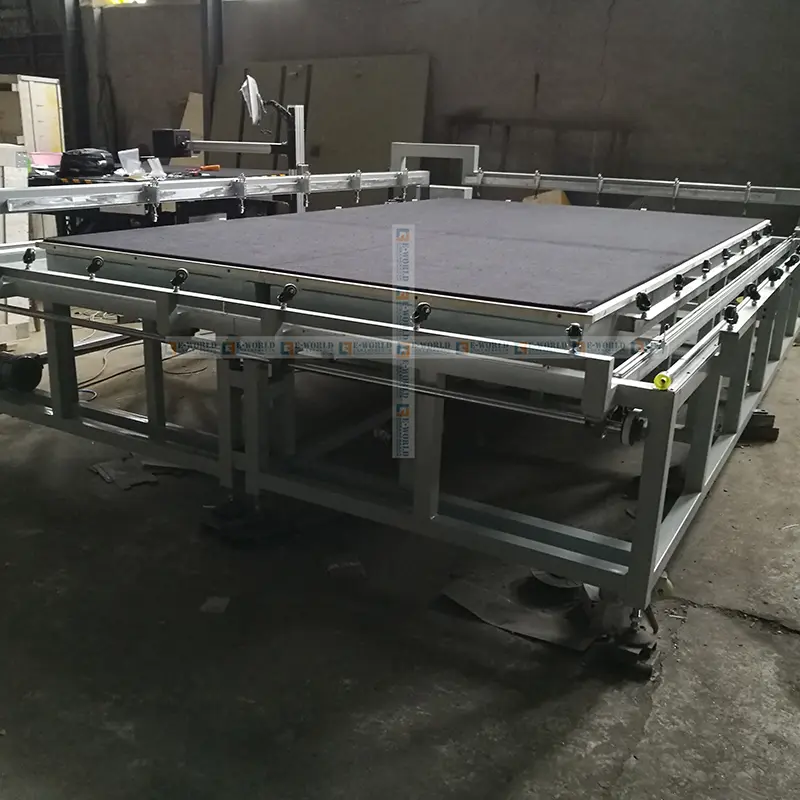

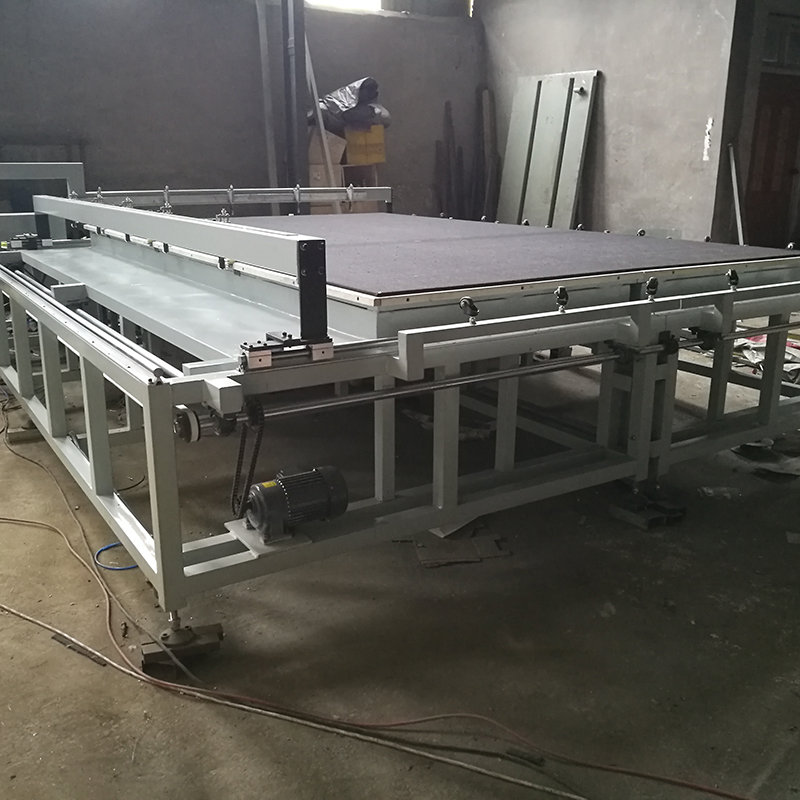

ZJQZ 2620 Semi-automatic glass cutting machine (Price USD 5,490 FOB Qingdao port,china )
video
Introduction
Semi-automatic precision cutting table is improved by using geardrive equipment and automatic stop function.Manully pull of the two beams is unneccesary.Press the sharter on the controlling panel,the cutting would be automatically done by the gear-drive operation reduce the intensity of labor and improve the production efficiency
Technical parameter
|
Outline Dimension: |
3700*3100*1100mm |
|
Table size |
2600*2000mm |
|
Glass Sheet Size : |
2500*1900mm |
|
The Mini Cutting Size: |
20*20mm |
|
Cutting accuracy: Parallelism: |
from -0.15 to _0.15 |
|
Catercorner: |
from-0.20 to +0.20 |
|
Blower |
1.5 KW |
|
Power: |
380V,50 HZ,3 Phase |
