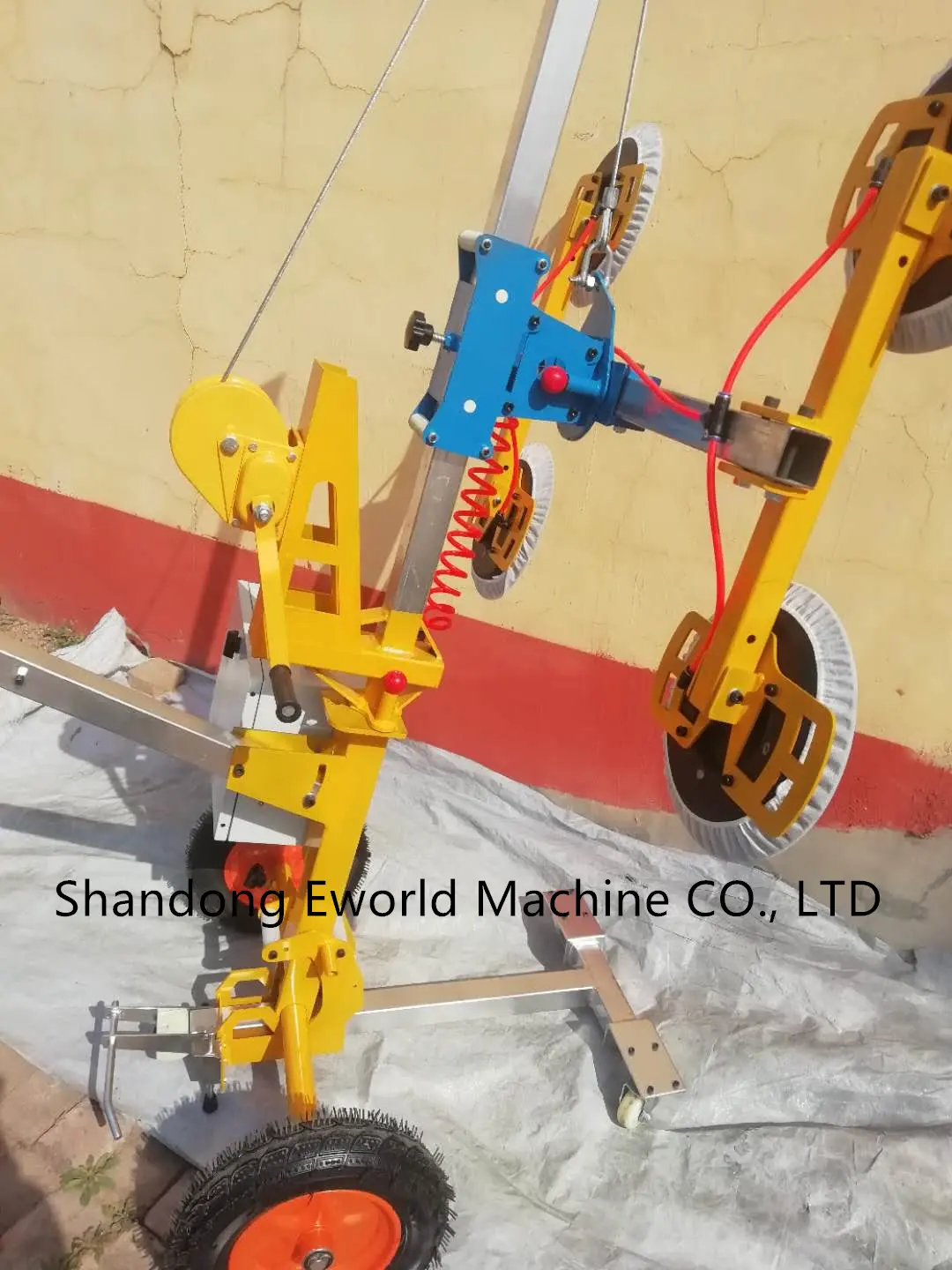

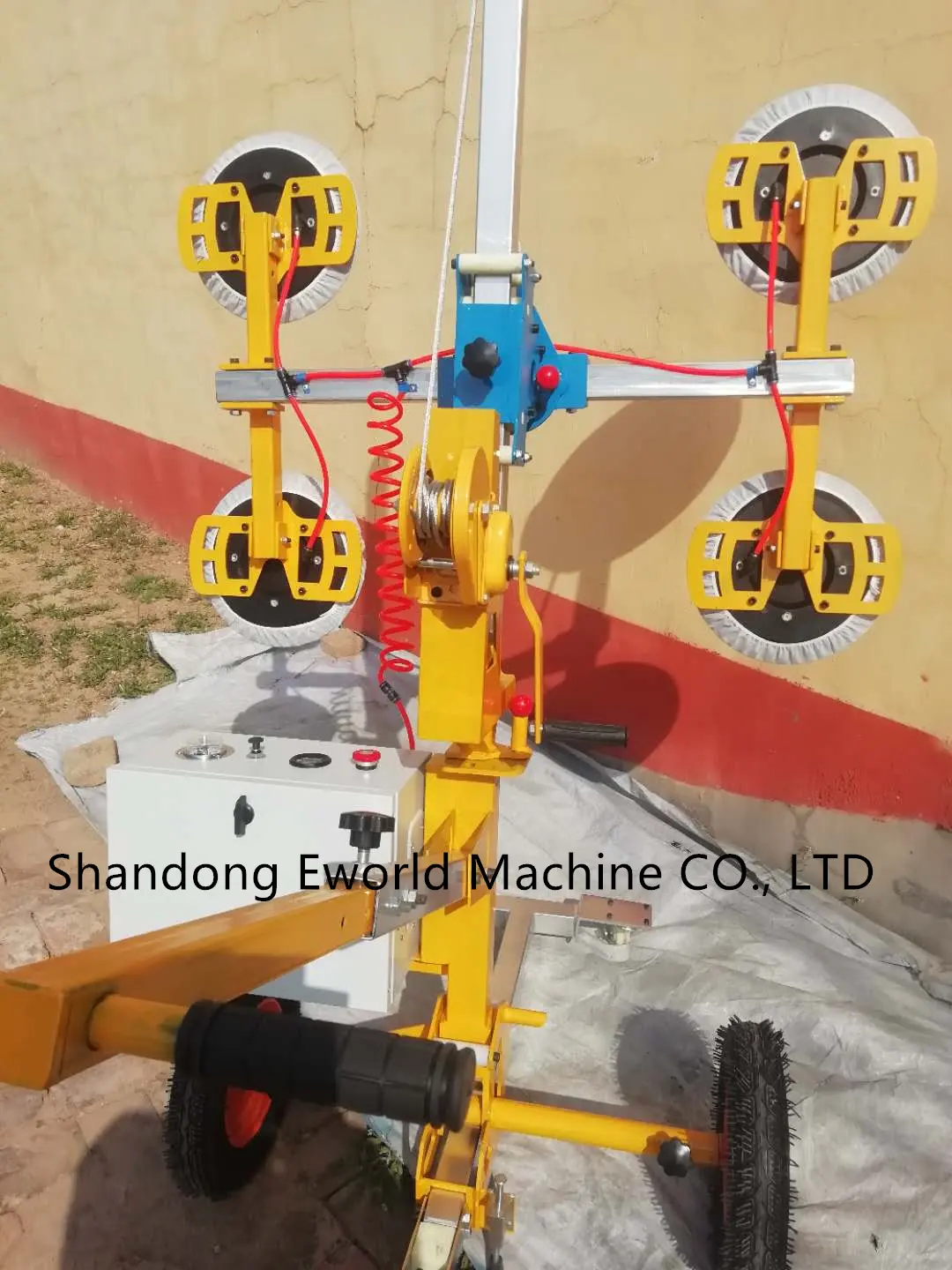

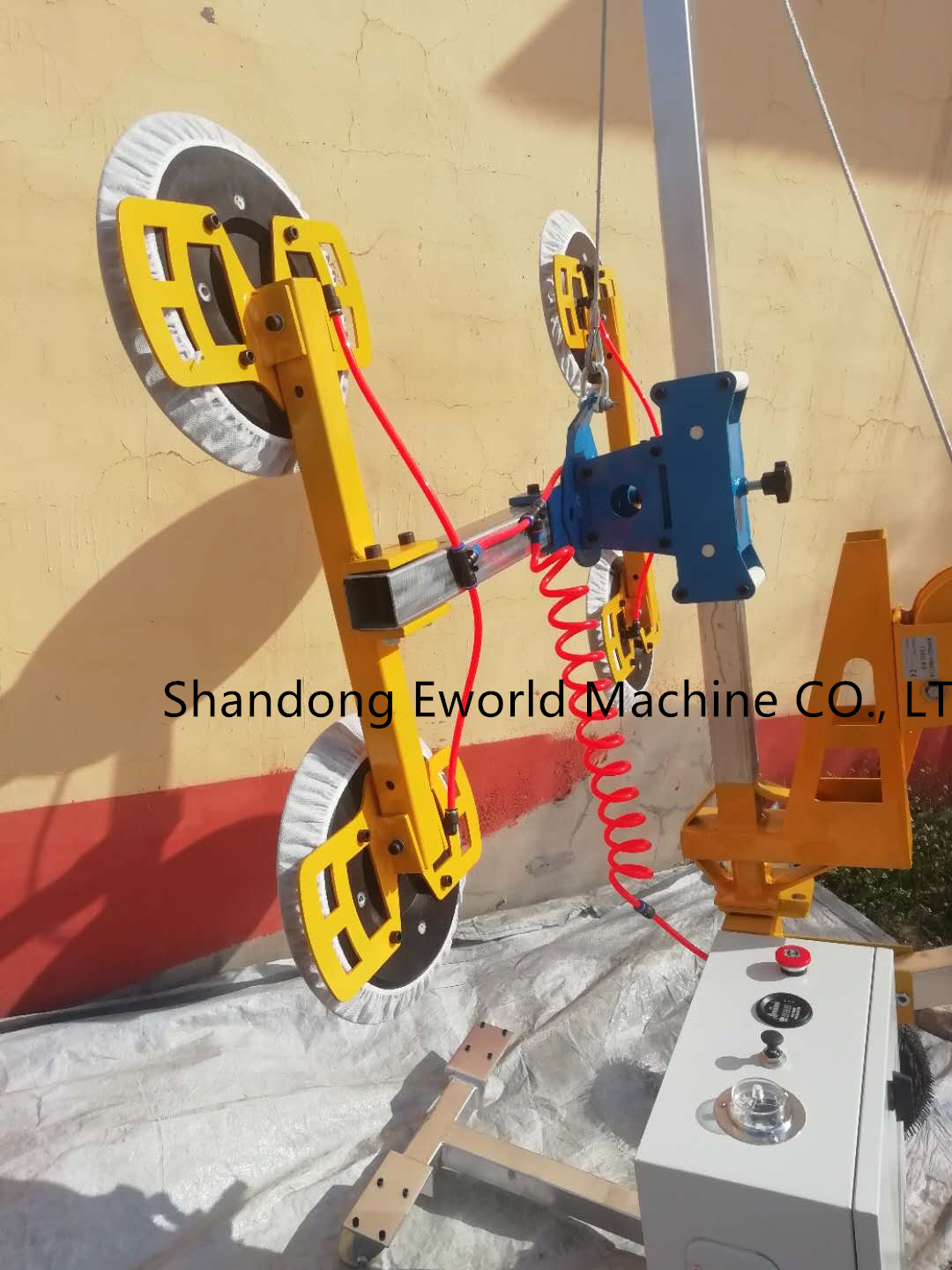

                        sucker glass lifter
use for glass loading, unloading from truck or glazing for bus, train, moving, curved glass and so on.
With powered 90°tilting, continuous 360°rotation,suited for big-sized glass handling in      workshop and heavy-duty installation outdoors.
Superior vacuum lifter will satisfies customers' requirements.
It is able to rotate right/left and incline vertical up to 90 degrees.

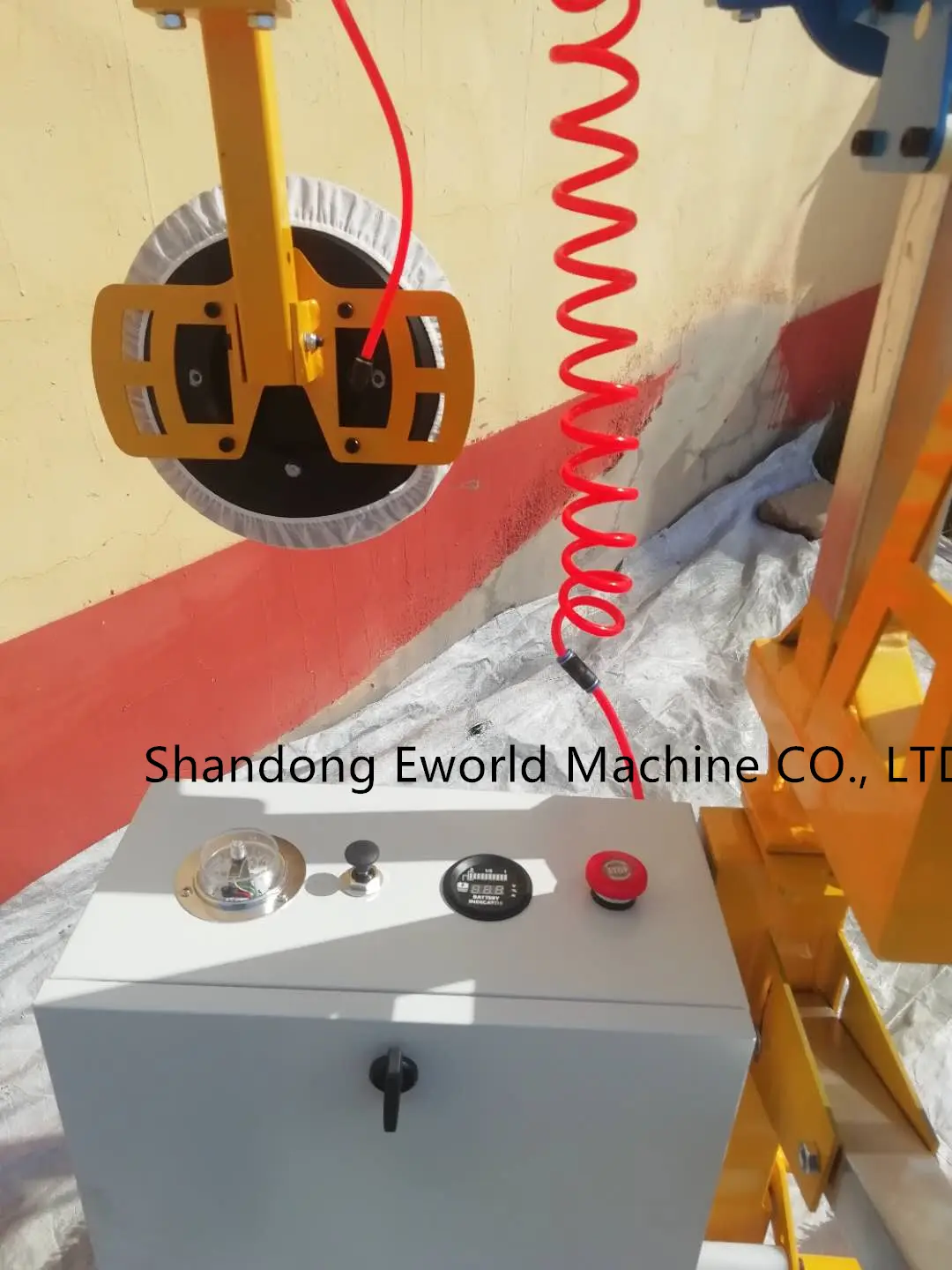

It suck the glass from the sucker with electricity battery , Stable performance, Easy to maintain, Efficient, safe, quick, easy.
Technical parameter
| Brand | Eworld |
| Model | PB300 |
| Work load limit | 300 kg |
| Net weight | 80kg |
| Diameter of suction cup | 12” (200mm) |
| Number of suction cups | 4 pcs |
| Max glass size(recommend) | 2200*3600mm |
| Minimum glass dimension | 29 1/2" x 33 1/2" (750 mm x 850 mm) |
| Rotated angle | Left: 90°, |
| Inclined angle | 90° |
