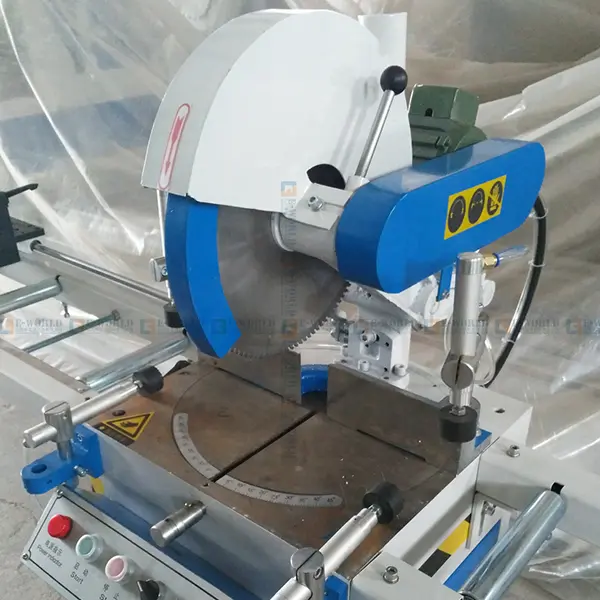

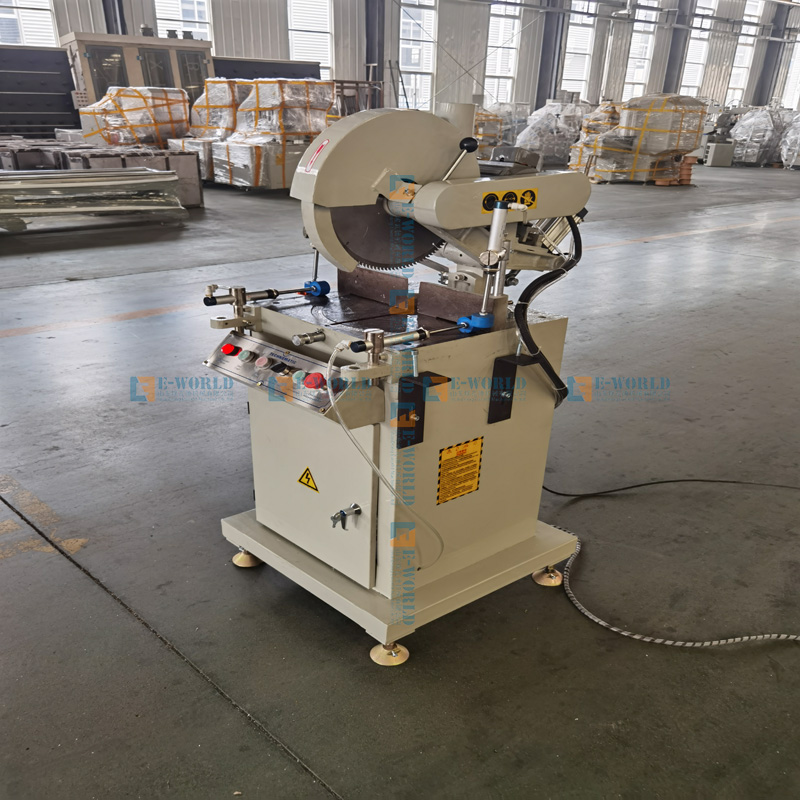

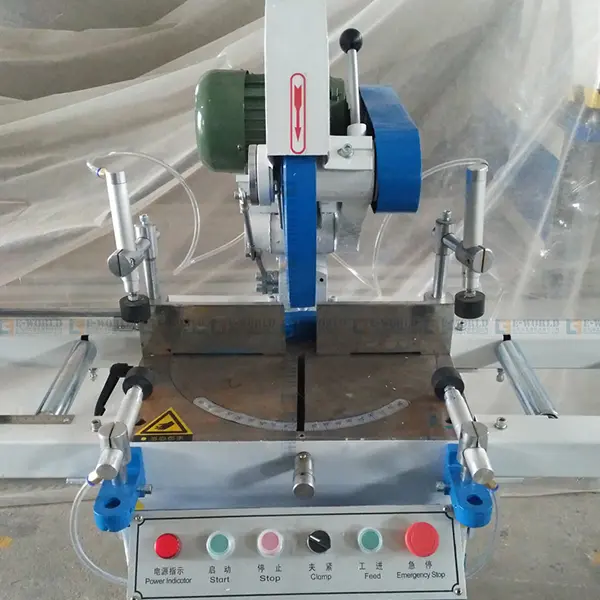

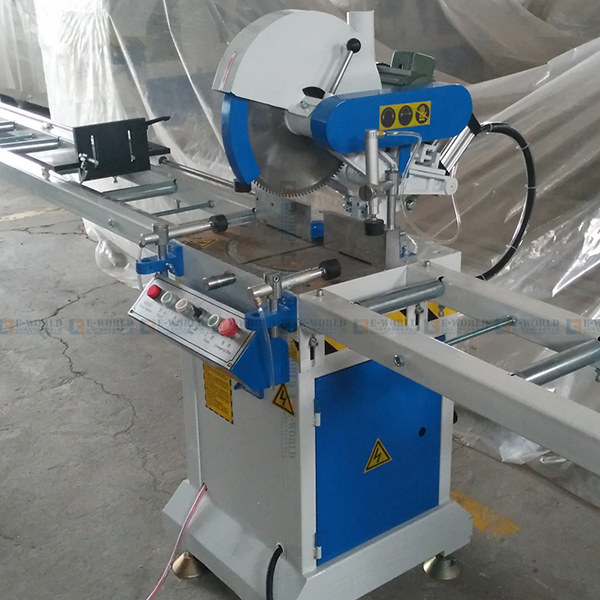

Skillful Manufacture Single Head Cutting Saw
product detail
Products introduction:

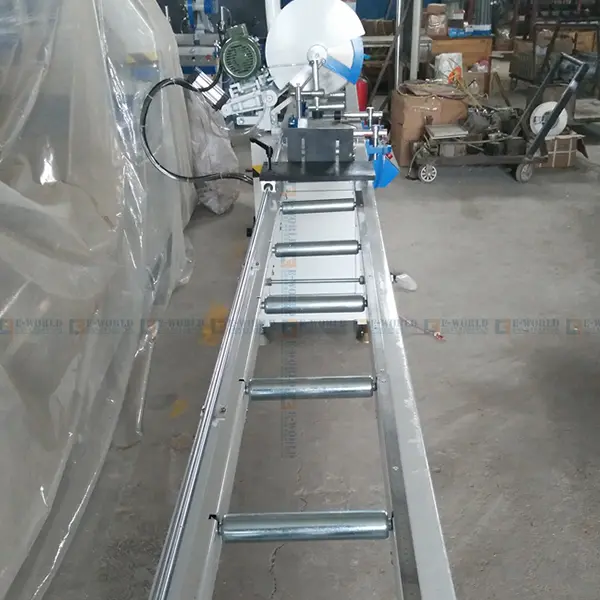

This machine is used for processing the aluminum and PVC/plastic profiles at angles of -45º ~90º ~45º , the swaying stable feeder is adopted, and the pneumatic driving system is used in profiles clamping and cutting. It has the features of easy operation and high accuracy.
Note: This cutting saw is mainly used in processing PVC/UPVC/plastic/Vinyl window door, it can make about 15-20 pieces windows doors per 8 hours.
|
Model number |
DSJ02 |
|
Saw cutting(W H) |
160mm 120mm |
|
Main motor power |
1.1KW |
|
Main motor rotation speed |
2840 r/min |
|
Saw blade dimension |
350 30 |
|
Saw blade swing angle |
90~45 |
|
Repeat locating length |
≤0.05mm |
|
Planeness of cutting surface |
≤0.10mm |
