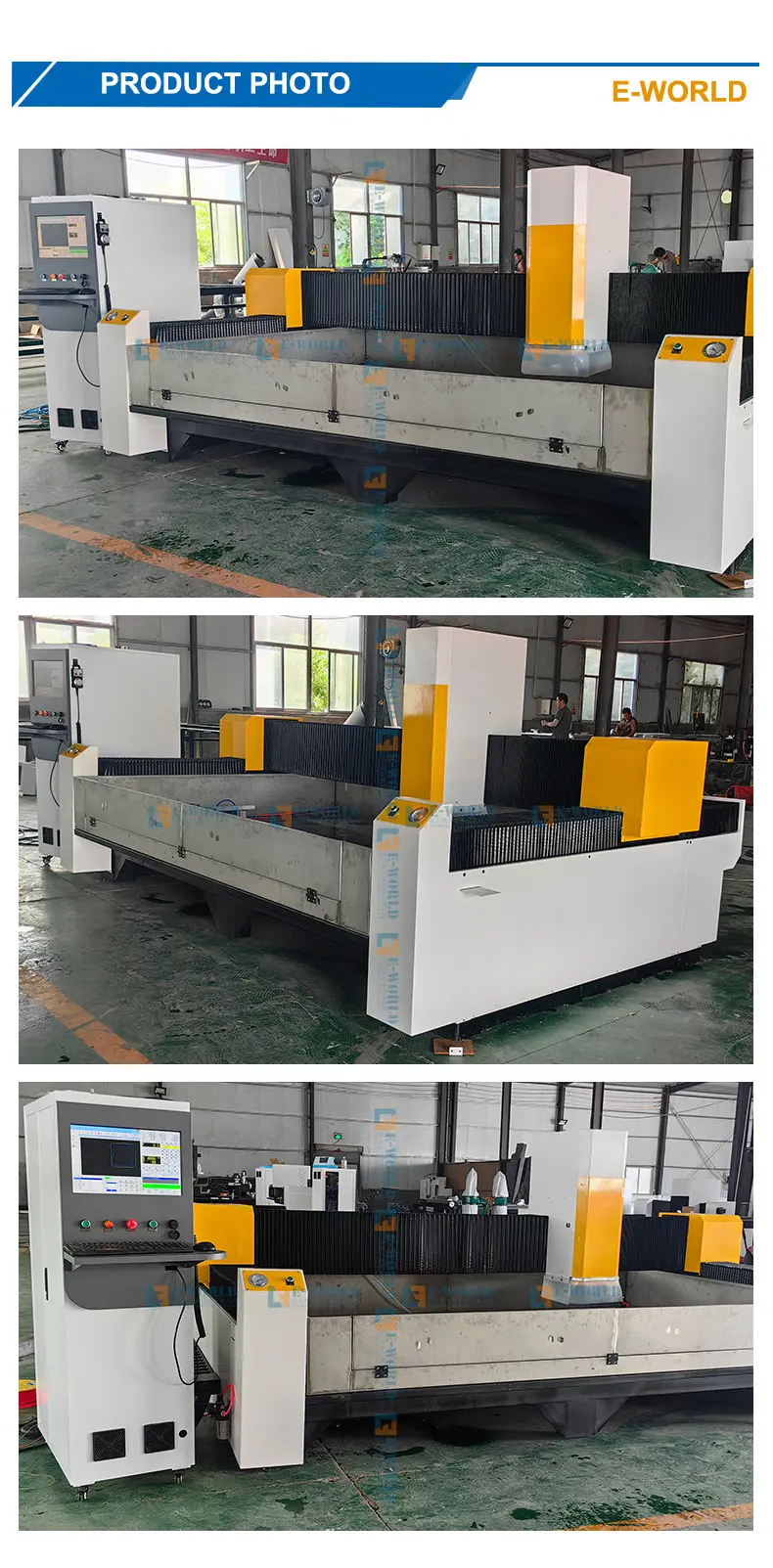

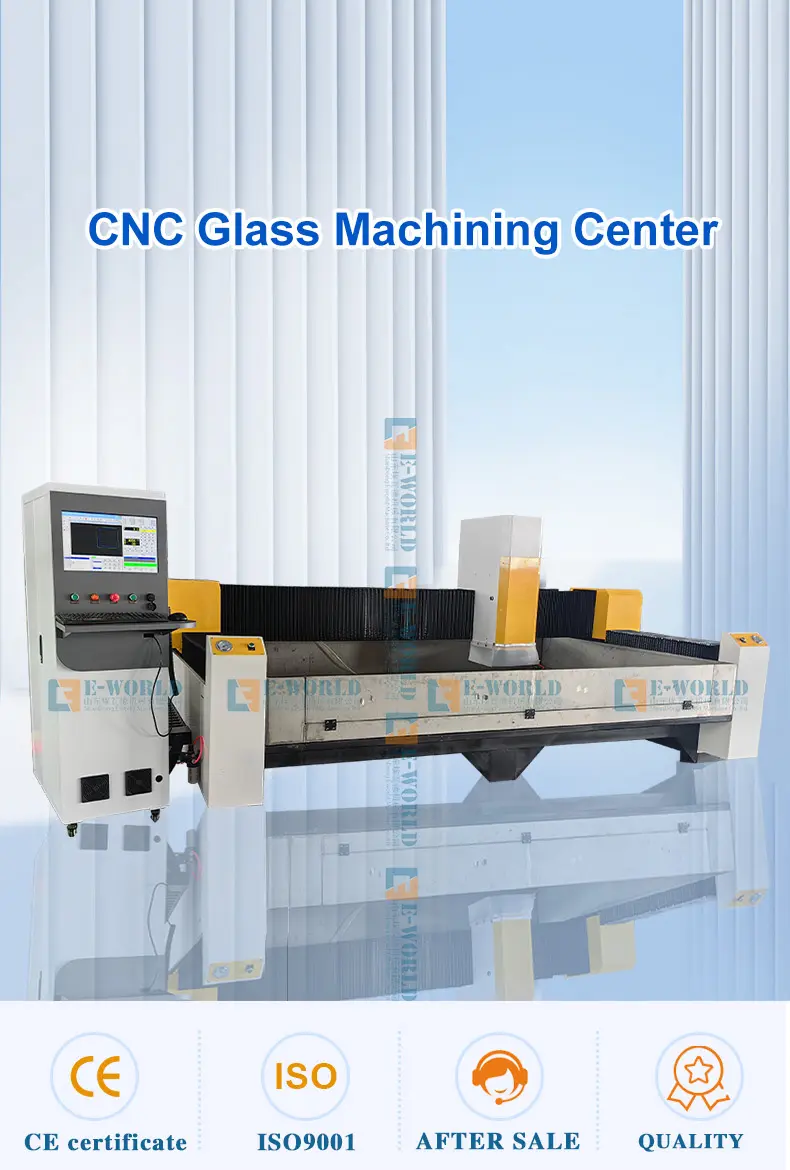

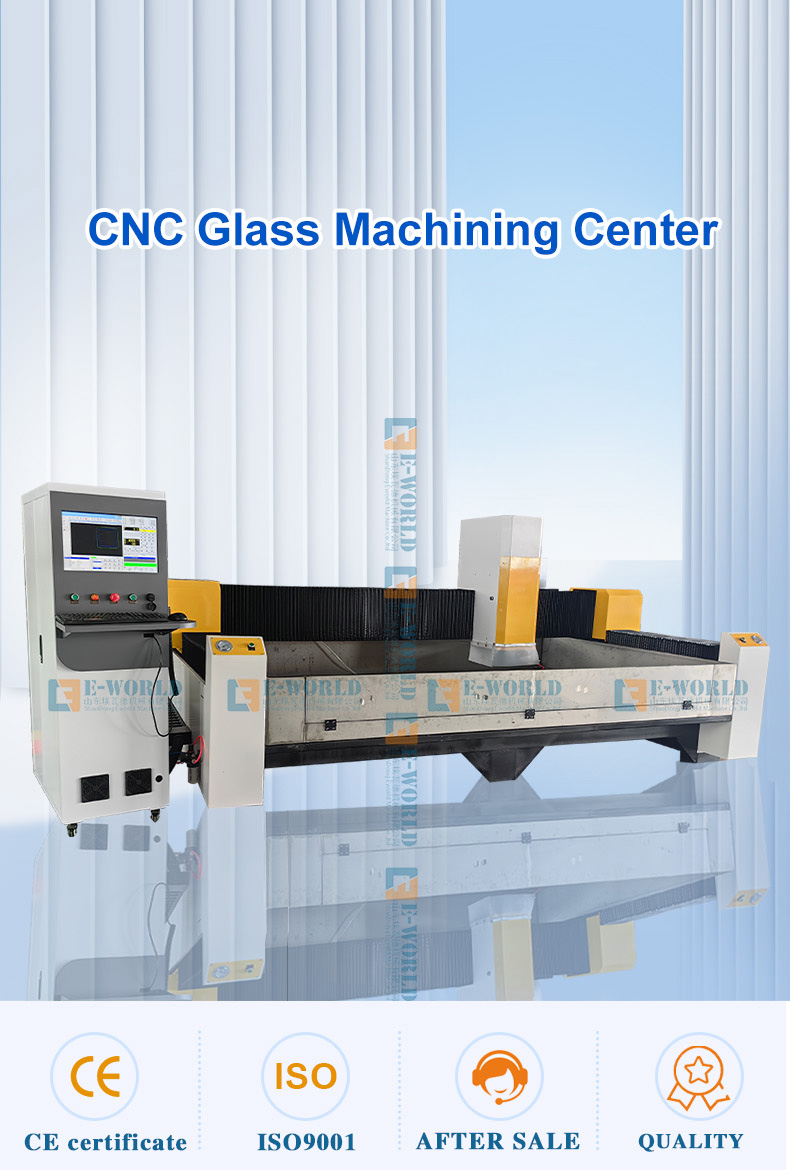

Semi-automatic CNC Glass Machining Center

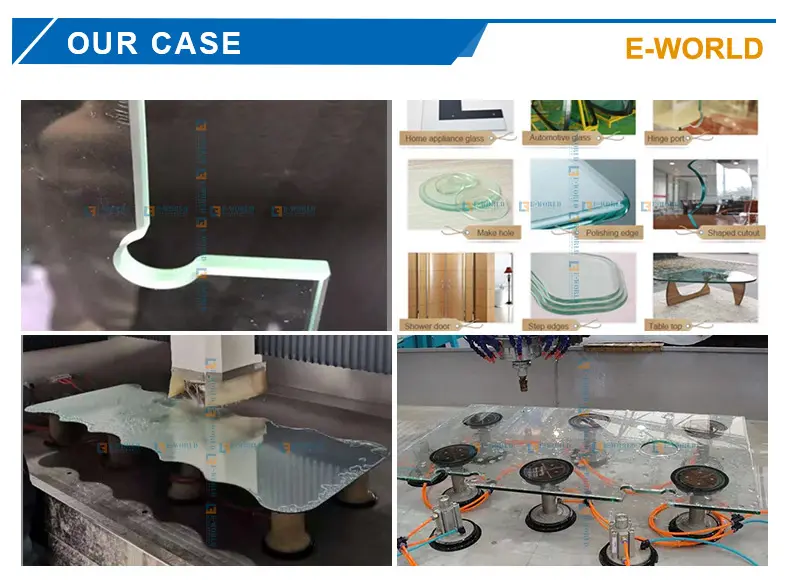

Main Application
Drilling, Milling, Internal and External grinding and polishing, Writing, Shaped Notching, Engraving on glass, stone, quartz and so on
Mechanic Structure
1.The machine tool and beam adopt welded steel structure. With special heat treatment, the structure is firm and can work for a long time.
2.The machine uses automobile paint which is more rust-resistant.
3.Total weight: about 4 tons (including peripheral accessories and electric cabinet).
Mechanic Transmission
The machine is transmitted through AC servo motor by synchronic belt and synchronic belt wheel driven spindle. There is automatic lubricating system for the screw nut and guide-rail slider of the transmitting parts.

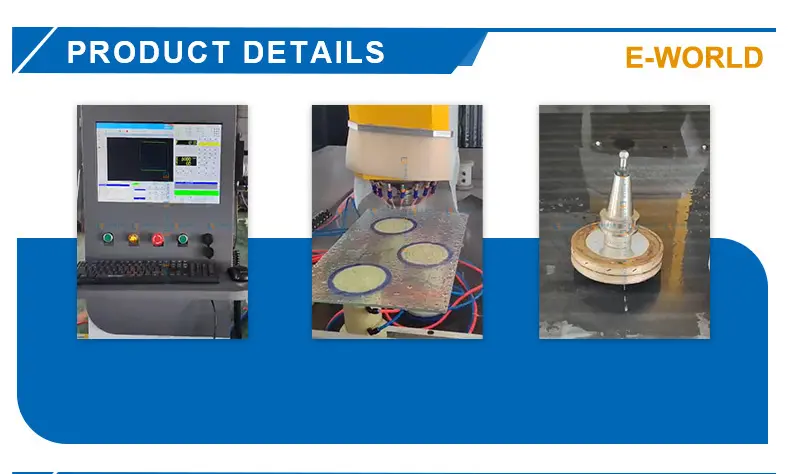

Worktable
1.There is a multi-location worktable of large size in front of the machine. With function of automatic rubdown of high precision, users can adjust the flatness of the worktable when needed. This is to keep a flat worktable.

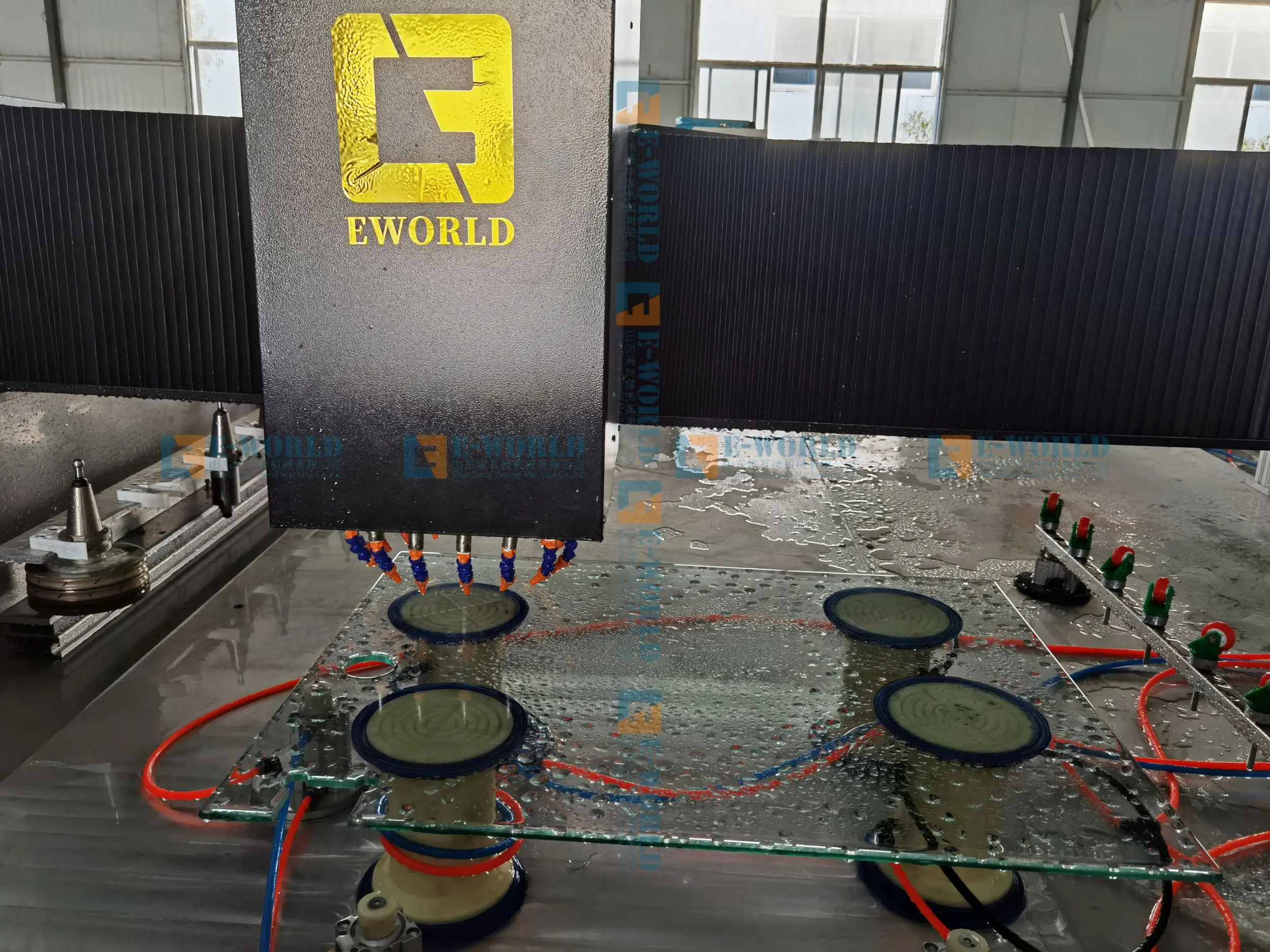

2.There are positioning blocks for the work piece and vacuum system.
|
Spindle travel X Axis |
3000mm |
|
Spindle travel Y Axis |
1500mm |
|
Spindle travel Z Axis |
350mm |
|
From Bottom of Z axis to working table |
380mm |
|
Working table area |
3000MM*1500MM |
|
Max Loading |
300KG |
|
Milling work table |
3000MM*1500MM |
|
stainless steel sheet |
1.5MM |
|
Wheel Diameter |
22MM |
|
Rotate Speed |
9000-12000RPM |
|
3 Axis motor horsepower |
1.5kw |
|
Floor Space(length*wide*height) |
4200*2750*2200MM |
1.Question:Are you manufacture?
Answer: Yes,we are professional manufacture which have more than 5 workshops.
2.Question: How about the service ?
Answer:
① Reply it within 12 hours if it from Ali-trademanager or email .
② Deliver max within 15 days.
④ More than 12 years experience in this kind machine field.
⑤ Fluent English ,communication barrier free.
3.Question:What’s the guarantee ?
Answer:
① Our guarantee is 18 months.
② 24 hour’s technical support by email or calling.
③ English manual and video tutorial.
④ 2 years quality guaranty for the machine (excluding the consumables).
⑤ We will provide the consumable parts at an agency price.
⑥ 24 hours on line service each day, free technical support.
4. Q: Do you provide equipment operation training?
Answer: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
5.Question:if our price is higher than another company or factories ?
Answer: Please check the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.
6.Question:How long is the delivery time ?
Answer: For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
7.Question: What is the payment ?
Answer: Any payment method you want,such as L/C,T/T,D/P,West-union and so on.
