PVC windows Arc bending machine
product detail
Features

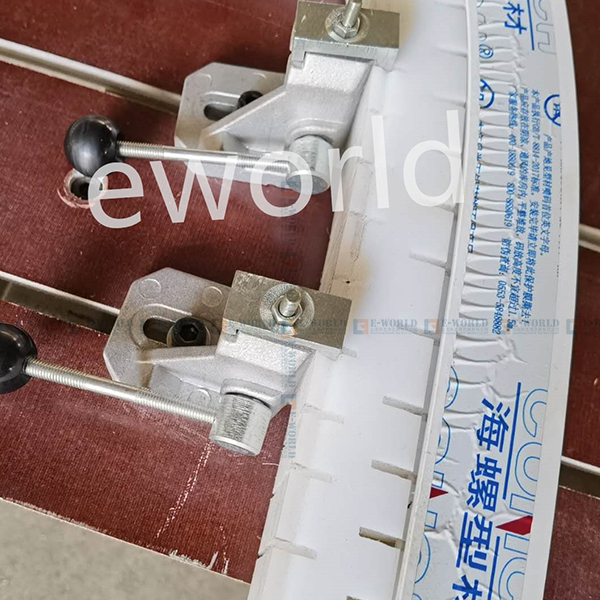

- .Mainly composed of curve forming working table, heating oil groove and bending moulds etc.
- 2).Complete the bending forming by air (also say by infrared ray) electrical heating.
- 3).Complete bending forming ofsemi-circle profile with diameter 500-1800mm and variable radian profile with maximum diameter of 300mm and any type diameter is not more than 3000mm.
- 4).The machine working principle is use electrical air heating to soften profile, and then through shape-making process, make the soft profile appears arc shape.
- 5).Supply the different forming bands according to different profile.
|
Name |
UPVC&PVC arch bending machine |
|
Model |
SYH-1800 |
|
Voltage |
Single phase 220V, 50HZ |
|
Worktable dimension |
2850x1250x800mm |
|
Oil-heating tank dimension |
3100x300x650mm |
|
Oil heating time |
10-15 mins |
|
Oil heating temperature |
100°-120° |
|
Working diameter |
500mm-1800mm |
|
Weight |
600Kg |
Friendly note
The pvc bending process need shape forming strips, we make the shape forming strips according to pvc profile, one pair of forming strip(2 PCS) cost around 300-500USD.
The exact cost depends on the PVC profile, so we are unable to tell you how much of the shape forming stripe until receive your pvc profile.
We need you to courier the pvc sample to us , at least 20cm in length.
