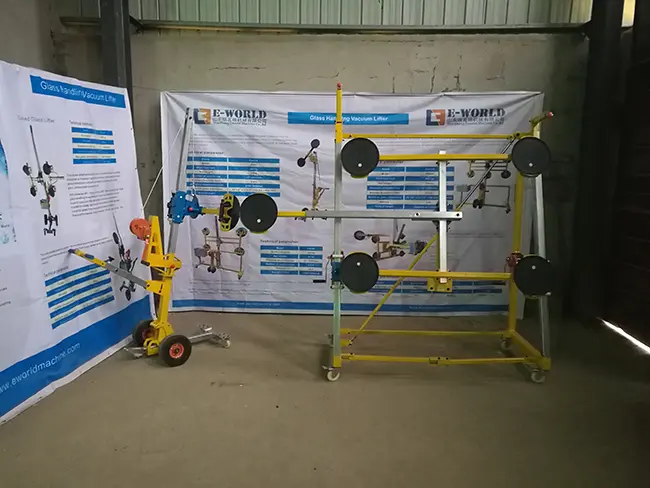

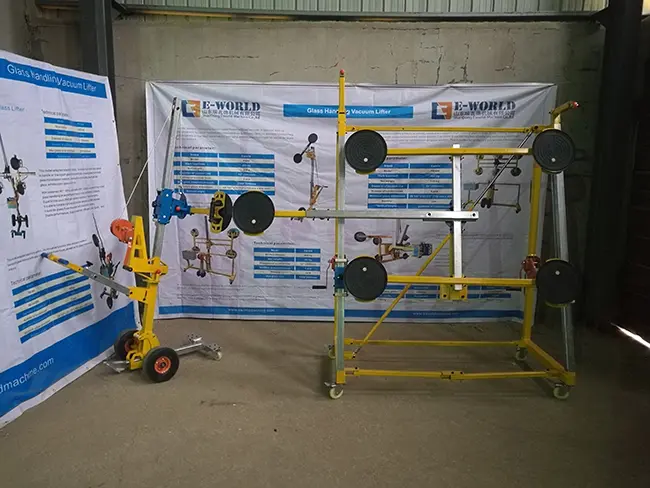

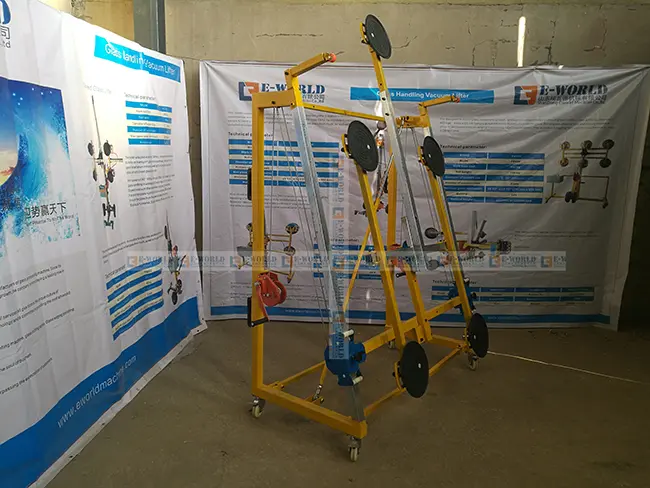

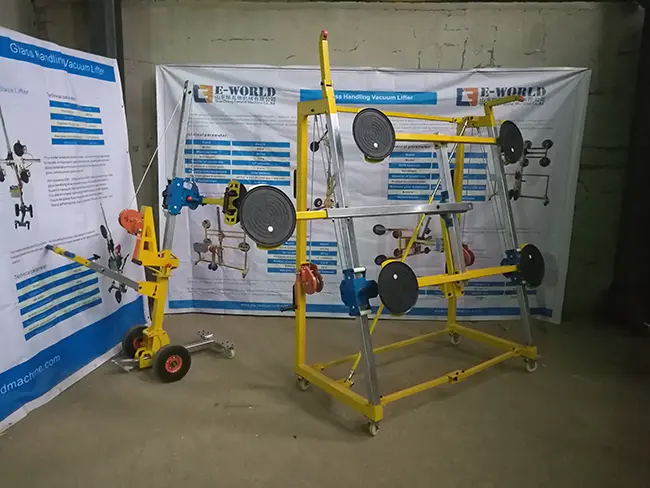

ND400 Vacuum glass handling lifter
use for glass loading, unloading from truck or glazing for bus, train, moving, curved glass and so on.
adapted hand-pump suction pads instead of powered pads. It featured With its convenience with no power needed and detachable parts for easy carry
Can be easily assembled which take no more than 5 minutes with one worker.
It also can be disassembled no more than 5 minutes with one worker
Rotates glass from horizontal to vertical.
Lifts glass weighing up to 400kg(880 lb) (4000mm wide x 3600mm high).
Generally requires only 2 people to transport and install glass safely.
Reduces manpower,Reduces risk of injury.
Allows long heavy sheets of glass to be rotated from horizontal to vertical
Reduces the risk of damaging the glass edges during rotation on site.
Allows long sheets of glass / partitioning to be transported into an office and then rotated inside to be installed by 2 people
Technical parameter
|
Brand |
Eworld |
|
Model |
ND400 |
|
Work load limit |
400 kg |
|
Net weight |
80kg |
|
Diameter of suction cup |
12” (300mm) |
|
Number of suction cups |
4 -5pcs |
|
Rotated angle |
Horizontal to vertical |
