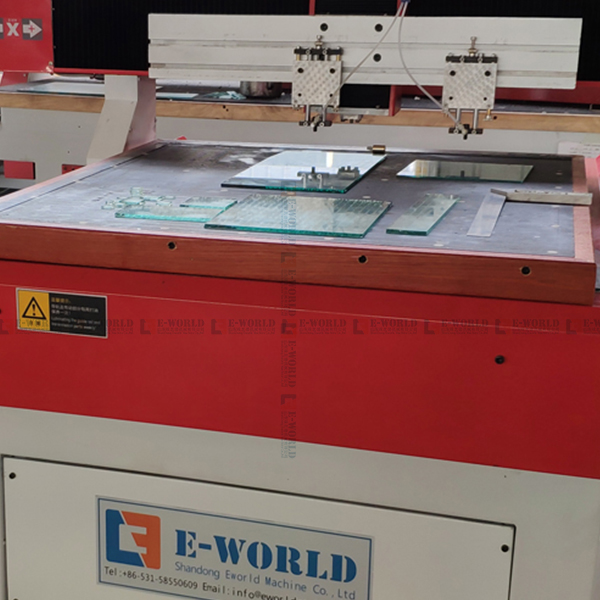

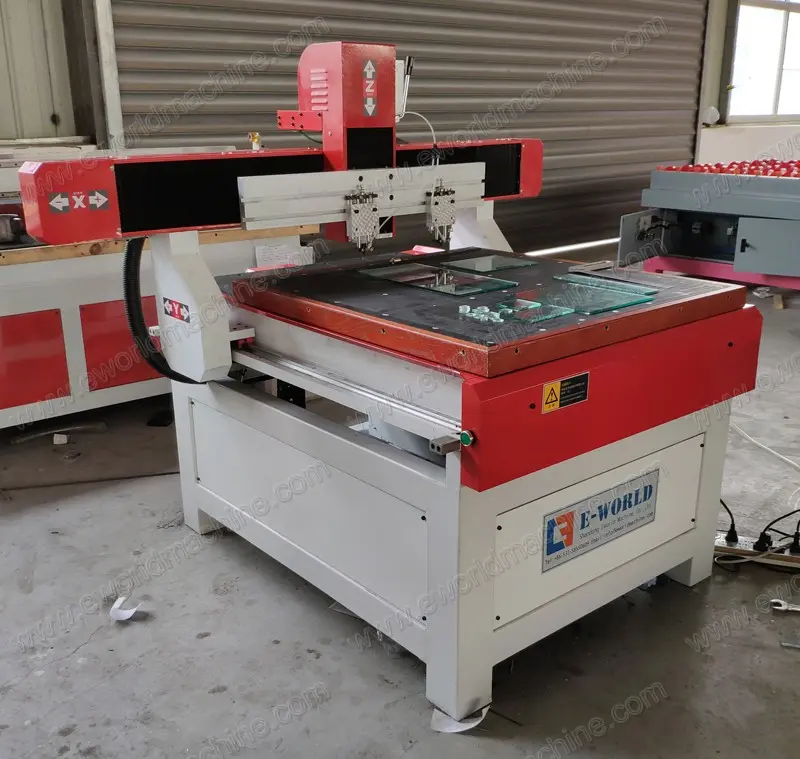

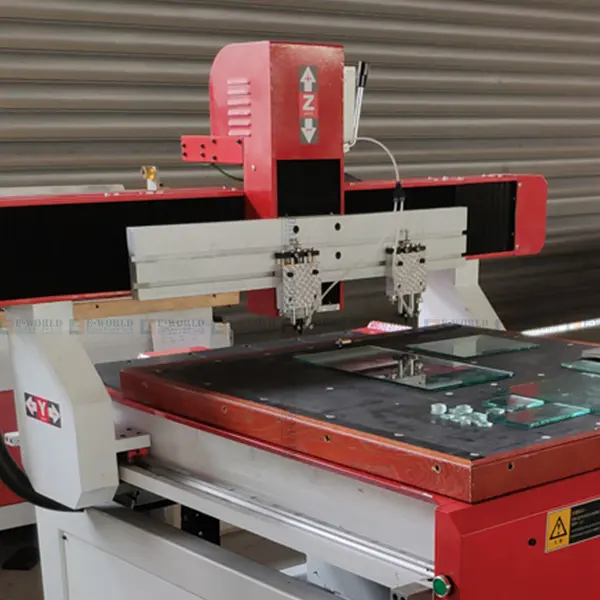

NC8080 Automatic Glass Cutting Machine
video
NC8080 Automatic Glass Cutting Machine
Introduction
1) Work flow: After starting the inputting machine, arms automatically suck glass from the shelf. Under sensor controlled, glass automatically find glass edge in the X and Y directions. After moving glass sheets to designated location, transport glass to the automatic cutting table.Cutter will move to coordinate origin, and automatically start to cut according to the preinstall graph.
2)The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing.
Feature

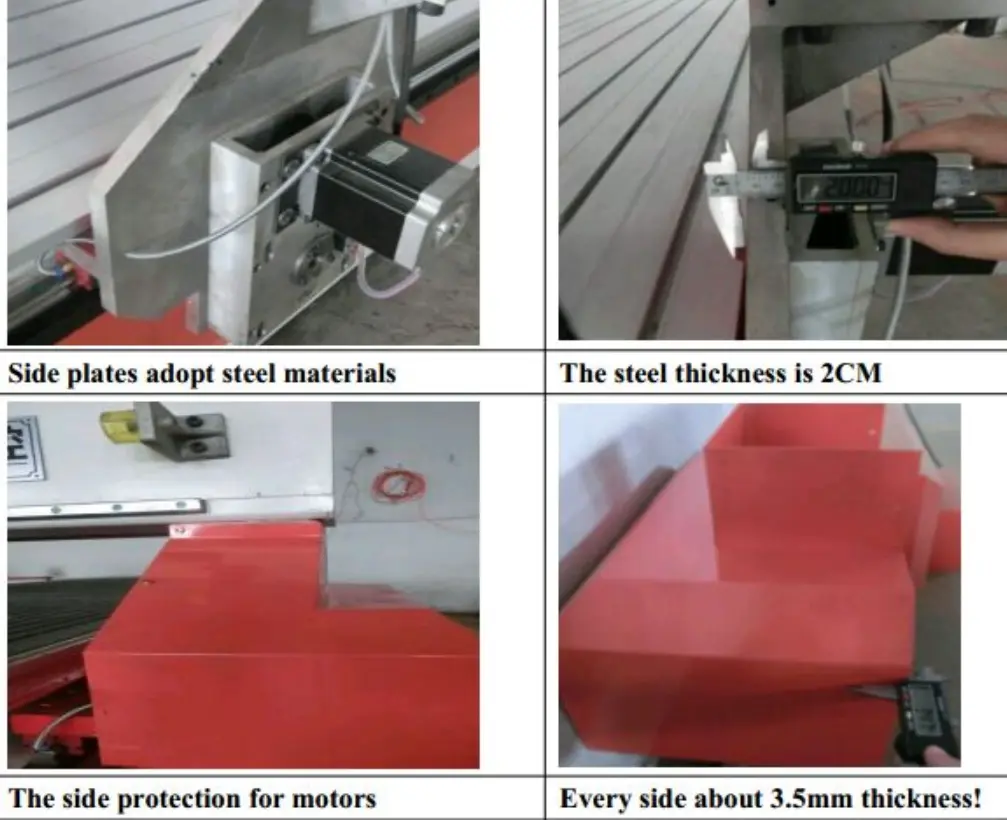

1.Bed using thick wall pipe welding and become, the high temperature tempering treatment, ensure that the deformation is small, rigid good, the intensity is big.
2.The X,Y axis adopt reliable motor drive, selected pairing, ensure the smooth movement.
3.Using high precision level gear rack drive, high precision, speed and strength.
4.Adopts imported linear guide square, high precision, long life.
5.Mechanical and electrical full excellent design, selection of all kinds of electrical accessories, the failure rate drop
6.Software compatibility: compatible type3 / Artcam/Castmate/wentai and so on.Many kinds of CAD/CAM design software.
7.Performance worry about: a breakpoint renewal carving, power off recovery, processing time prediction, and other functions, the real human nature design.

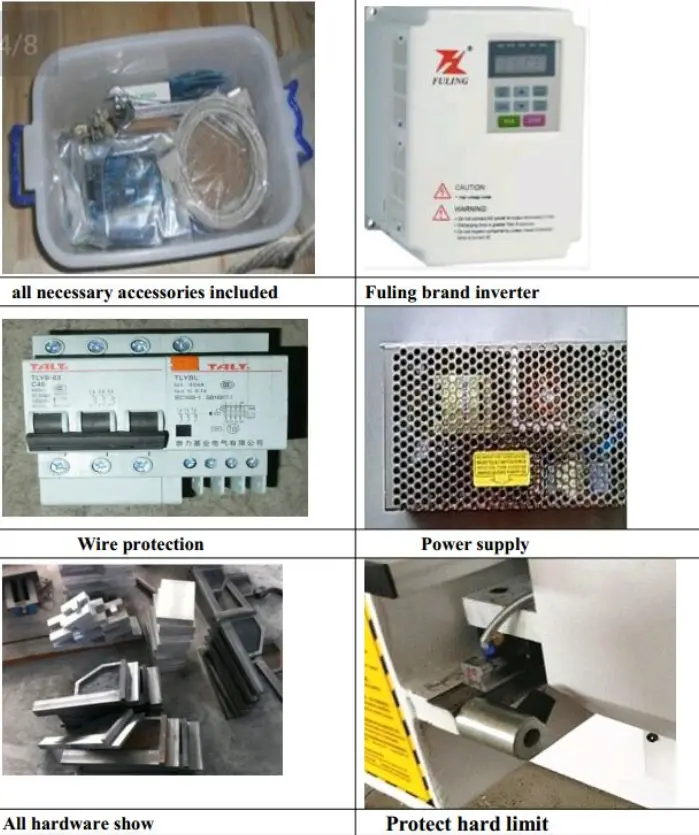

Equipment
1.Software: Ncstudio,Wenta
2. English instruction about manual guide, how to install machine
3. AC stepper motor: 4 pcs( 850 W） from Jiangsu
4.Vacuum: 1kw,Blower: 2KW
5.Cutting head: Auto oil
6.Rack/Guides: reliable brand in china
7.CAD Designed graph and figure,all cutting are fully automatic
8.The tabletop: The smoothness≤±0.2mm/m
|
1. |
Working size |
600*900mm |
|
2. |
Cutting thickness |
1-12mm |
|
3. |
Table size |
700*1000mm |
|
4. |
Cutting speed |
20m/min |
|
5. |
Machine bed |
Steel lathe bed |
|
6. |
X-Y-Z movement |
Imported gear rack |
|
7. |
Working accuracy |
≤±0.15mm/m |
|
8. |
Repositioning accuracy |
≤±0.15mm/m |
|
9. |
Driver motors |
stepper |
|
10. |
Working voltage |
AC 220V |
|
11. |
Total power |
6 KW |
|
12. |
Command code |
G code*uoo,*mmg,*plt |
|
13. |
Software |
Artcam,Wenta |
|
14. |
Computer system |
Windows 98/2000/XP/Win7 |
|
15. |
control |
Nc Studio |
|
16. |
Oil lubrication system |
Automatic |
|
17. |
Table surface |
bakelite plate |
|
18. |
Packing size |
1470*1370*1780mm |
|
19. |
Weight |
500KGS |

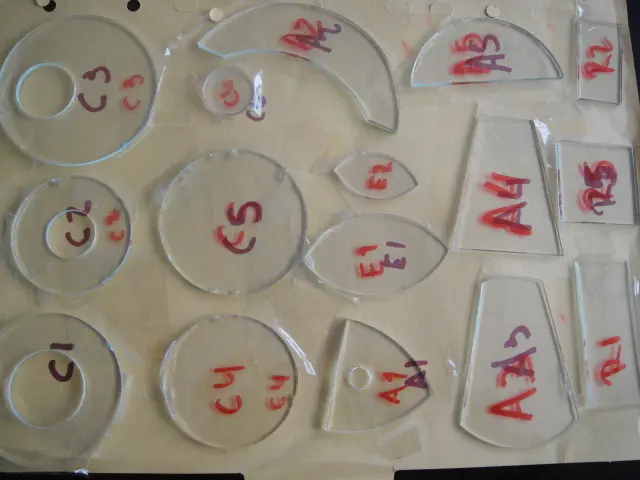

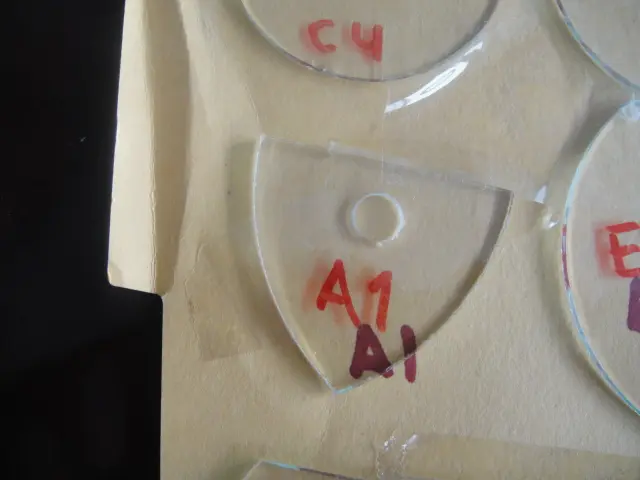

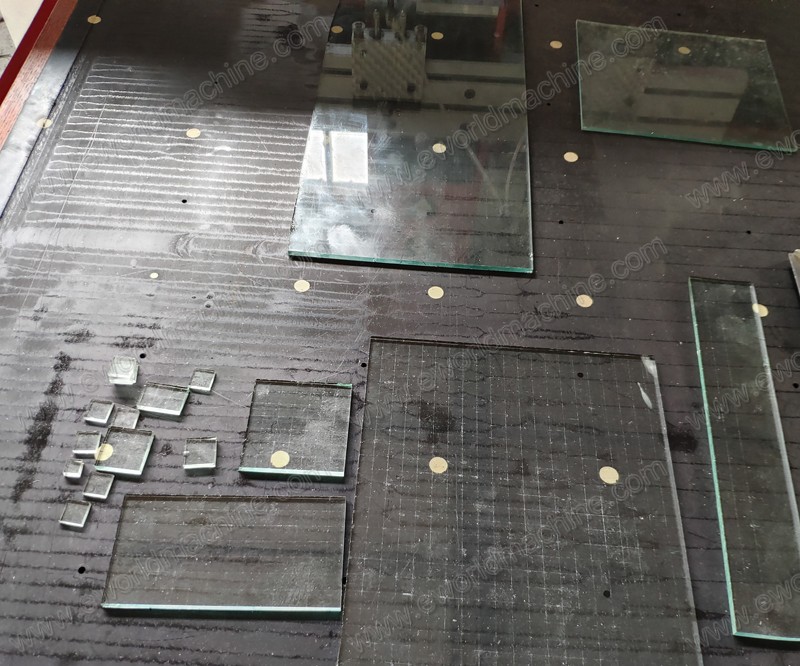

Sample gallery
Price:USD4,300 FOB China main port.
Delivery time: Within 20 days after receiving the down payment.
Payment:
30% of total send by T/T as downpayment ,70% before delivery by T/T.
