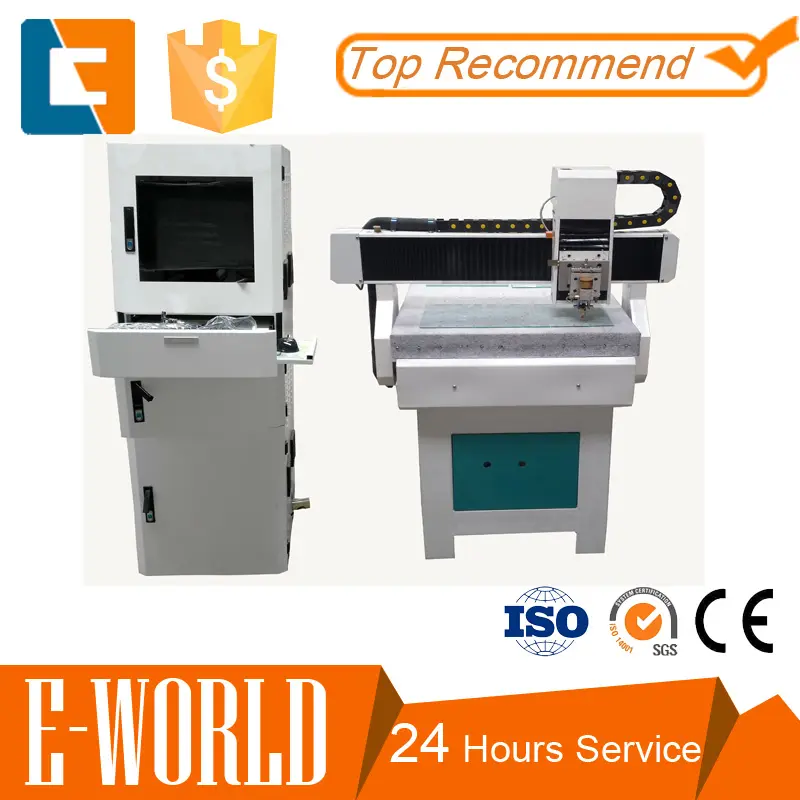

NC6090 Small size automatic glass cutting machine

Price : USD 4500-6000

Packing terms: suitable for shipment by sea

Terms of payment: 30% T/T deposit,the balance should be made before shipment

Delivery time: within 20-25 days after receipt of the buyer’s 30% deposit.

Guarantee: one whole year after installation

product details

product Tags

video

Basic Info

Model NO.:	NC6090
Price
Certification:	CE
Type:
Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Western Europe

Additional Info

Trademark:	EWORLD
Packing:	Packed in Wooden Case, Seaworthy Package
HS Code:	8464201000
Production Capacity:	10 Sets/ Month

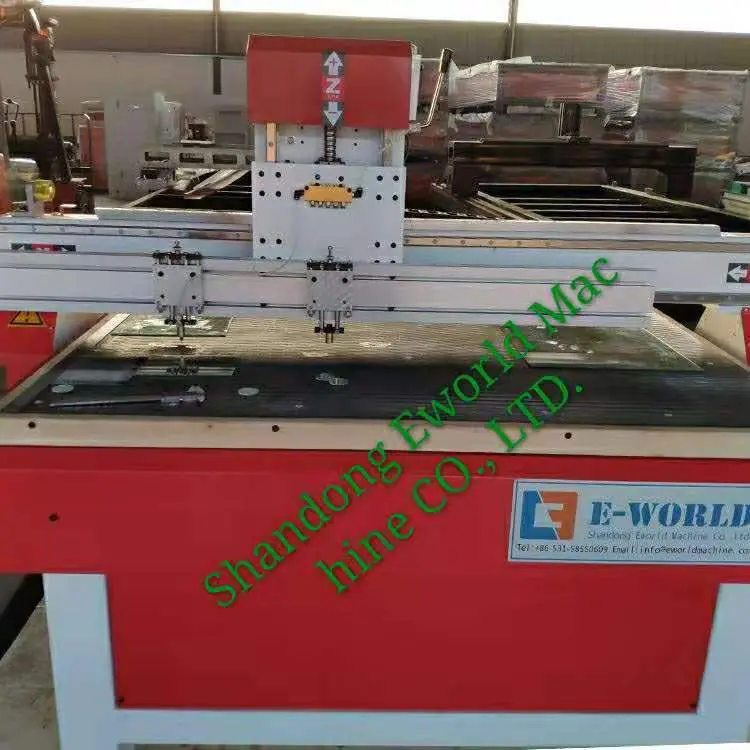

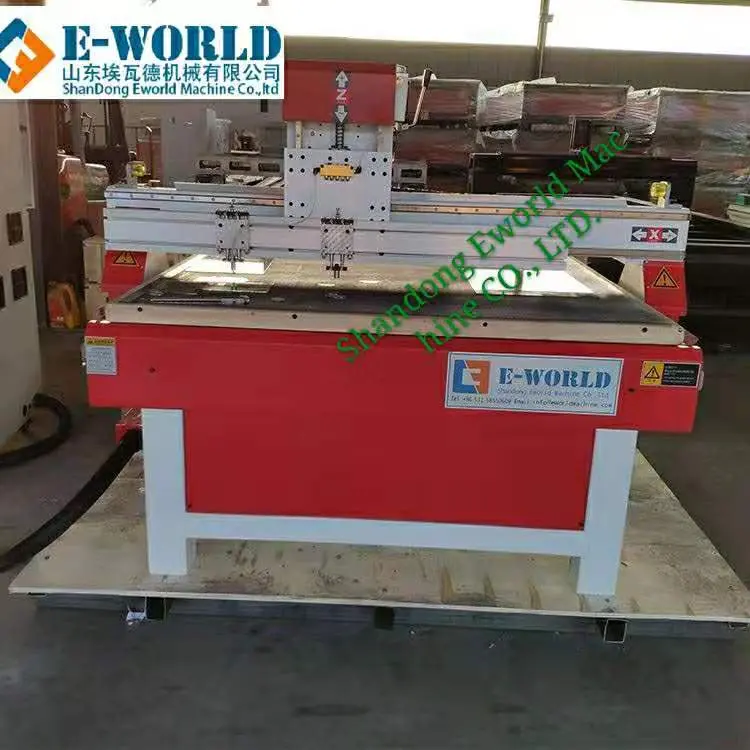

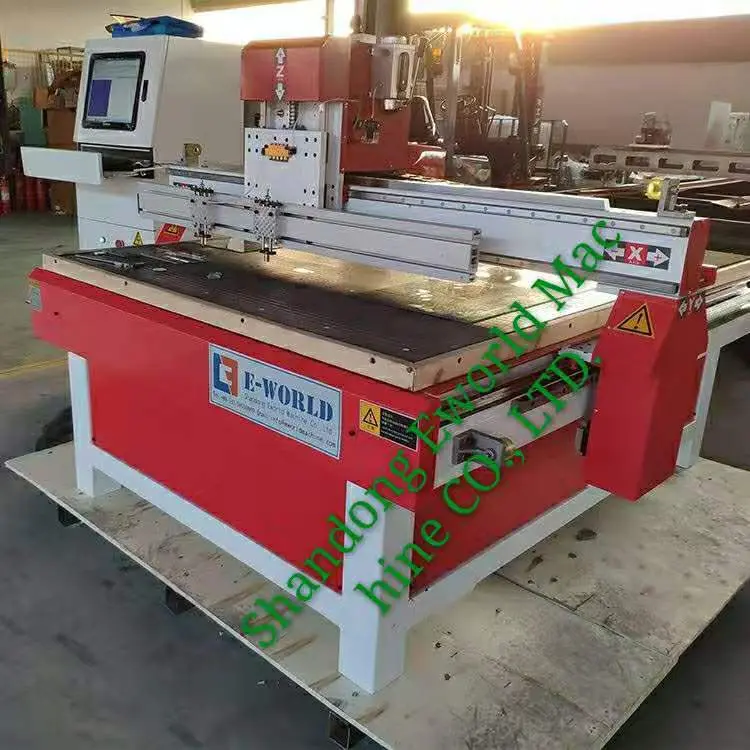

NC 6090 Automatic Glass Cutting Machine

Introduction

1) Work flow: After starting the inputting machine, arms automatically suck glass from the shelf. Under sensor controlled, glass automatically find glass edge in the X and Y directions. After moving glass sheets to designated location, transport glass to the automatic cutting table.Cutter will move to coordinate origin, and automatically start to cut according to the preinstall graph.

2)The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing.

Feature

1.Bed using thick wall pipe welding and become, the high temperature tempering treatment, ensure that the deformation is small, rigid good, the intensity is big.

2.The X,Y axis adopt reliable motor drive, selected pairing, ensure the smooth movement.

3.Using high precision level gear rack drive, high precision, speed and strength.

4.Adopts imported linear guide square, high precision, long life.

5.Mechanical and electrical full excellent design, selection of all kinds of electrical accessories, the failure rate drop

6.Software compatibility: compatible type3 / Artcam/Castmate/wentai and so on.Many kinds of CAD/CAM design software.

7.Performance worry about: a breakpoint renewal carving, power off recovery, processing time prediction, and other functions, the real human nature design.

Equipment

1.Software: Ncstudio,Wenta

2. English instruction about manual guide, how to install machine

3. AC stepper motor: 4 pcs( 850 W） from Jiangsu

4.Vacuum: 1kw,Blower: 2KW

5.Cutting head: Auto oil

6.Rack/Guides: reliable brand in china

7.CAD Designed graph and figure,all cutting are fully automatic

8.The tabletop: The smoothness≤±0.2mm/m

1.	Working size	600*900mm
2.	Cutting thickness	1-12mm
3.	Table size	700*1000mm
4.	Cutting speed	20m/min
5.	Machine bed	Steel lathe bed
6.	X-Y-Z movement	Imported gear rack
7.	Working accuracy	≤±0.15mm/m
8.	Repositioning accuracy	≤±0.15mm/m
9.	Driver motors	stepper
10.	Working voltage	AC 220V
11.	Total power	6 KW
12.	Command code	G codeuoo,mmg,*plt
13.	Software	Artcam,Wenta
14.	Computer system	Windows 98/2000/XP/Win7
15.	control	Nc Studio
16.	Oil lubrication system	Automatic
17.	Table surface	bakelite plate
18.	Packing size	147013701780mm
19.	Weight	500KGS
