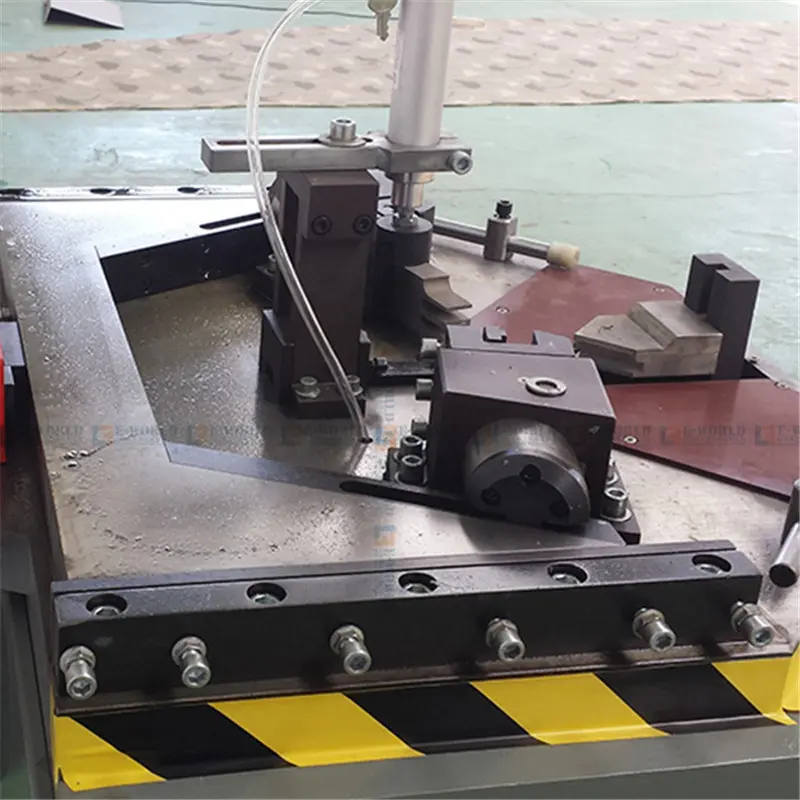

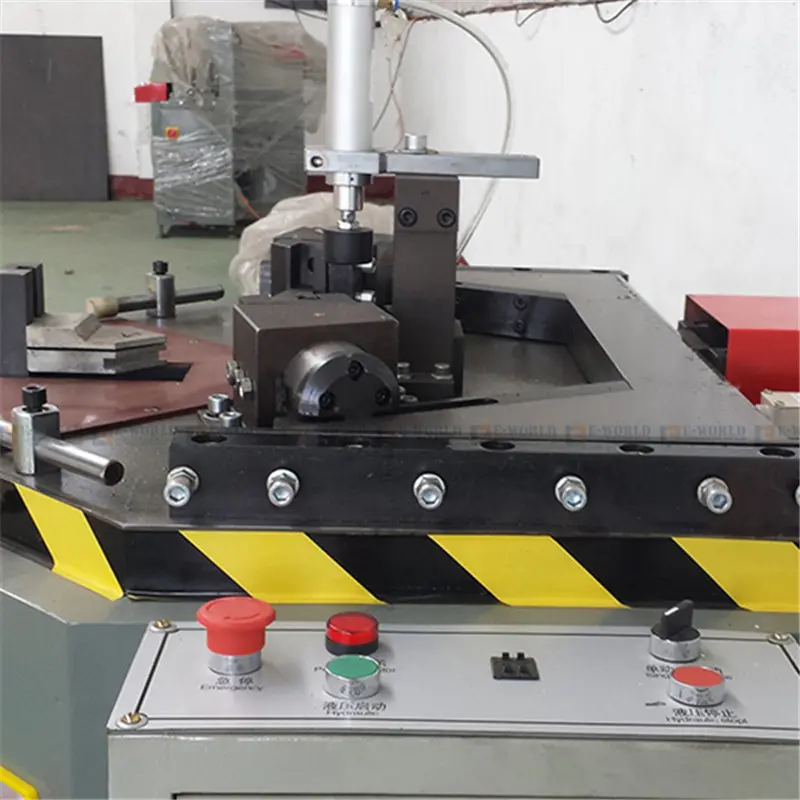

LMD-120 Aluminum Corner Combining Machine

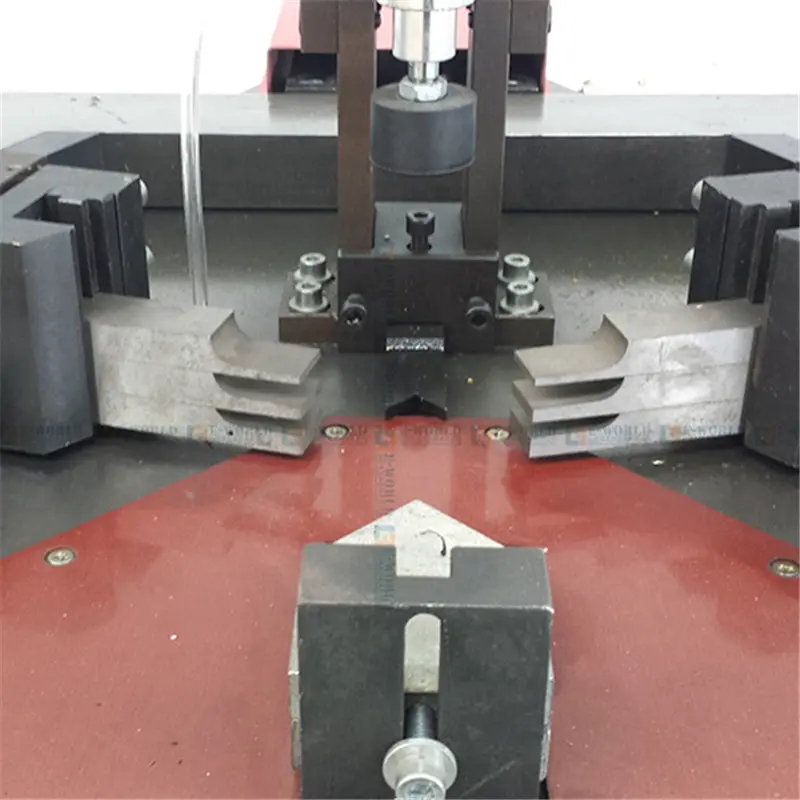

The machine is used for production line of hi-grade alu-alloy doors and windows. mainly used for extrusion and connection of 90º seam casement window with angle jointing operation, place an angle-alu in cavities of two driven striking blocks punch towards the flute of angle-alu, Extruding the seam of two profiles makes strength, efficiency and precision of the connection higher than using any means for connection.

product details

product Tags

Equipment features

This machine is used for combining the aluminum profile together to be a whole frame after processed.

We also have double head corner combining machine, and four corner combining machine, if you need, I can also list in the quotation, but generally, from begining production, use the single head type is enough for your Aluminum window door production.

Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.

We have in store, if you need, we can ship in short time for you.

E-LD0222-Automatic-Glass-Drilling-Machine05(12)61q

0102

Technical parameters

Model number	LMD-120
Voltage	380V 50Hz
Motor power	1.5 Kw
Air consumption	2L/min
Most pressure	16 Mpa
Air consumption pressure	0.5-0.8 Mpa
Contour dimension(L×W×H)	830×1000×1200mm
Weight	380Kg

Quick Details

Place of Origin: Shandong, China (Mainland)

Model Number: LMD-120

After-sales Service Provided: Engineers available to service machinery overseas

application: Aluminum doors and windows making

usage: aluminum profile corner combining

certificate: CE&ISO

Button and contact: Schneider

Machine colour: any colour or as your required

Air consumption: 2L/min

Most pressure: 16 Mpa

Air consumption pressure: 0.5-0.8 Mpa

Motor power: 1.5 Kw

Processed profile: Aluminum profile

Specifications

Aluminum Corner Crimping Machine

1. Extrusion&connection of 90 angle seam casement window

2. Combine alu profile

Packaging & Delivery

Packaging Details:	standard international PLYwood packing
Delivery Detail:	1-3 days after get deposit(we have in store)
