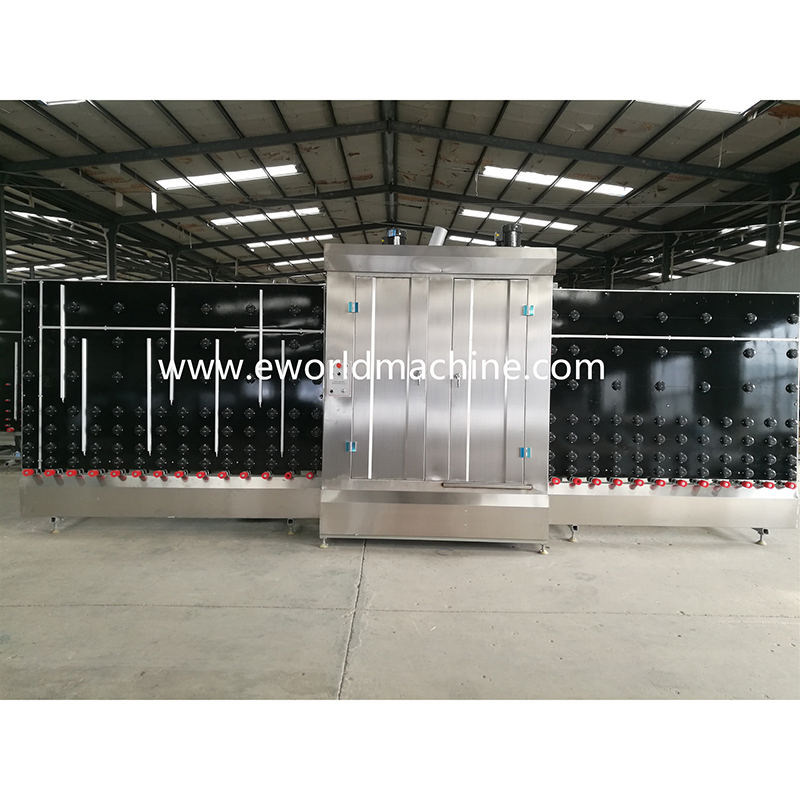

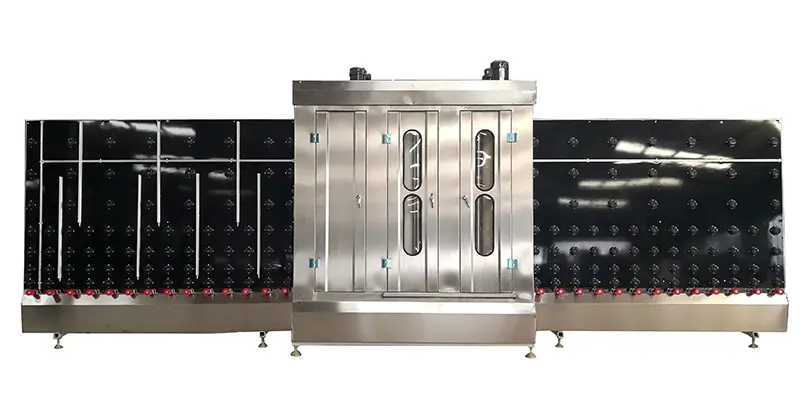

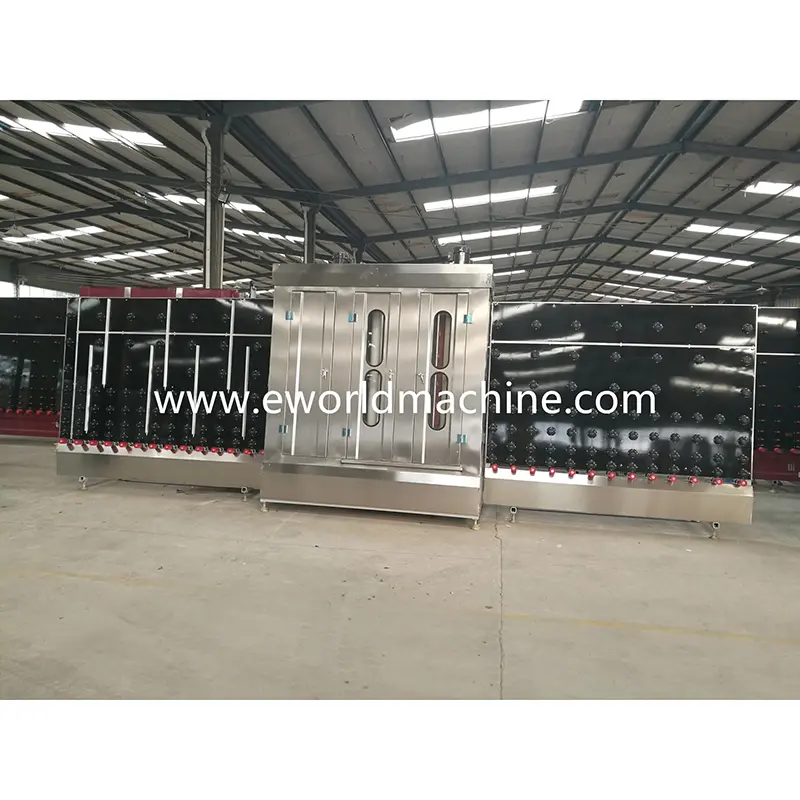

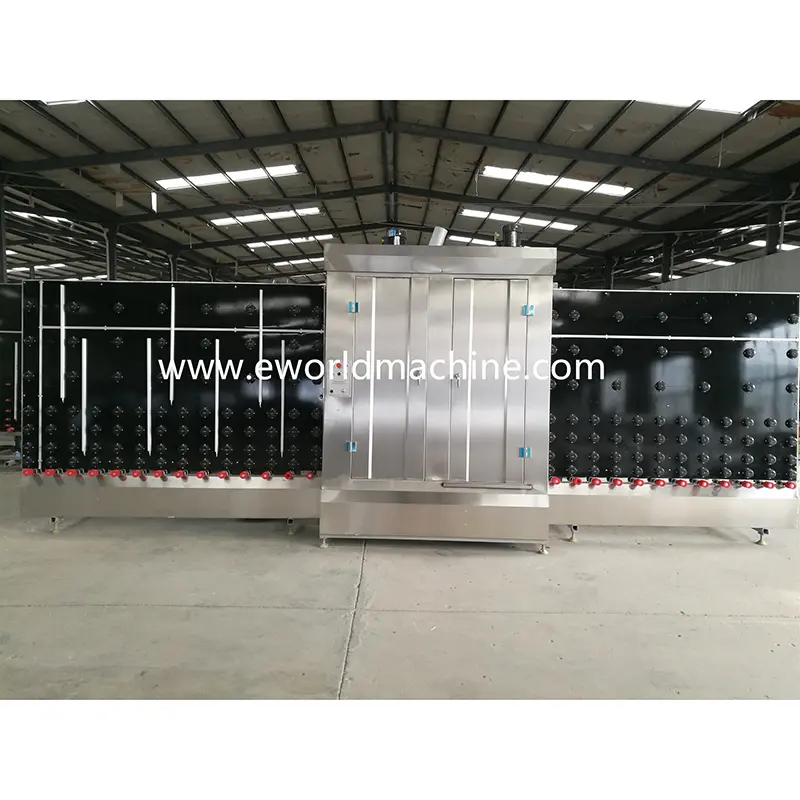

High standard open top E-LD1600 Vertical glass washer
video
Technical parameters
01 Lead in section 02 washing and drying section 03 outlet/inspecting section
Working size :1600*2000mmWashing thickness:3-19 mm
Brusher: 3 pcs
Hot knife: 2 pair
Sponge roller: 1 pair
Feeding section:2200*700*2200mm(Length*Width*Height)
Washing and Drying section:1800*1200*2600mm(L*W*H)
Outlet section:2200*700*2200mm(L*W*H)
Can wash LOW-E Glass/Multi-coated glass
Open top: Yes
Feature
It is painted by an electrostatic paint for protection against a rust and scratchs.
Conic moving gears are made from a special steel alloy.
Nuts corrosion-proof, apertures for nuts aluminium.
A working direction of action with left on the right party.
Brushes from above and from below have adjustment for approach.
The electro system corresponds to safety rules.
Heating up plates and water tank from stainless steel.
Special brushes for reflecting glasses.
Adjustment of speed of a running tape.
Covers stainless steel windows.
LOW-E option
Power: 380V 50HZ 3 phase or 3 Phase,220v ,60hz
CE CERTIFICATE for European Union
Component list
|
Electricity |
CHINT/DELIXI |
|
Switch button |
CHINT/DELIXI |
|
Photoelectric switch |
Omron,Japan |
|
AC contactor |
Schnieder |
|
Breaker |
Schnieder |
|
Inverter |
DELTA |
|
Blower |
Jiangsu |
|
PU Pipe |
Japan |
|
Brusher |
Anhui |
|
Roller |
Anhui |
|
Water pump |
Shanghai |
|
Motors |
Chengbang(Taiwai) |
|
Machining processing（Frame,welding,mould,painting.,etc） |
EWORLD factory |
Note
Packing terms； If it is 1*20’ container,put all machine inside the container with wire cable for fixing.
Terms of payment: 30% T/T deposit,the balance should be made before shipment,Can accept L/C payment terms
Lead time: within 30 days after receipt of the buyer’s 30% deposit.
Guarantee: one whole year after installation
Installation and commissioning: Seller will take installation and commissioning. Buyer should pay following fee：1.round transportation 2.Food and hotel
