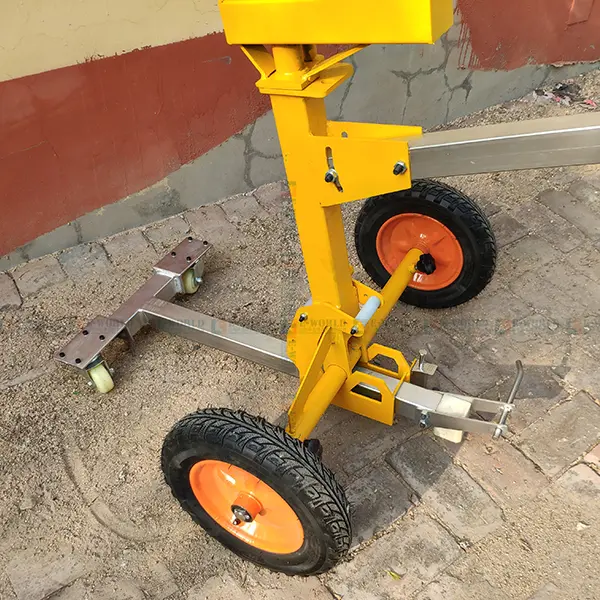

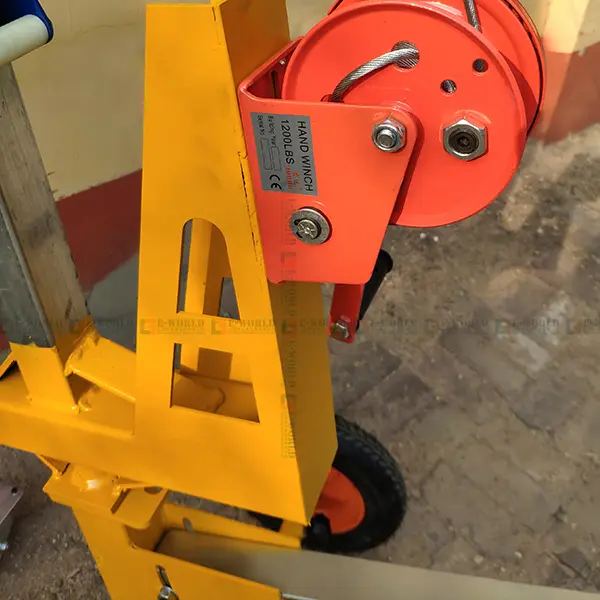

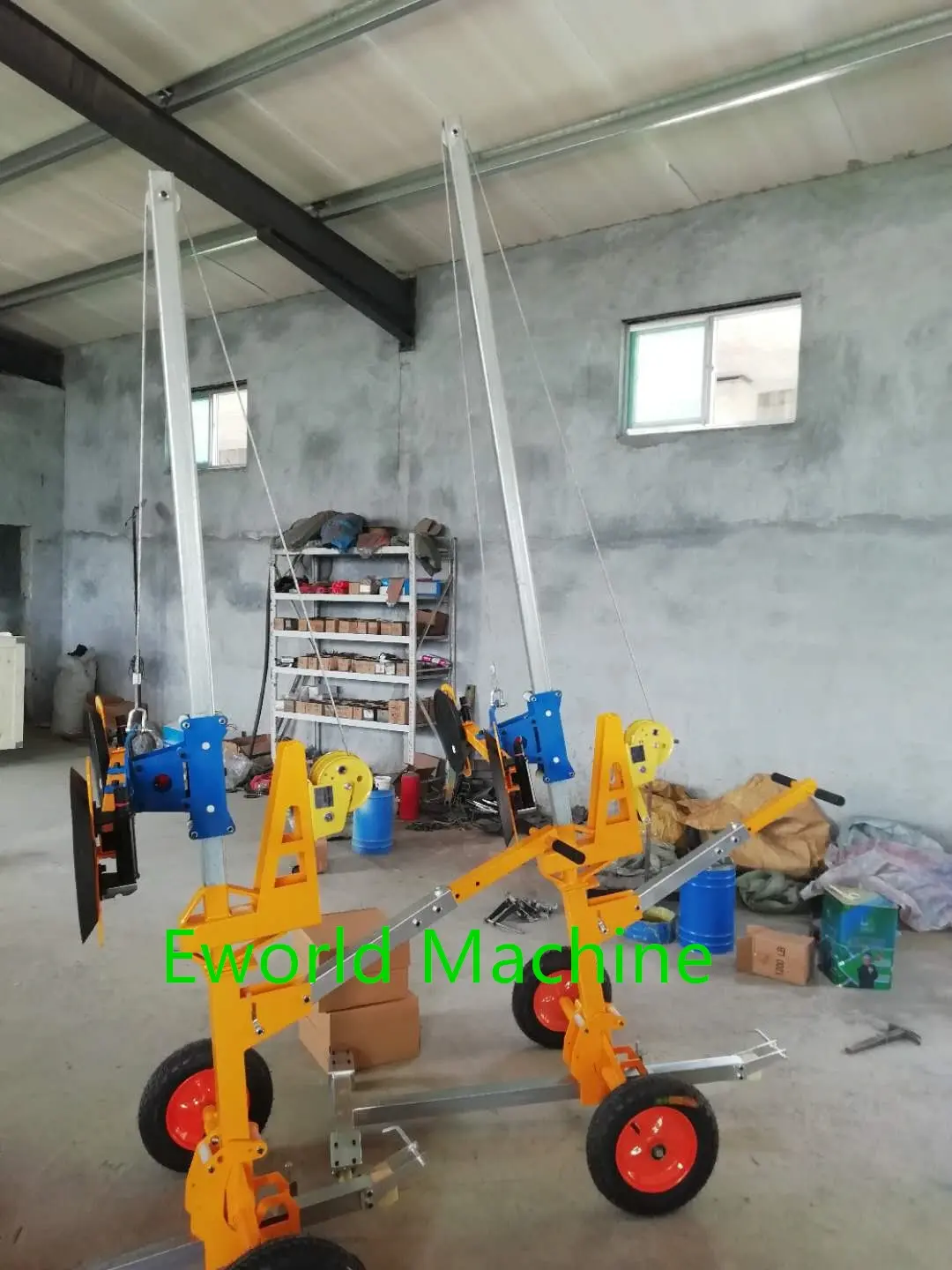

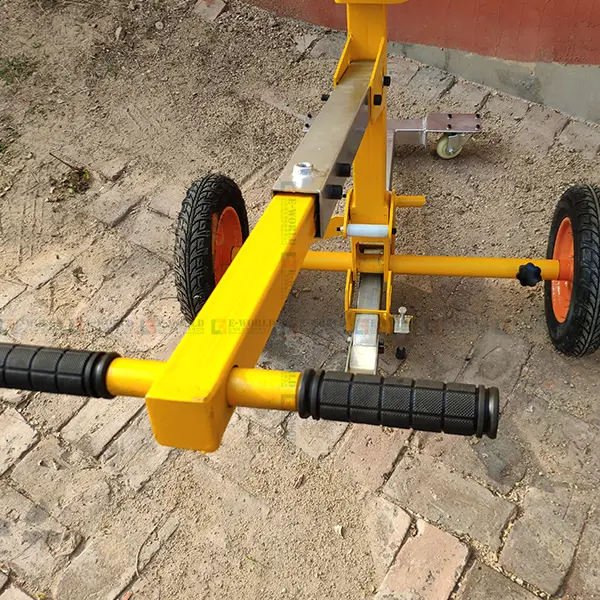

Express Vacuum glass lifter
use for glass loading, unloading from truck or glazing for bus, train,moving and so on.
With powered 90°tilting, continuous 360°rotation,suited for big-sized glass handling in workshop and heavy-duty installation outdoors.
Superior vacuum lifter will satisfies customers' requirements.
It is able to rotate right/left and incline vertical up to 90 degrees.
Technical parameter
|
Brand |
Eworld |
|
Model |
P200 |
|
Work load limit |
200 kg |
|
Net weight |
55kg |
|

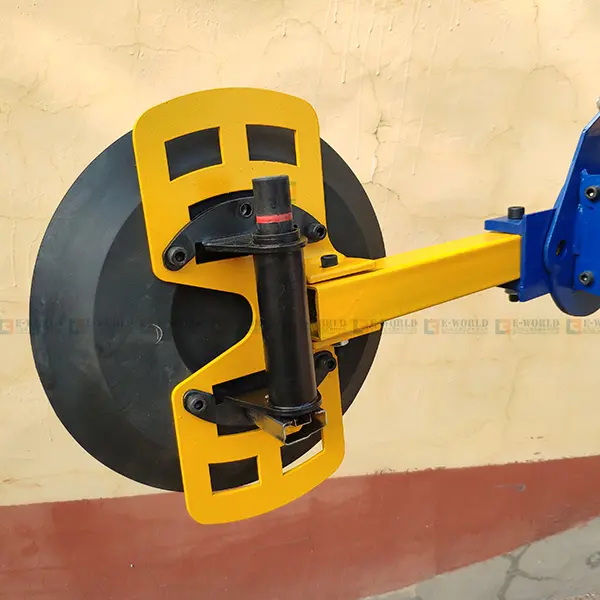

Diameter of suction cup |
12” (300mm) |
|
Number of suction cups |
2 pcs |
|
Max glass size(recommend) |
2000*3000mm |
|
Minimum glass dimension |
29 1/2" x 33 1/2" (750 mm x 850 mm) |
|
Rotated angle |
Left: 90o, Right: 90o |
|
Inclined angle |
90o |
