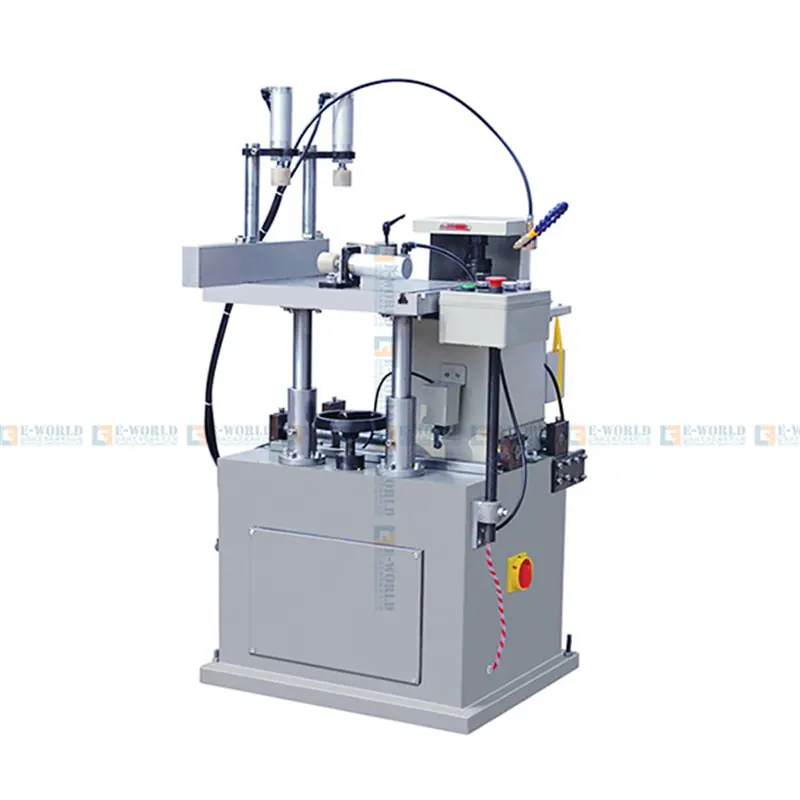

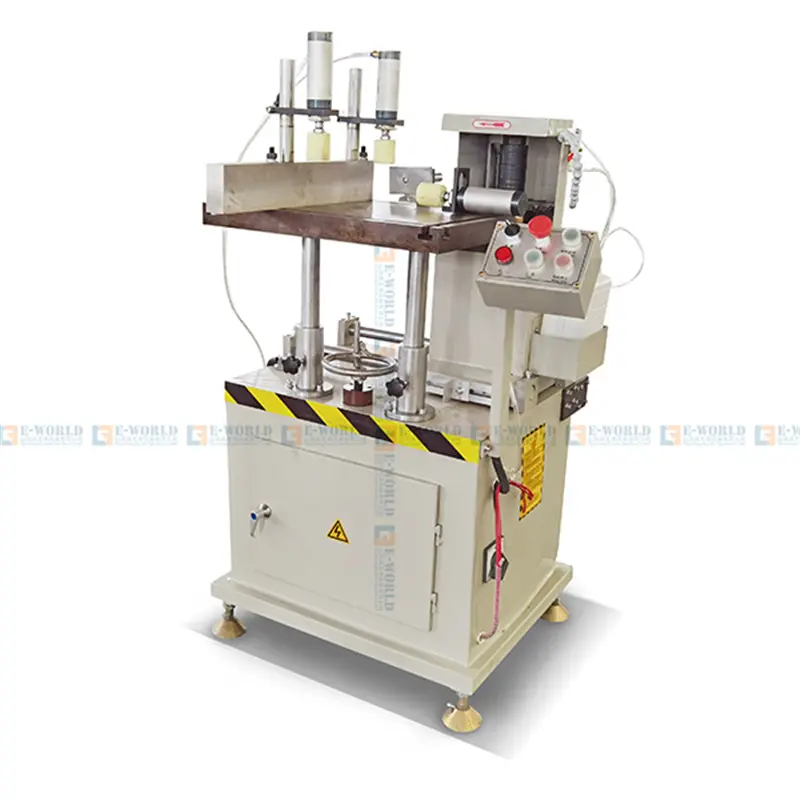

End Milling Machine for Aluminum and PVC Window Door Making (USD 1,100$)

1). The machine is the special equipment used for PVC and Aluminum profile milling, it can be used for special-shaped screw-connected Aluminum and PVC transom end milling, as well end milling of other assembling technology.

2). By changing cutters, it can mill different sections, it is suitable for the PVC and Aluminum window and door batch proessing.

    Contact us
    product details
    product Tags

    Product Description

    1). The machine is the special equipment used for PVC and Aluminum profile milling, it can be used for special-shaped screw-connected Aluminum and PVC transom end milling, as well end milling of other assembling technology.
    2). By changing cutters, it can mill different sections, it is suitable for the PVC and Aluminum window and door batch proessing.
    3). You make PVC or Aluminum window dor, this end milling machine is necessary for both production, this machine is used to mill the mullion proifle. This machine is iportant to make the window mullion(window middle support).
    4). Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
    End Milling Machine for Aluminum and PVC Window Door Making (USD 1,100$)01ia5
    End Milling Machine for Aluminum and PVC Window Door Making (USD 1,100$)02d9o
    0102

    Technical parameters

    Model number LXD-200
    Power supply 380V 50Hz
    Motor power 1.5kw
    Motor rotational speed 2800 r/min
    Operation air pressure 0.4 ~ 0.8Mpa
    Milling cutter diameter Ø110 ~ Ø200 mm
    Max. processing hole size 70×45×200mm
    Contour dimension(L×W×H) 850×740×1280mm
    Machine weight(about) 150kg

    Technical parameters

    Condition: New
    Place of Origin: Shandong, China (Mainland)
    Model Number: LXD-200
    Type: Horizontal
    CNC or Not: Normal
    Voltage: 380V 50Hz
    Power(W): 1.5KW
    Dimension(L*W*H): 850X740X1280mm
    Weight: 150kg
    Certification: CE&ISO
    Warranty: 2 years
    After-sales Service Provided: Engineers available to service machinery overseas
    Application: window door frame processing and production
    Machine type: milling machine
    Certificate: CE&ISO
    Operation air pressure: 0.4 ~ 0.8Mpa
    Milling cutter diameter: 110 ~ 200 mm
    Max. processing hole size: 70*45*200mm
    Processing profile: Aluminum&PVC profile
    Condition: new
