E-LD2000 Vertical Glass Washing and Drying Machine Quotation Sheet

Max width: 2000mm
Washing thickness: 3-12 mm
Brush: 3 pairs(the front 3pcs are soft brushes for low-e glass,and the back 3pcs are hard brushes)
Hot knife: 1 pair
Sponge roller: 1 pair
Total power: 22KW
Feeding section: 2500*700*2200mm(Length*Width*Height)
Washing and Drying section: 2200*1200*2900mm(L*W*H)

    Contact us
    product details
    product Tags

    INTRODUCTION

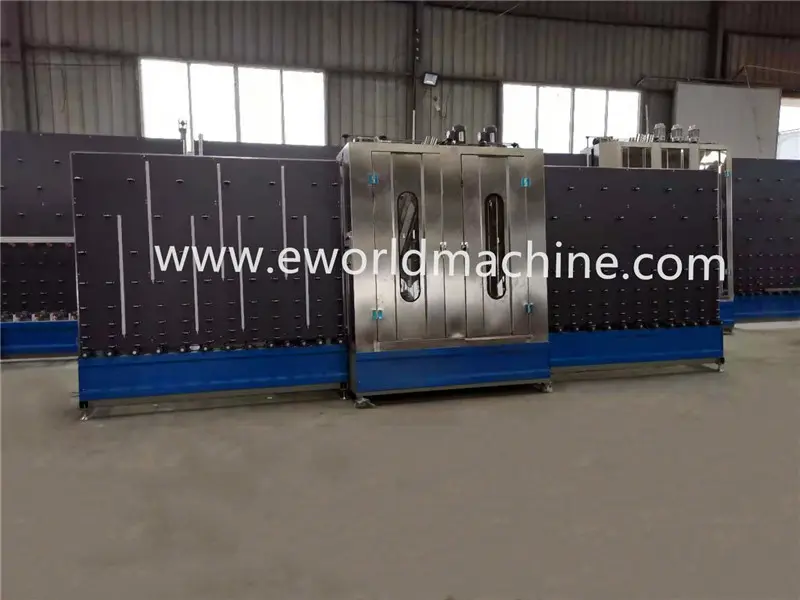

    E-LD2000 Vertical Glass Washing and Drying Machine07maq
    01
    7 Jan 2019
    01 Lead in section
    02 washing and drying section
    03 outlet/inspecting section

    TECHNICAL PARAMETER

    Max width: 2000mm
    Washing thickness: 3-12 mm
    Brush: 3 pairs(the front 3pcs are soft brushes for low-e glass, and the back 3pcs are hard brushes)
    Hot knife: 1 pair
    Sponge roller: 1 pair
    Total power: 22KW
    Feeding section: 2500* 700* 2200mm (Length* Width* Height)
    Washing and Drying section: 2200* 1200* 2900mm (L* W* H)
    Outlet section: 2800* 700* 2200mm (L* W* H)
    Can wash LOW-E Glass/Multi-coated glass
    When cleaning Low-e glass, the surface of the coating faces the soft brush

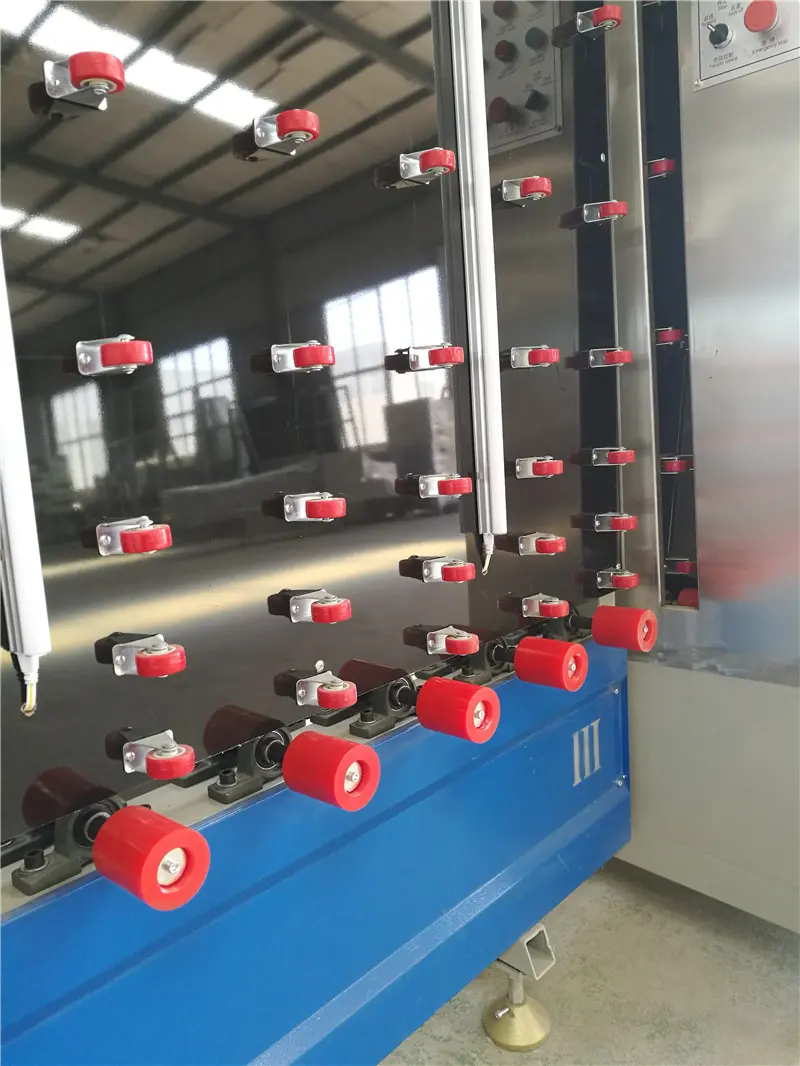

    E-LD2000 Vertical Glass Washing and Drying Machine05tqt

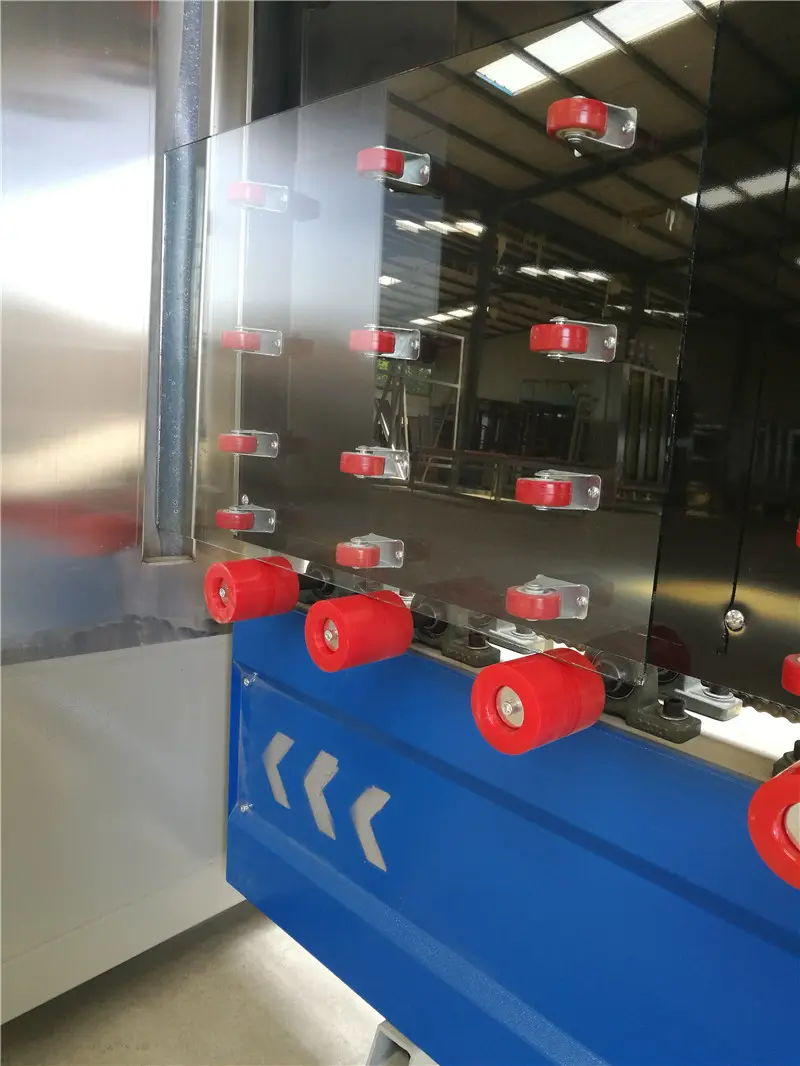

    E-LD2000 Vertical Glass Washing and Drying Machine06oug
    0102

    Feature

    ► It is painted by an electrostatic paint for protection against a rust and scratches.
    ► Conic moving gears are made from a special steel alloy.
    ► Nuts corrosion-proof, apertures for nuts aluminium.
    ► A working direction of action with left on the right party.
    ► Brushes from above and from below have adjustment for approach.
    ► The electric system corresponds to safety rules.
    ► Heating up plates and water tank from stainless steel.
    ► Special brushes for reflecting glasses.
    ► Adjustment of speed of a running tape.
    ► Covers stainless steel windows.
    ► LOW-E option
    ► Power: 380V 50HZ 3 phase or 3 Phase, 220v ,60hz
    ► CE CERTIFICATE for European Union

    Component list

    Electricity CHINT/DELIXI
    Switch button CHINT/DELIXI
    Photoelectric switch Omron,Japan
    AC contactor Schnieder
    Breaker Schnieder
    Inverter DELTA
    Blower Jiangsu
    PU Pipe Japan
    Brusher Anhui
    Roller Anhui
    Water pump Shanghai
    Motors CHENGBANG(TAIWAN)
    Machining processing (Frame,welding,mould,painting.,etc) EWORLD factory

    Packing & Shipping

    E-LD2000 Vertical Glass Washing and Drying Machine08ke0
    E-LD2000 Vertical Glass Washing and Drying Machine09o4w
