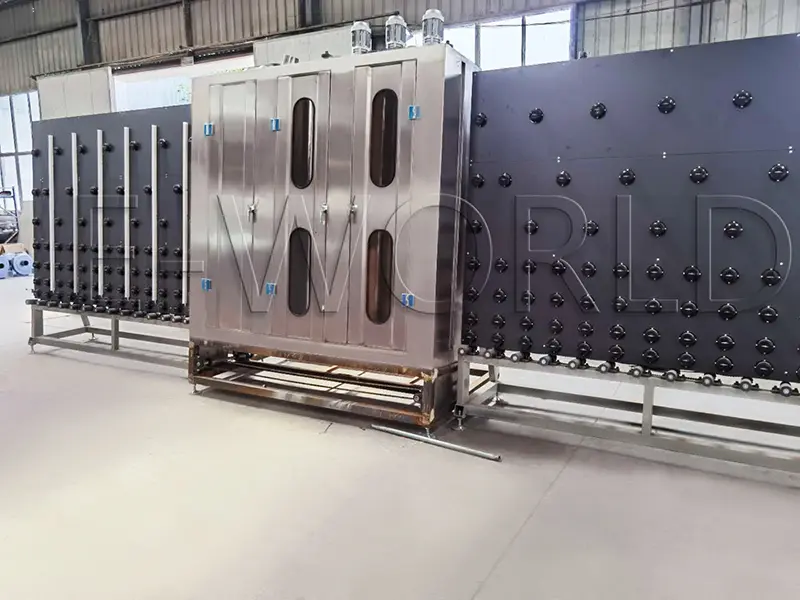

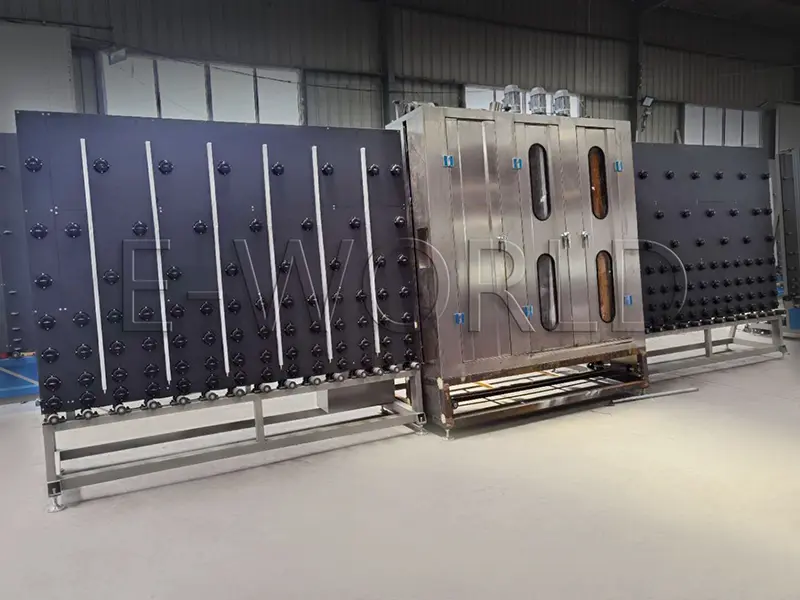

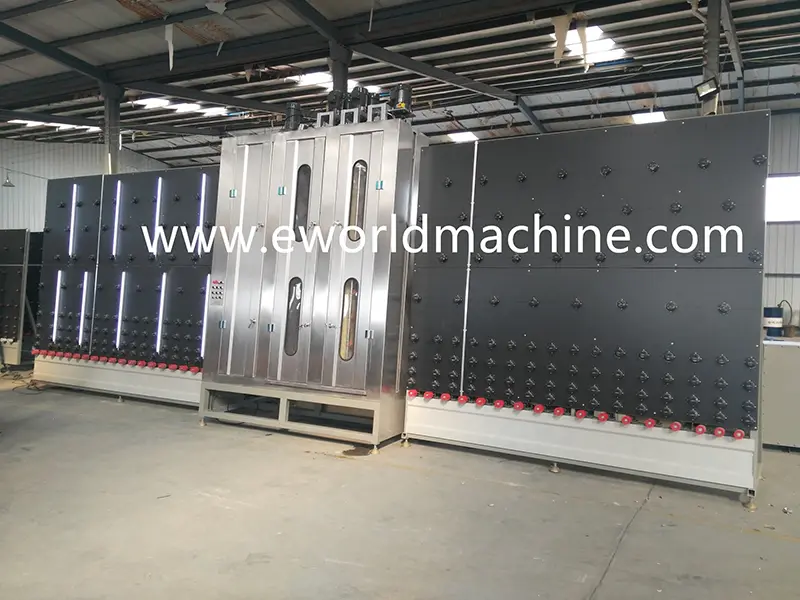

E-LD1800 High Standard Vertical glass washing machine
video
Technical parameters
Working size :1800*2500mm
Washing thickness:3-19 mm（Automatic changing）
Brusher: 6 pcs
Hot knife: 2 pair
Sponge roller: 1 pair
Feeding section:2500*700*2200mm(Length*Width*Height)
Washing and Drying section:2100*1200*2600mm(L*W*H)
Outlet section:2500*700*2200mm(L*W*H)
Can wash LOW-E Glass/Multi-coated glass
Blower protection cabinet: Yes
Feature
● It is painted by an electrostatic paint for protection against a rust and scratchs.
● Conic moving gears are made from a special steel alloy.
● Nuts corrosion-proof, apertures for nuts aluminium.
● A working direction of action with left on the right party.

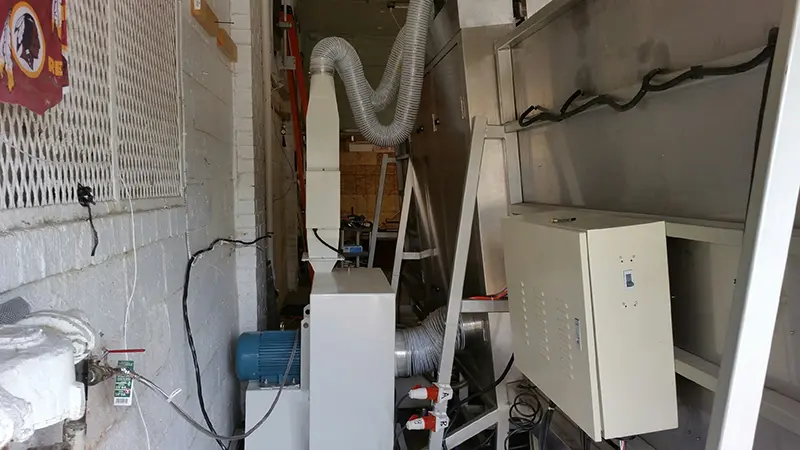

● Blower fan with protection cabinet for sound insulation or dust free air extrusion.

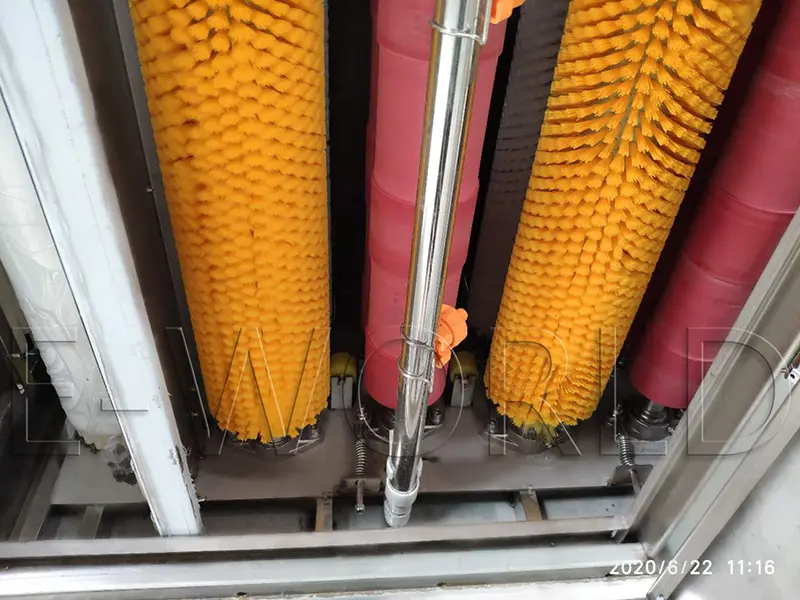

● Brushes from above and from below have adjustment for approach.
● The electro system corresponds to safety rules.
● The front cover of washing and drying section is stainless steel,Entrance and exit conveyor with stainless steel
● The machine with stainless steel spring which can aromatically adjust glass thickness 3-19mm.
● Heating up plates and water tank from stainless steel.
● Special brushes for reflecting glasses.
● Adjustment of speed of a running tape.
● Covers with glass and stainless steel windows.
● LOW-E option
● Power: 3 Phase,220v ,60hz or 3 phase,380V,50hz
● CE CERTIFICATE for European Union
Component list
|
Electricity |
CHINT/DELIXI |
|
Switch button |
CHINT/DELIXI |
|
Photoelectric switch |
Omron,Japan |
|
AC contactor |
Schnieder |
|
Breaker |
Schnieder |
|
Inverter |
DELTA |
|
Blower |
Jiangsu |
|
PU Pipe |
Japan |
|
Brusher |
Anhui |
|
Roller |
Anhui |
|
Water pump |
Shanghai |
|
Motors |
Chengbang |
|
Machining processing（Frame,welding,mould,painting.,etc） |
EWORLD factory |
Note
Packing terms； If it is 1*20’ container,put all machine inside the container with wire cable for fixing.
Terms of payment: 30% T/T deposit,the balance should be made before shipment,Can accept L/C payment terms
Lead time: within 30 days after receipt of the buyer’s 30% deposit.
Guarantee: one whole year after installation
Installation and commissioning: Seller will take installation and commissioning. Buyer should pay following fee：1.round transportation 2.Food and hotel
