E-LD1600G Open top Vertical glass washing machine
video
Technical parameters
Working size :1600*2000mm
Washing thickness:3-12 mm
Brusher: 4 pcs
Feeding section:2000*700*2200mm(Length*Width*Height)
Washing and Drying section:1800*1200*2500mm(L*W*H)
Outlet section:2000*700*2200mm(L*W*H)
Can wash LOW-E Glass/Multi-coated glass
Price: E-LD1600G (1600*2500) Vertical glass washing and drying machine with open top type: USD 6,500 FOB Qingdao,China
Note
Packing terms； suitable for shipment by sea
Terms of payment: 30% T/T deposit,the balance should be made before shipment.
Delivery time: within 25-30 days after receipt of the buyer’s 30% deposit.
Validity: within 30 days from the date of quotation
Guarantee: one whole year after installation

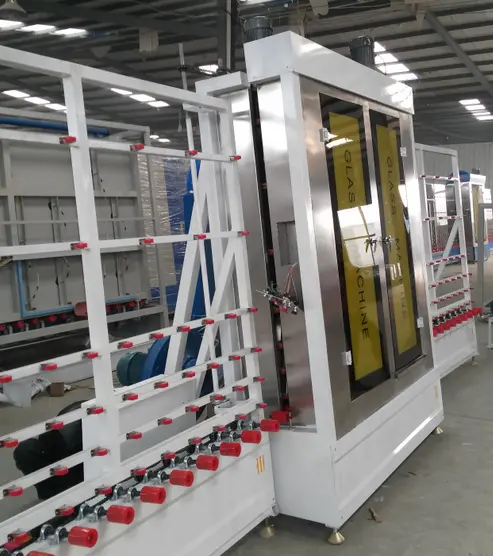

Vertical Glass washing machine
01 feeding section 02 washing and drying section 03 outlet/inspecting section
Technical parameter
|
Model |
Max Glass(mm) |
Min Glass(mm) |
Glass Thickness(mm) |
Washing Speed |
Power |
Dimension(mm) |
|
1600G |
1600*2500 |
300*500 |
3-12 |
0-6m/min |
380v 50HZ 13kw |
5800*2200*2500 |
It is painted by an electrostatic paint for protection against a rust and scratchs.
Heating up plates and the Water tank have a covering (Against a rust of 10 years of a guarantee).
Conic moving gears are made from a special steel alloy.
Nuts corrosion-proof, apertures for nuts aluminium.
A working direction of action with left on the right party.
A water tank with a heater.
Filtered fan for dust-free air expulsion.
Brushes from above and from below have adjustment for approach.
The electrosystem corresponds to safety rules.
The washing branch has 4 brushes.
All washing section is stainless steel,Can wash LOW-E Glass/Coating glass with soft brusher( 4 pcs)
Additional features
Heating up plates and water tank from stainless steel.
Special brushes for reflecting glasses.
Adjustment of speed of a running tape.
Covers with glass windows.
Washer and dryer
LOW-E option /Coating glass washing
Power: 380V 50HZ 3 phase or 3 Phase,220v ,60hz

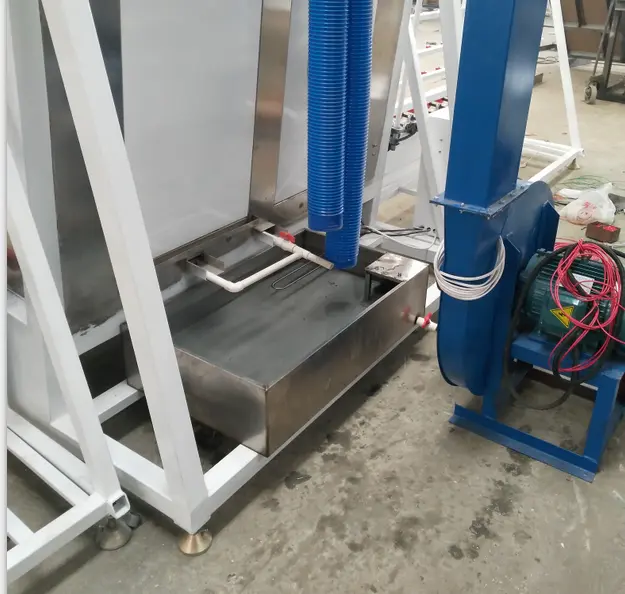

Stainless steel water tank,high pressure blower

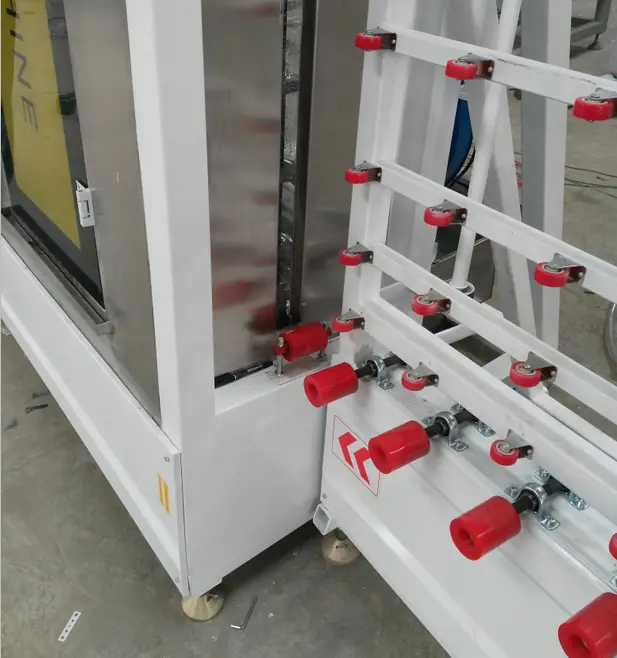

Strong body structure,high quality roller wheel

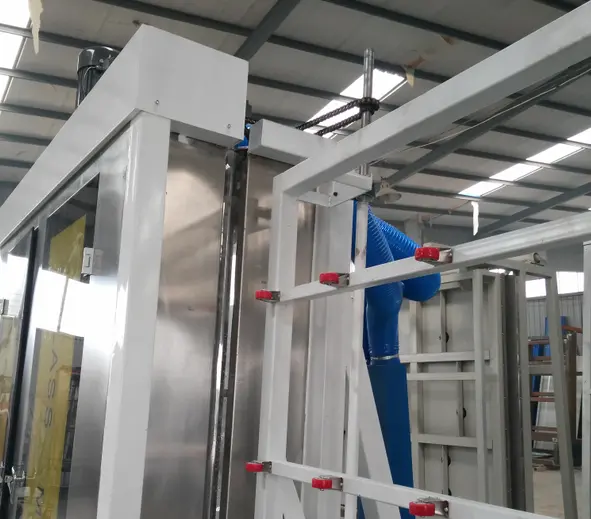

Open top type,can wash big glass,such as 2000mm,2500mm height glass
It is painted by an electrostatic paint for protection against a rust and scratchs
2. Air knife drying Description:
Normal temperatures, without the drying button to be opened. Fan drying the glass is mainly used in condition of low temperature (below 0 °) and the humidity of the air (such as rain and snow weather, wet weather) circumstances, which is not good effect caused by these conditions
3. The use of materials: section 01 and 03 40 * 80 * 3mm Square steel (Q235B) which is welded together.
Section 2 are all high-quality stainless steel (304 materials). 4mm thickness shell, and there is 1.5mm thickness stainless steel for six doors. Roof and bottom use 5mm thick stainless steel. And1.5mm thickness stainless steel for water tank. Four pairs of soft brushes (8), can wash the coated glass, LOW-E glass.
4.Other materials configuration:
1) All washing section use solid rubber roller,
2) Section 01,02 and 03 respectively controlled by converter (Taiwan Delta) for regulating the washing speed.
3) The high-pressure blower fan. Circulating air can be heated, air knives and prop material adopt all model 304 stainless steel frame.
4) Using two circulating water filtration devices, also can be heated.
5) Bearings from domestic well-known brands: Harbin Bearing
