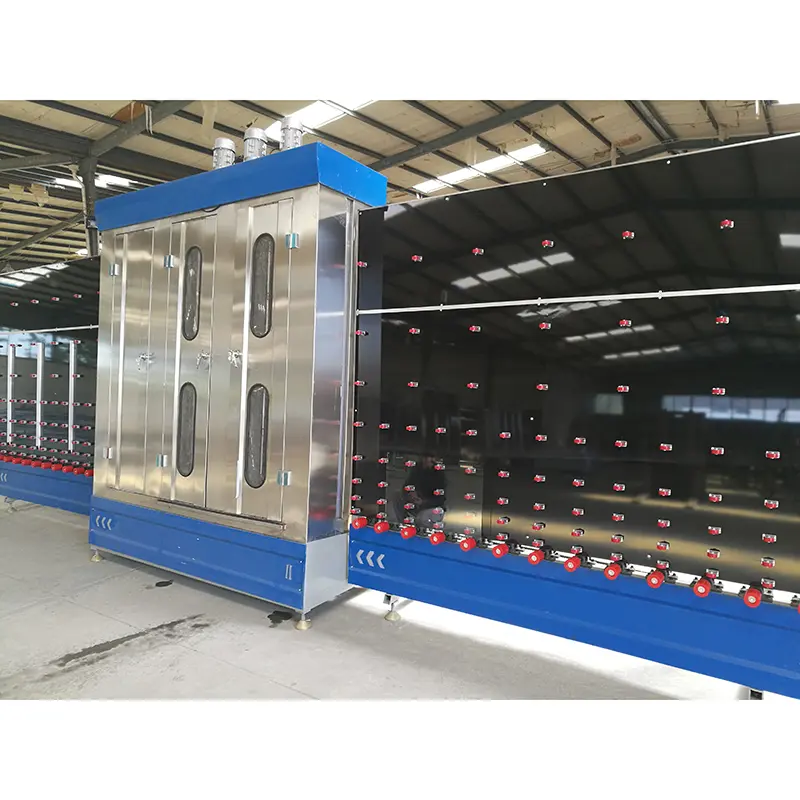

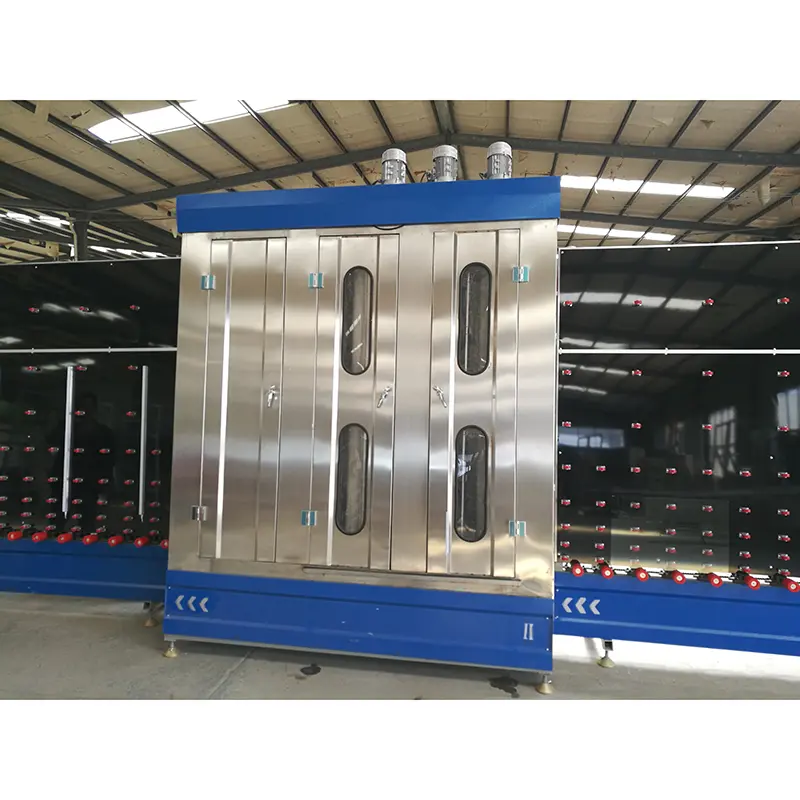

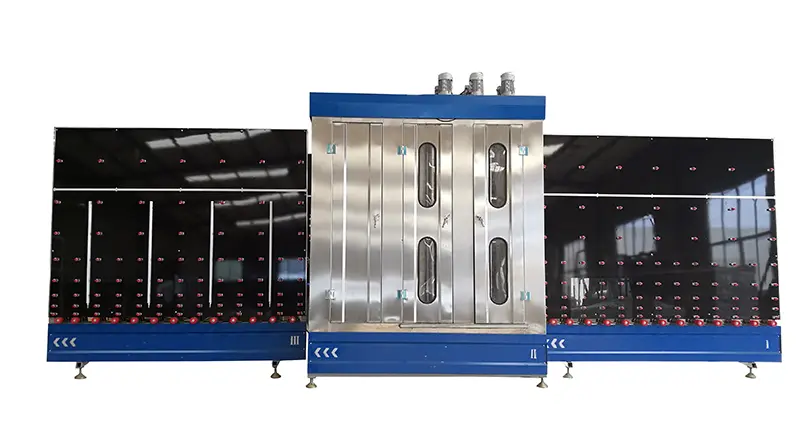

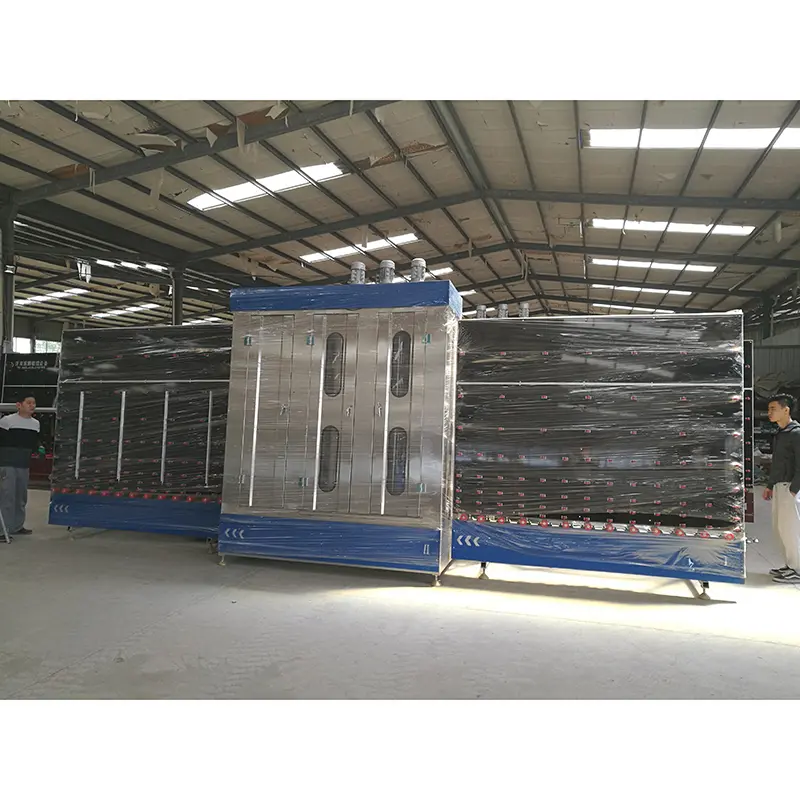

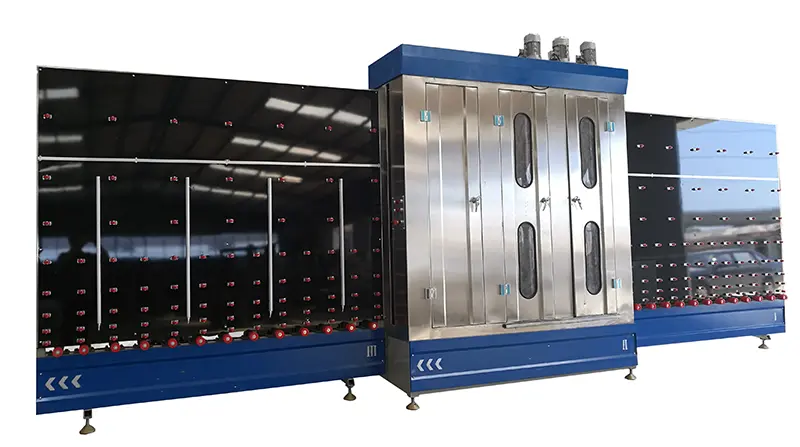

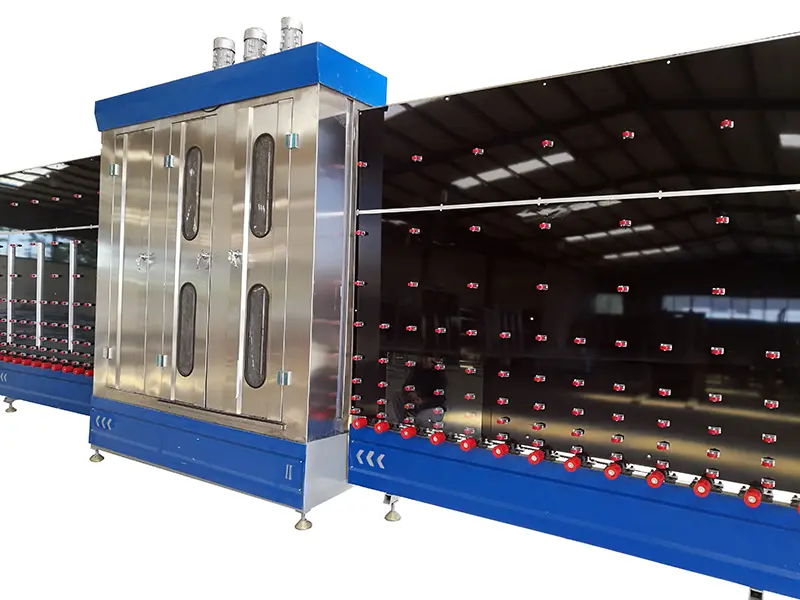

E-LD1600 Vertical glass washing machine
video
Technical parameters
Price: E-LD1600(1600*2000) Vertical glass washing and drying machine: USD 6,300 FOB Qingdao,China

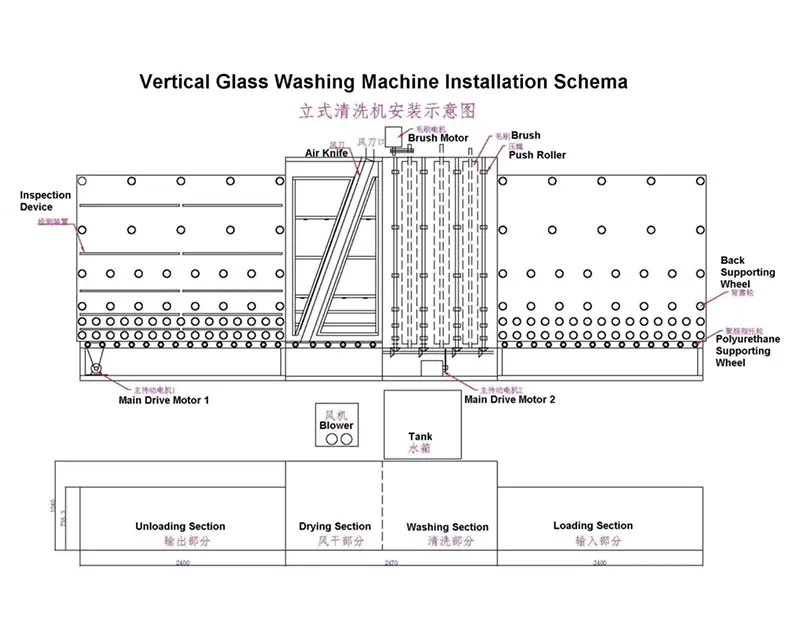

01 Lead in section 02 washing and drying section 03 outlet/inspecting section
Working size :1600*2500mm
Washing thickness:3-12 mm
Brusher: 6 pcs
Hot knife: 1 pair
Roller: 1 pair
Total power: 16KW
Feeding section:2000*700*2200mm(Length*Width*Height)
Washing and Drying section:1800*1200*2600mm(L*W*H)
Outlet section:2500*700*2200mm(L*W*H)
Can wash LOW-E Glass/Multi-coated glass（optional）
Feature
It is painted by an electrostatic paint for protection against a rust and scratchs.
Conic moving gears are made from a special steel alloy.
Nuts corrosion-proof, apertures for nuts aluminium.
A working direction of action with left on the right party.
Brushes from above and from below have adjustment for approach.
The electro system corresponds to safety rules.
Heating up plates and water tank from stainless steel.
Special brushes for reflecting glasses.
Adjustment of speed of a running tape.
Covers stainless steel windows.
LOW-E option
Power: 380V 50HZ 3 phase or 3 Phase,220v ,60hz
CE CERTIFICATE for European Union
Component list
|
Electricity |
CHINT/DELIXI |
|
Switch button |
CHINT/DELIXI |
|
Photoelectric switch |
Omron,Japan |
|
AC contactor |
Schnieder |
|
Breaker |
Schnieder |
|
Inverter |
DELTA |
|
Blower |
Jiangsu |
|
PU Pipe |
Japan |
|
Brusher |
Anhui |
|
Roller |
Anhui |
|
Water pump |
Shanghai |
|
Motors |
China |
|
Machining processing（Frame,welding,mould,painting.,etc） |
EWORLD factory |
Note
Packing terms； If it is 1*20’ container,put all machine inside the container with wire cable for fixing.
Terms of payment: 30% T/T deposit,the balance should be made b
Price:USD 6,300 FOB China main port.
Delivery time: Within 20 days after receiving the down payment.
Payment:
30% of total send by T/T as downpayment ,70% before delivery by T/T.
