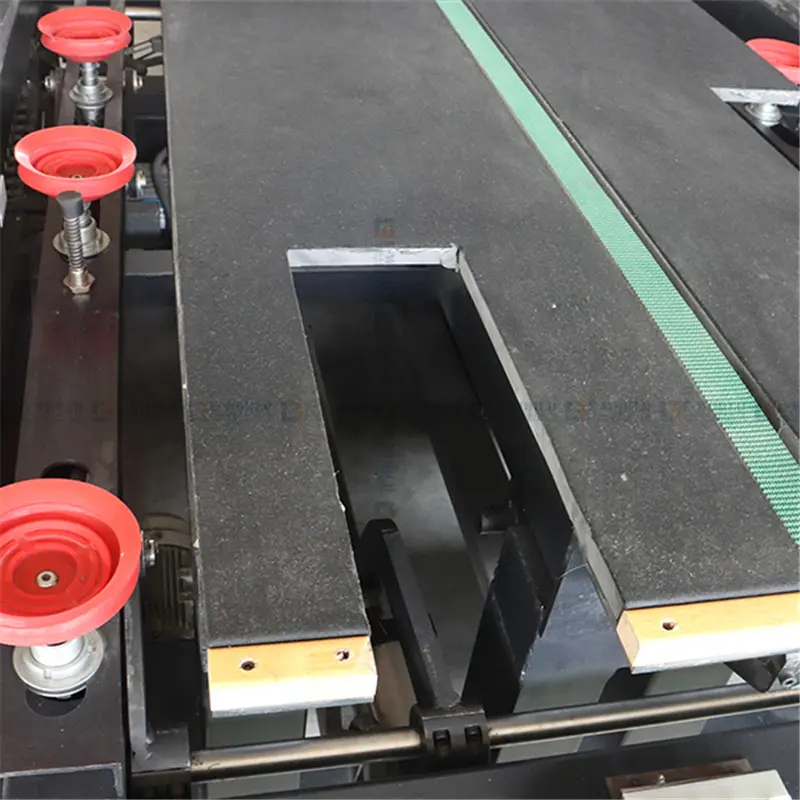

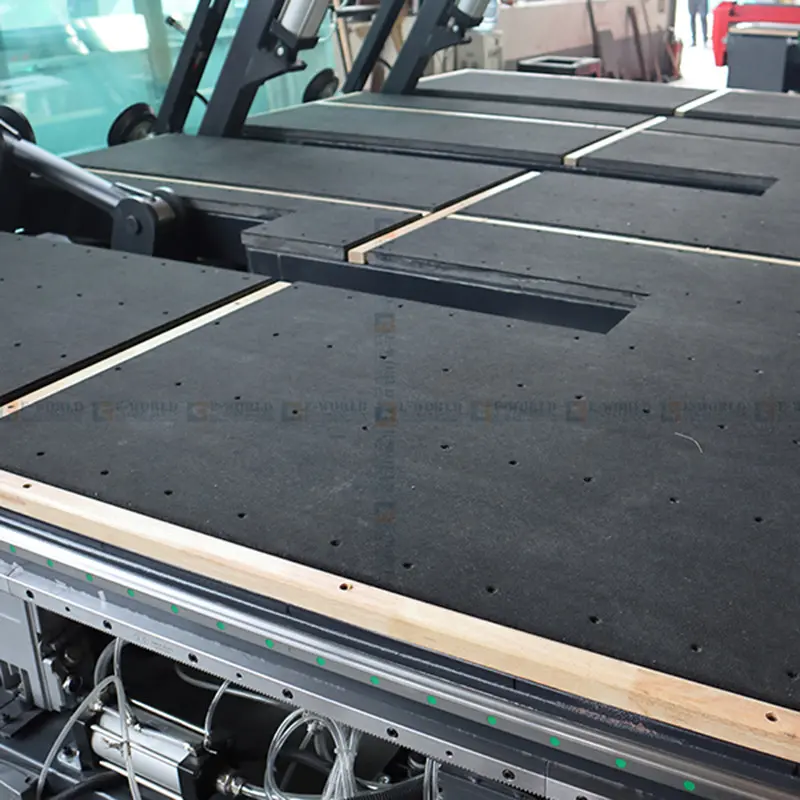

1. The tabletop: The smoothness≤±0.2mm/m

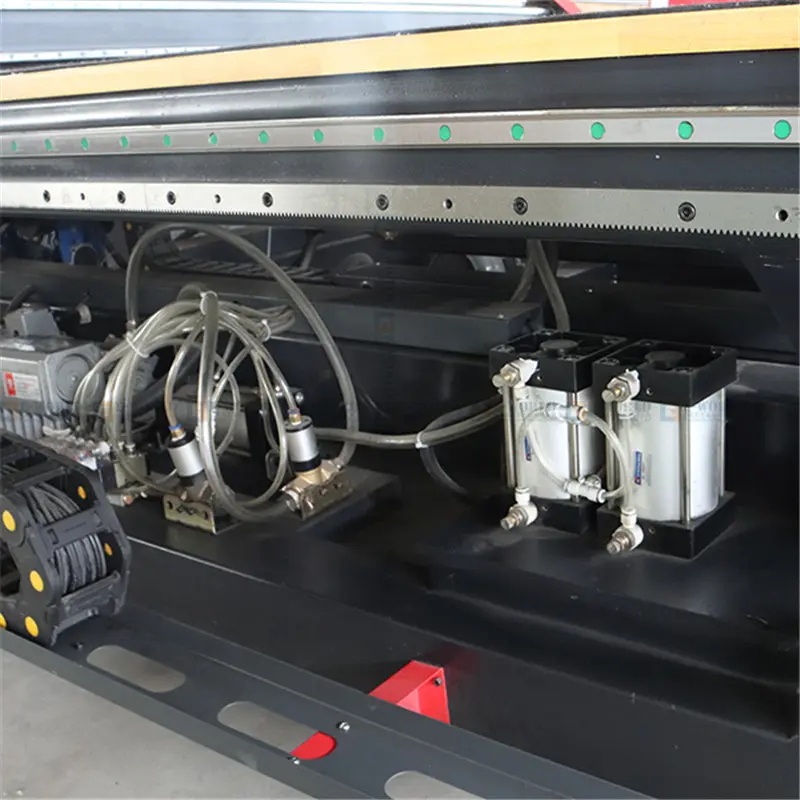

2. Rack/Guides: Imported from Japan and switzerland.

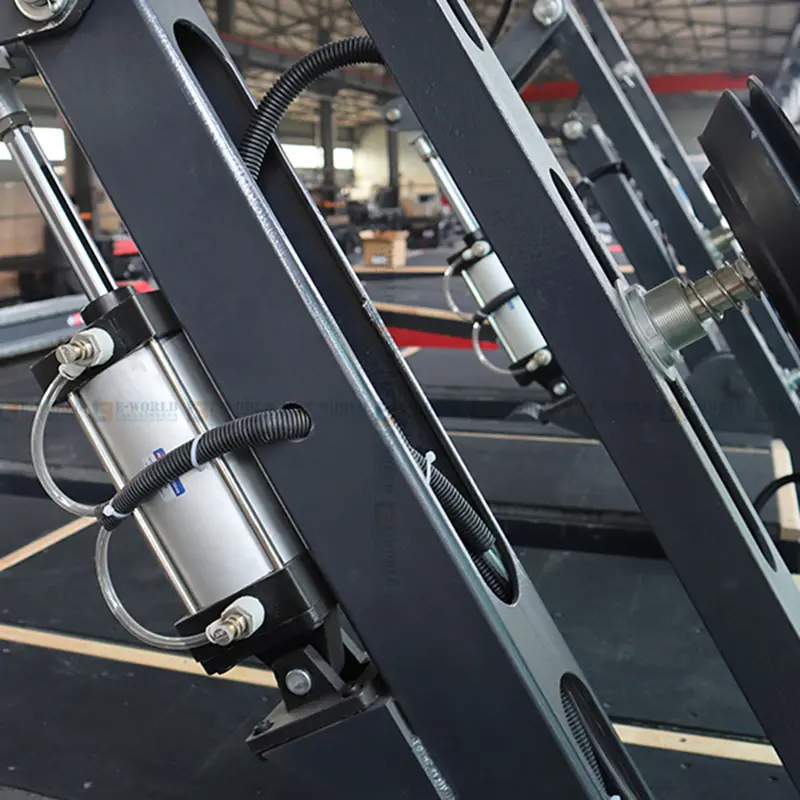

3. Turret: It use the pneumatic pressure and the spring pressure at the same time to make the cutting best.
Products
- The Other Glass Machinery
- Aluminum Window Machine
- UPVC PVC Window Machine
- CNC Non-Metal Cutting Machine
- CNC Glass Working Center
- Glass Drilling Machine
- Glass Sandblasting Machine
- Glass Laminating Machine
- Glass Washing Machine
- Glass lifting machine
- Insulating Glass Machine
- Glass Edging Machine
- Glass Cutting Machine
01

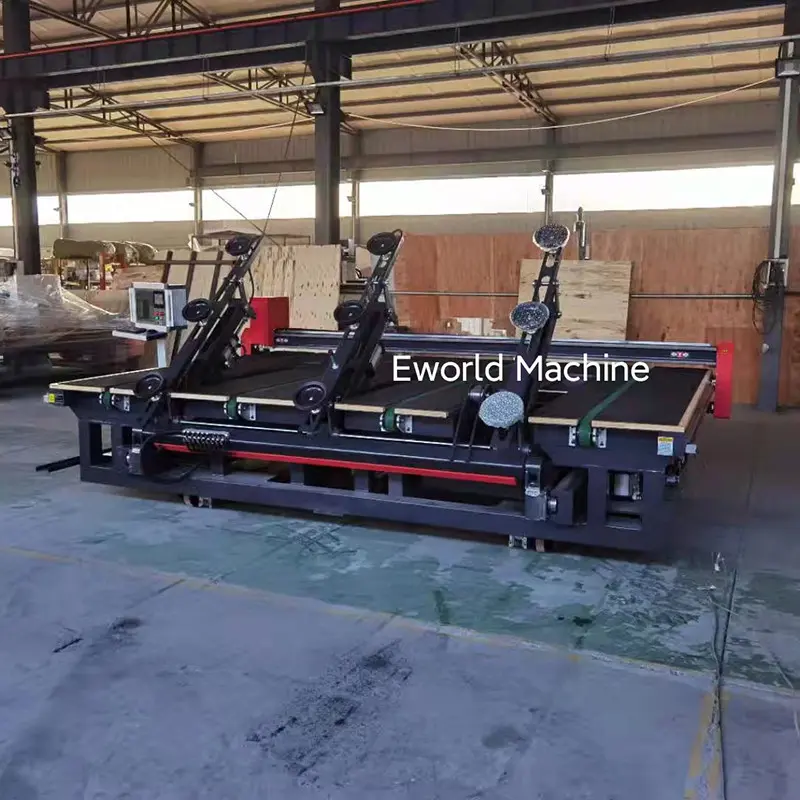

CNC Integrated Glass Loading Cutting Machine
1. The cutting thickness: 3-19mm
2. The cutting accuracy: Parallelism:≤±0.15mm/m
3. The cutting speed: 150m/minute(can be adjustable)
4. The outline size:4200*3800*900mm;
5. The max cutting size:3660*2440mm
6. Transmission system: The X、Y、Z Axis are equipped with reliable motor.

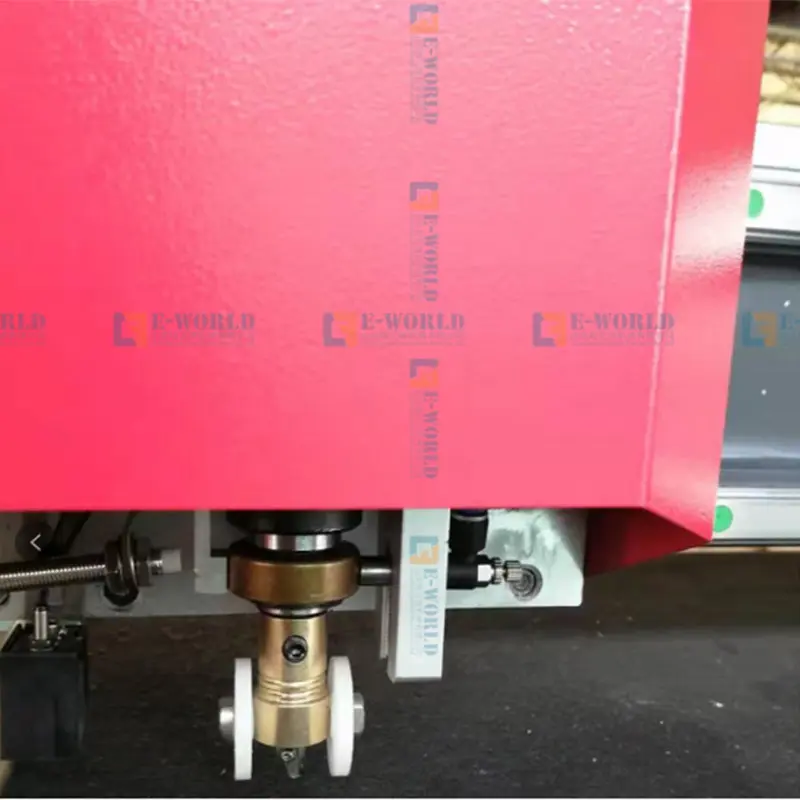

7. The cutter block: It adopt pneumatic and spring at the same time. the cutter holder can rotate by 360°degree, and cut the glass up and down.(It can cut any shape)

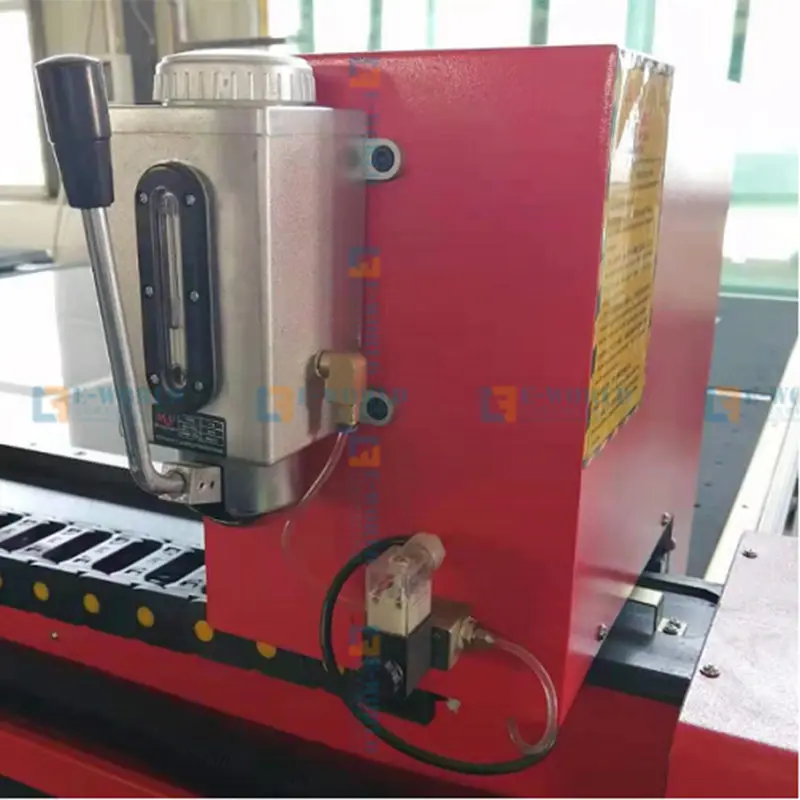

8. The oiling supply method: Auto oiling.
9. The transportation device: It adopt Flotation device which makes it convenient to move the sheet glass.
10. Power:15KW
0102
01
Flexibility
7 Jan 2019
Mobile device inside the machine,which can be moved to any glass location for loading, cutting, breaking.
Security

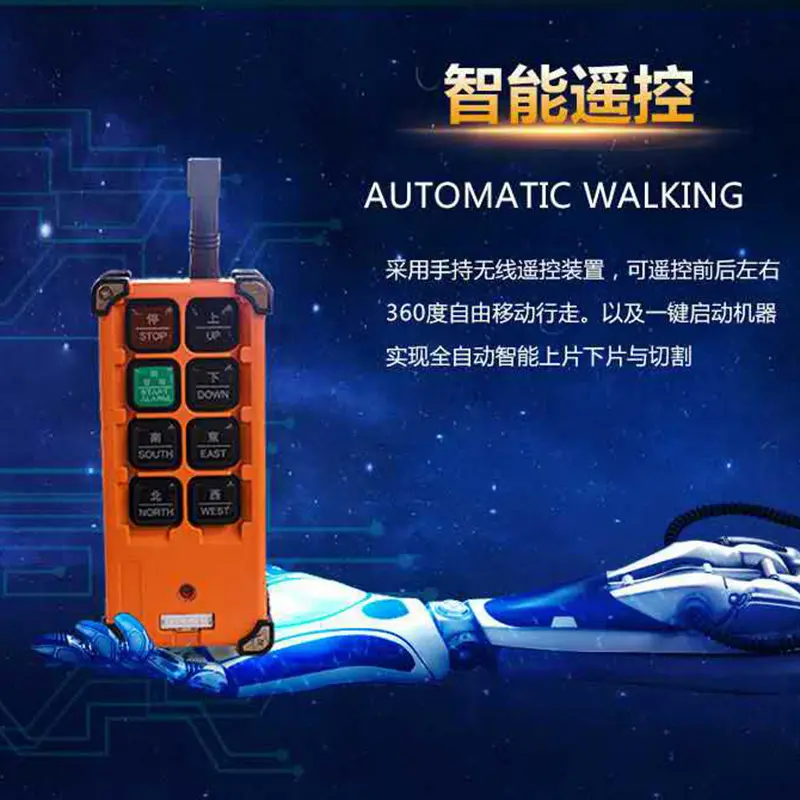

Through a remote control device to operate the device, effectively avoid personal injury and property damage likely to result from, the equipment itself also has a computer to automatically detect electrical protection devices, make the equipment very simple and safe to use.
01
Economy
7 Jan 2019
It at least need 4 people for cutting glass with the traditional glass cutting line.Our equipment only need one person who can complete loading, cutting, breaking,. Meanwhile workers through remote control operation without contact glass, completely eliminate this aspect of high security risks, using flexibility can be applied to different sizes of glass, a piece of equipment has the function of multiple devices.
01
7 Jan 2019
1. Innovative system is the only one can guarantee perfect uniformity and constant quality of all the machines that are being built and every single parts of machines can be easy to replace if needed, even the felt table surface.
01
7 Jan 2019

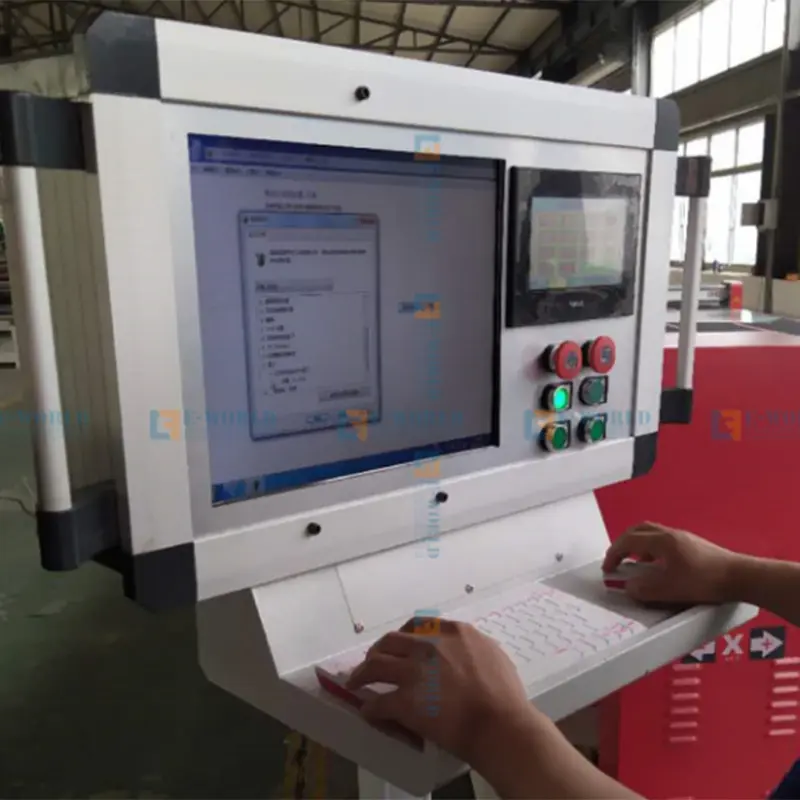

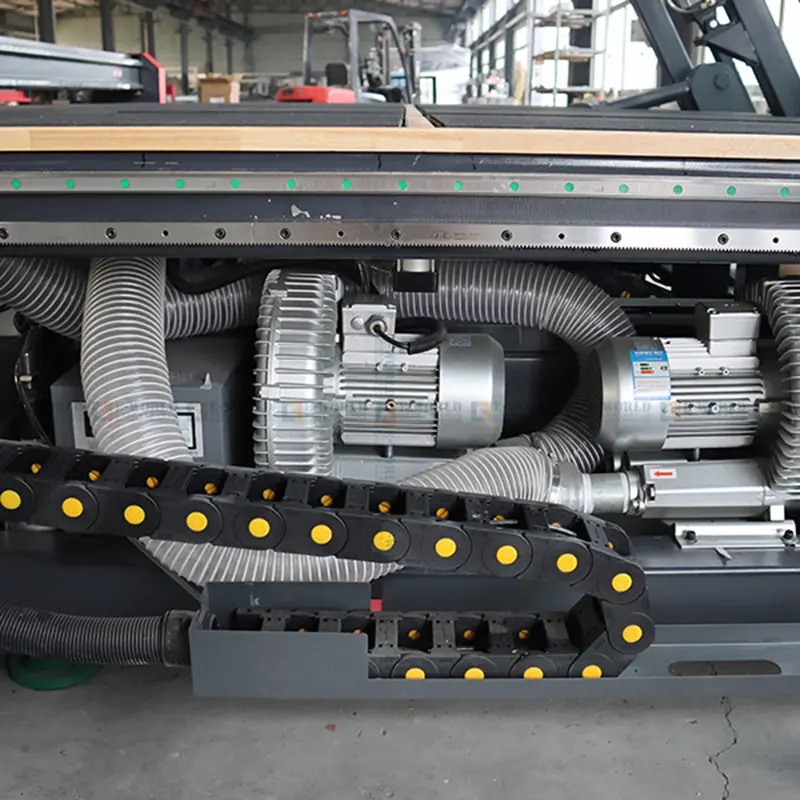

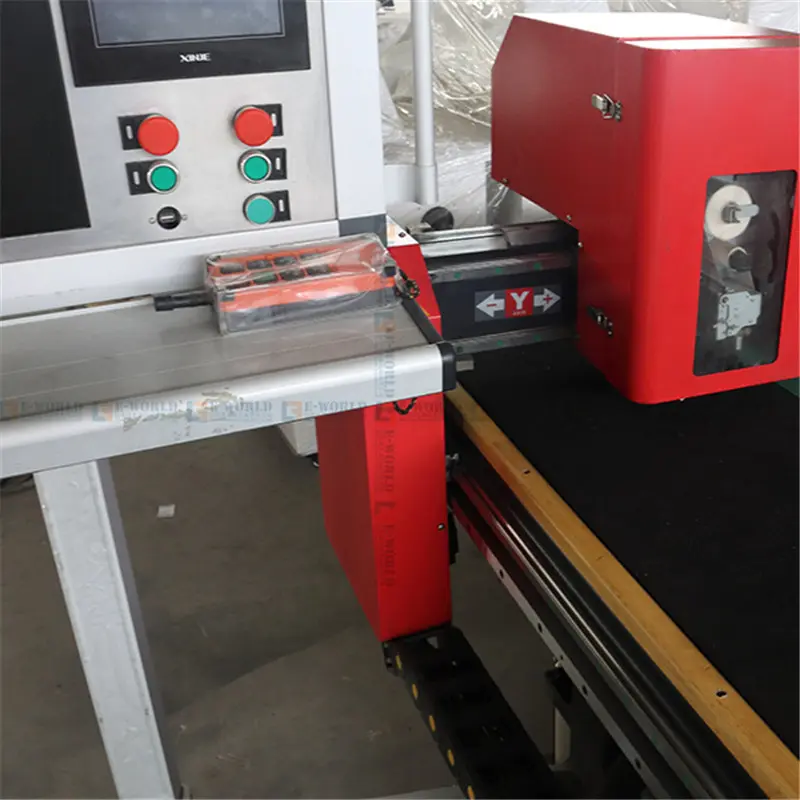

2. Control panel with incorporated independent Computer , software packet with optimization program developed in Multitasking systems, user graphic interface for the managing of the cutting cycle and machine monitoring , hydraulic tilting surface, air cushion, ventilator for the movement of the sheet on the surface
01
7 Jan 2019
3. Famous imported Electrical components or reliable domestic brands to make high cutting precision and stability, can meet all kinds of shapes of glass cutting.

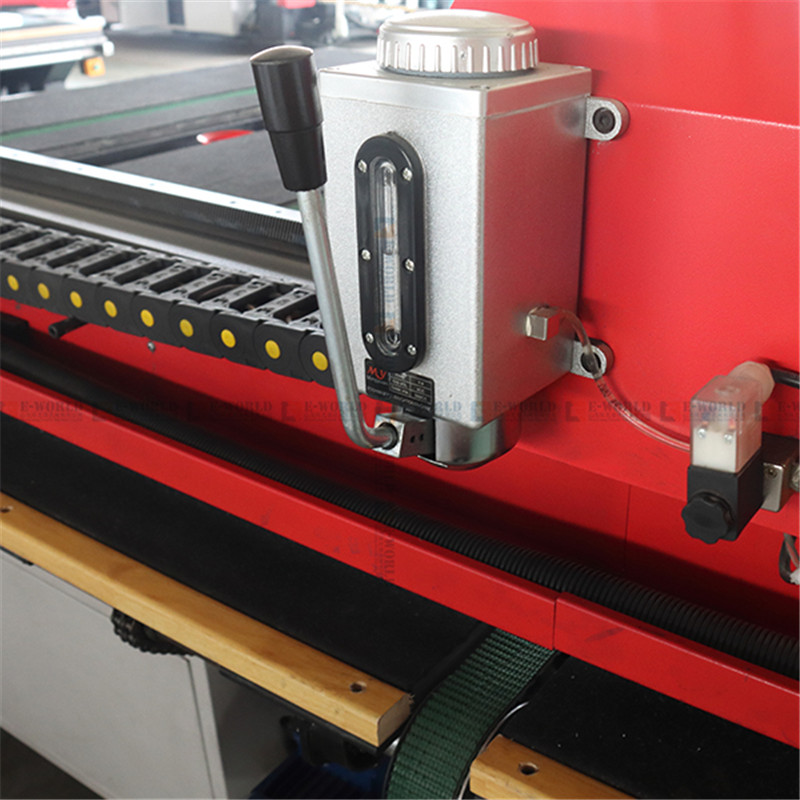

4. Automatic oil injection and automatic constant pressure regulation functions, effective way to ensure the stability of the cutting and cutting effect. Simple, easy to manage, no special requirements for operators, easy training to start, unskilled workers will be able to operate it too.
01
7 Jan 2019
5. Imported cutter wheels and setting tool. stable voltage power supply, English cutting software, instruction, AUTOCAD Designed graph and figure, all cutting are fully CNC Control.
6. Safety of the glass presence: Automatic sensor is placed on the cutting head, to stop the machine in case of lack of glass sheets.
The advantage of our machine
1) Work flow: After starting the inputting machine, arms automatically suck glass from the shelf. Under sensor controlled, glass automatically find glass edge in the X and Y directions. After moving glass sheets to designated location, transport glass to the automatic cutting table.Cutter will move to coordinate origin, and automatically start to cut according to the preinstall graph.
2)The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing.
Mechanical
Electrical

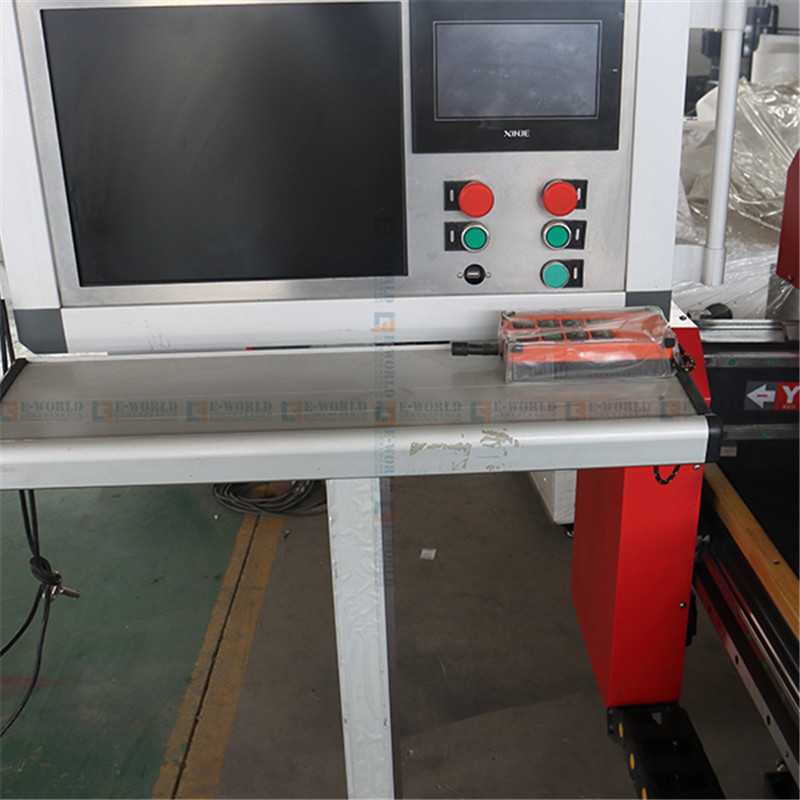

1. It’s operated directly by pc and adopt Microsoft Windows.
2. Voltage: 380v/50Hz or cutstomized
Notice:
1. It can cut the glass of various thickness and shapes.
2. The seller should supply the services of installation, commissioning and training(in china).
3. One years guarantee(Not including the artificial damage), long maintenance.
Mechanical parts
| Name | Brand |
| Table surface panel | High-density waterproof panel, roughness≤±0.20mm/m (Imported material) |
| Rack and rail | ALTANTA GEMERGY |
| Belt/band pulley | KONYEAR |
| Cutter wheels and holder | BOHLE GEMANY |
Electric parts
| Name | Brand |
| Relay | OMRON JAPAN |
| Terminal | WAGO GERMANY |
| Air-break switch/low-voltage apparatus/button | MOELLER GERMANY |
| Servo motor | INVANCE |
| Proportioning solenoid valve | SMC JAPAN |
| A.C. contactor | SCHNERDER |
| Laser Sensor | PANASONIC |
| Position switch | OMRON |
| Control card | GALIL(USA) |
| Frequency converter | DELTA |
| Pneumatic components | AIRTAC |
| Optimize Software | GUIYOU |
