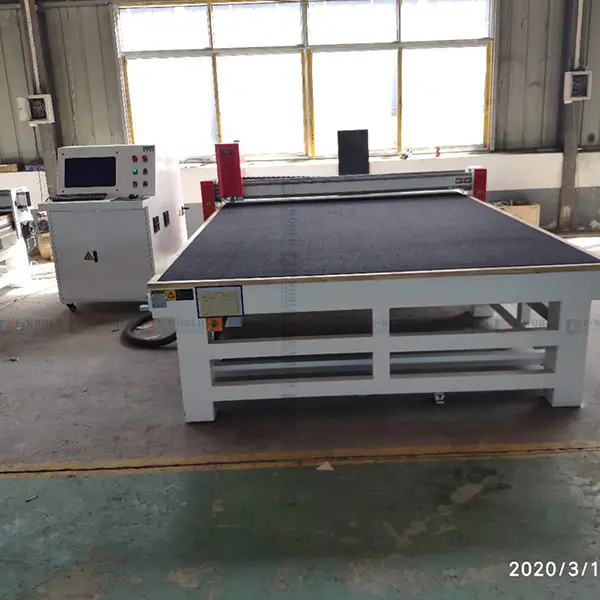

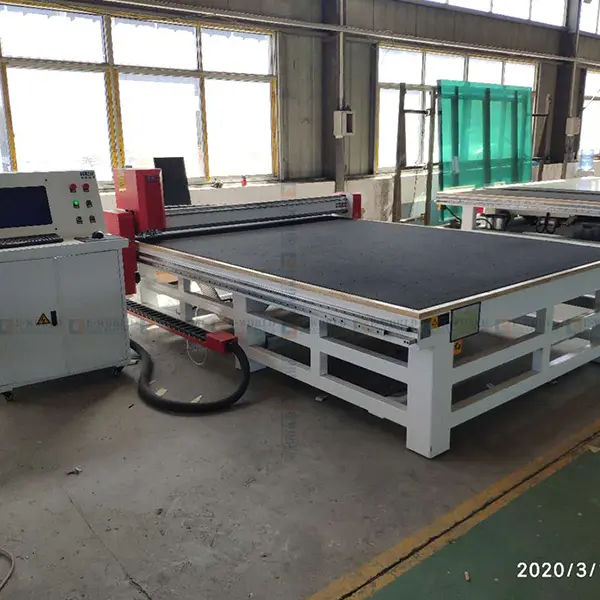

CNC 4028 Automatic Glass Cutting Machine

2)The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing.

1.Bed using thick wall pipe welding and become, the high temperature tempering treatment, ensure that the deformation is small, rigid good, the intensity is big.

2.The X,Y axis adopt reliable motor drive, selected pairing, ensure the smooth movement.

3.Using high precision level gear rack drive, high precision, speed and strength.

4.Adopts imported linear guide square, high precision, long life.

5.Mechanical and electrical full excellent design, selection of all kinds of electrical accessories, the failure rate drop

6.Software compatibility: compatible type3 / Artcam/Castmate/wentai and so on.Many kinds of CAD/CAM design software.

7.Performance worry about: a breakpoint renewal carving, power off recovery, processing time prediction, and other functions, the real human nature design.

1.Equipped with imported cutter wheels and a set of setting tool.

2.A set of stability voltage power supply.

3.A set of best optimized software.

4.A set of computer operating system (including a set of computer and cutting software)

1.The cutting thickness: 2-19mm

2.The cutting accuracy: Parallelism:≤±0.15mm/m

3.The cutting speed: 150m/minute(can be adjustable)

4.The outline size:4200*3800*900mm;

5.The max cutting size:3660*2440mm

6.Transmission system: The X、Y、Z Axis are equipped with YASKAWA JAPAN servo motor.

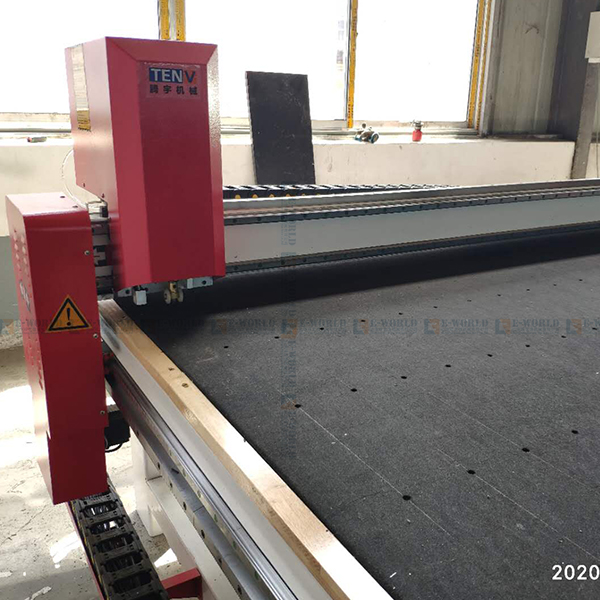

7.The cutter block: It adopt pneumatic and spring at the same time. the cutter holder can rotate by 360°degree, and cut the glass up and down.(It can cut any shape)

8.The oiling supply method: Auto oiling.

9.The transportation device: It adopt Flotation device which makes it convenient to move the sheet glass.

1.The material of the tabletop: Metal tabletop(deformation will not happen)(The smoothness≤±0.2mm/m)

2.Rack/Guides: Imported from Japan and switzerland.

3.Transmission belt/Transmission belt wheels: Italy.

4.Cutter wheels/cutter holder: BOHLE GEMANY.

5.The tabletop: Industrial blankets imported from Korea (color in black).

6.Turret: It use the pneumatic pressure and the spring pressure at the same time to

make the cutting best.

1.It’s operated directly by pc and adopt Microsoft Windows.

2.Voltage: 380v/50Hz. It’s equipped with stability voltage device.

3.Motor: Yaskawa servo motor made in Japan(3 sets) and operating card imported from America.

1.Special cutting soft(It can be used under Windows System).

2.There is a graphic library with hundreds of shapes which is convenient for drawing and operating.

3.There is also a set of Auto CAD drawing software.

4.The optimized software can be selected(Enter the size of the sheet glass directly, then it can cut the glass automatically and it’s not necessary to cut by using CAD drawing).

5.There is a function of auto correcting which can make the cutting accuracy high.

6.There is also a selecting function of cutting path.

7.There is also a function of origin point correcting.

8.Operating Entering: Key board and mouse.

1.It can cut the glass of various thickness and shapes.

2.The seller should supply the services of installation, commissioning and training(in china).

3.Two years  guarantee(Not including the artificial damage), long maintenance
