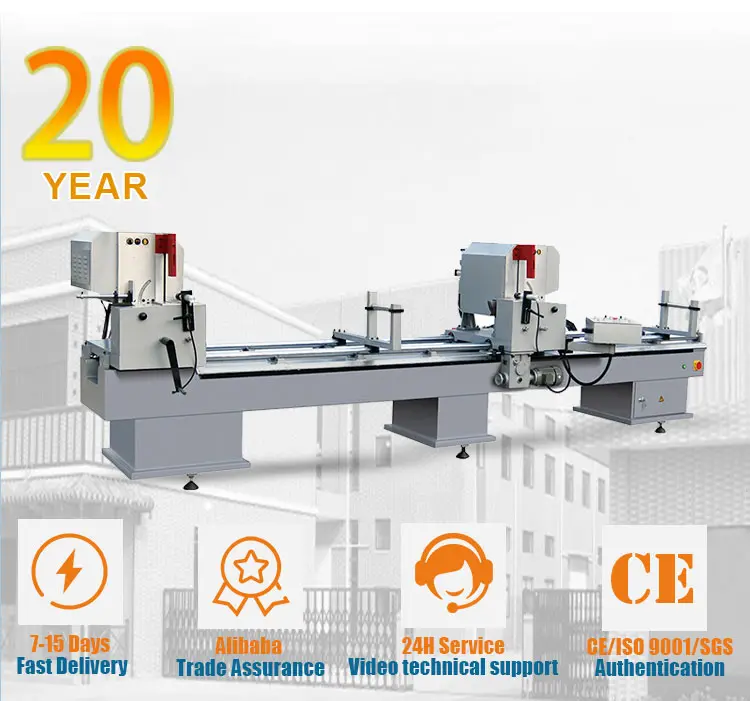

                        Aluminum Window Door LJB2-450*3700 Double Miter Saw
product detail

Features
Used for aluminum profile cutting.
- The linear guiding pair ensured steady processing accuracy.
- Saw blade rotate smoothly due to high accuracy main spindle.
- Uniform speed feeding and smooth motion due to airdraulic damping cylinder.
- It has feature of easy operation, reliable performance, advanced technique and convenient maintenance ect.
- Right head moving saw blade give accurate processing and high efficiency.
- Imported carbide saw blade give accurate processing and high efficiency.
- Two head can work together or single, when together work , one tine. can cut off the required length and angle
| Model | SSJ 06-3700 |
| Operation Air Pressure | 4~6 kgs |
| Cutting Motor Power | 2 x 2HP |
| Motor Rotary Speed | 2800 r/min |
| Air Consumption | 200 L/min |
| Blade Specification | Φ450×4.0×3.5×30.0×120 |
| Cutting Length | max3700mm / Min400mm |
