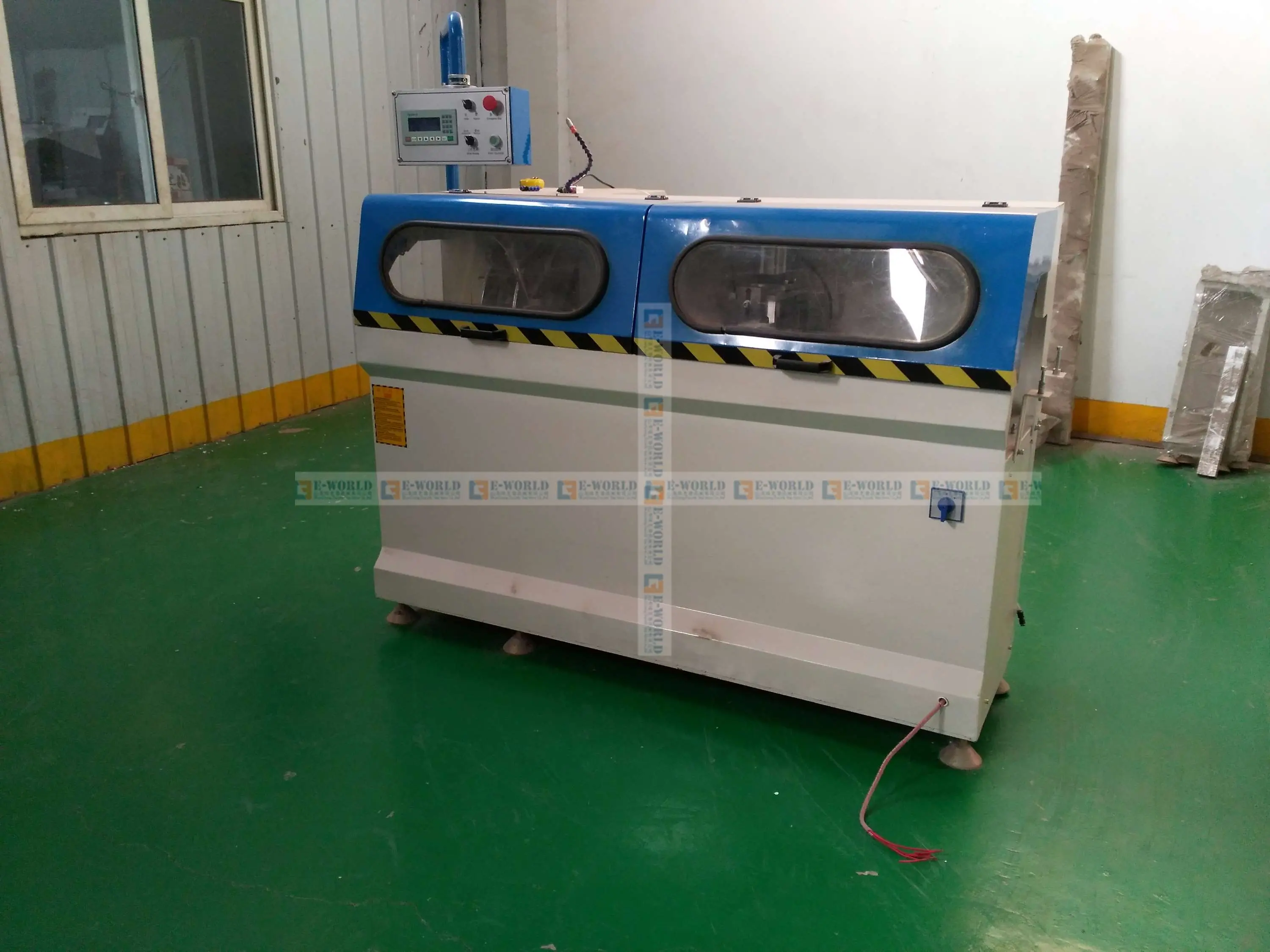

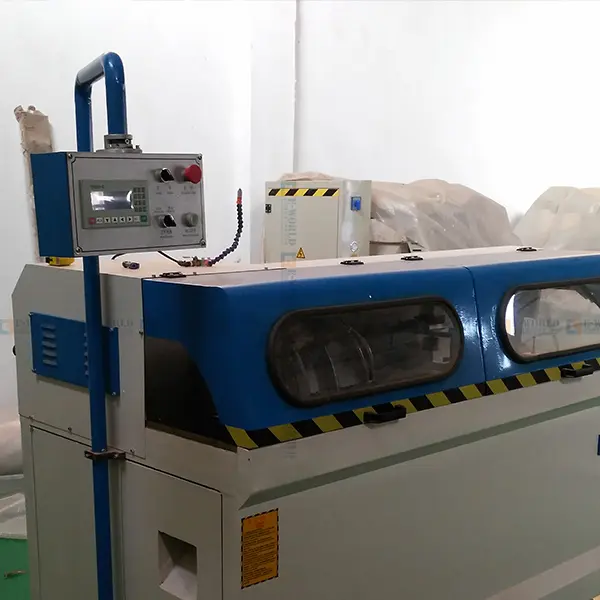

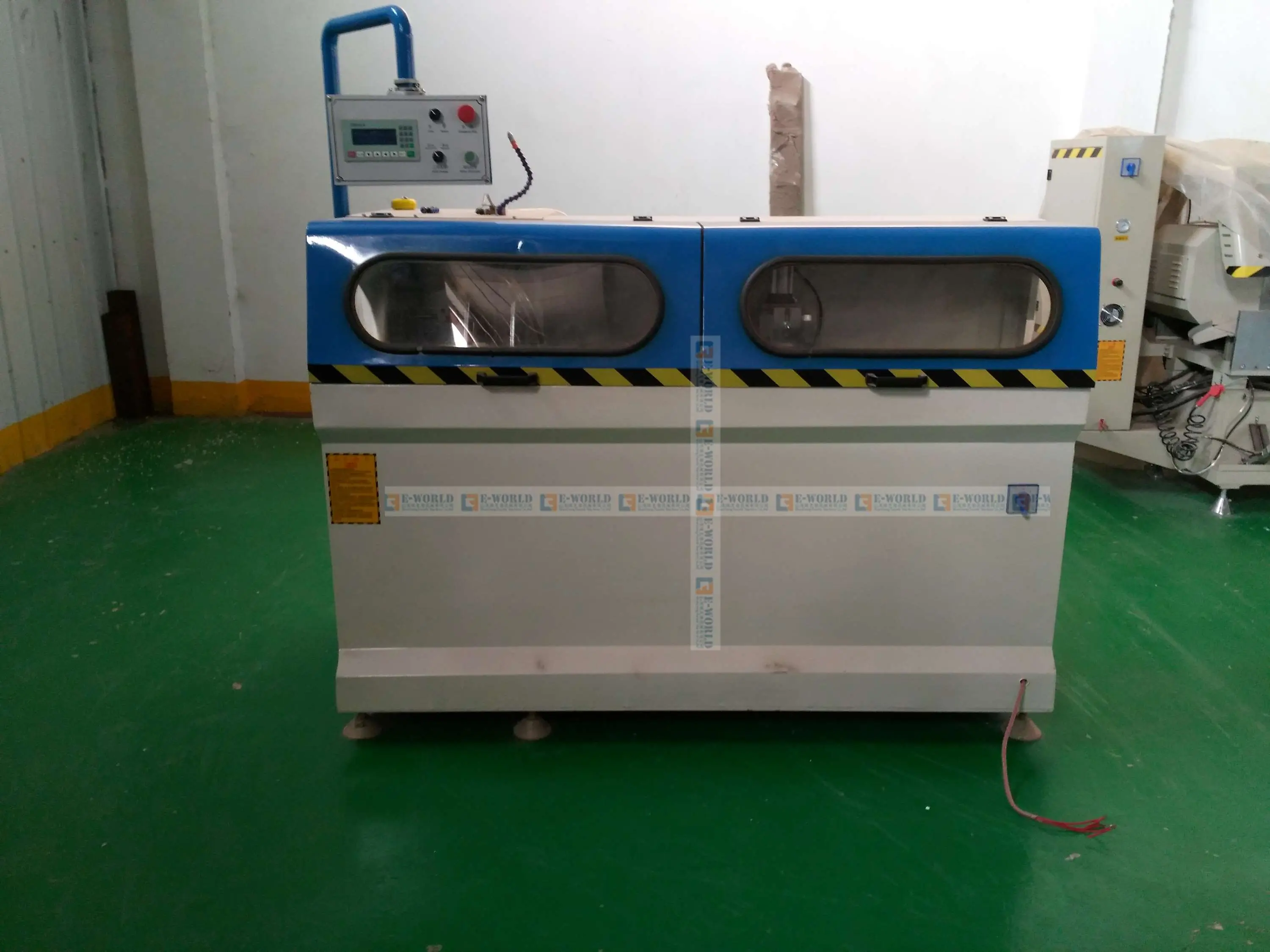

Aluminum Window And Door CNC Connector Cutting Saw
product detail
Function:

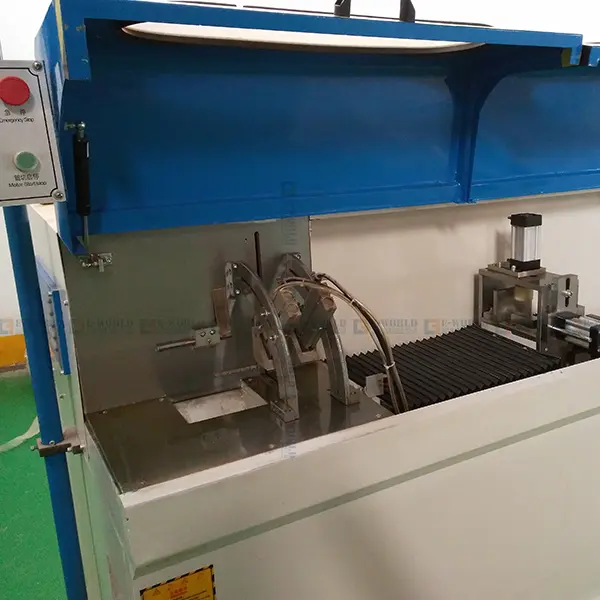

Used for corner key/ connector of aluminum profile and plastic profile cutting.
Equipment Features:
Used for corner connector of aluminum profile and plastic profile cutting.
Imported carbide saw blade is of accurate processing and high efficiency.
High-power motor makes the cutting easily.
Linear bearing motion pair gave less resistance force and ensured high processing accuracy.

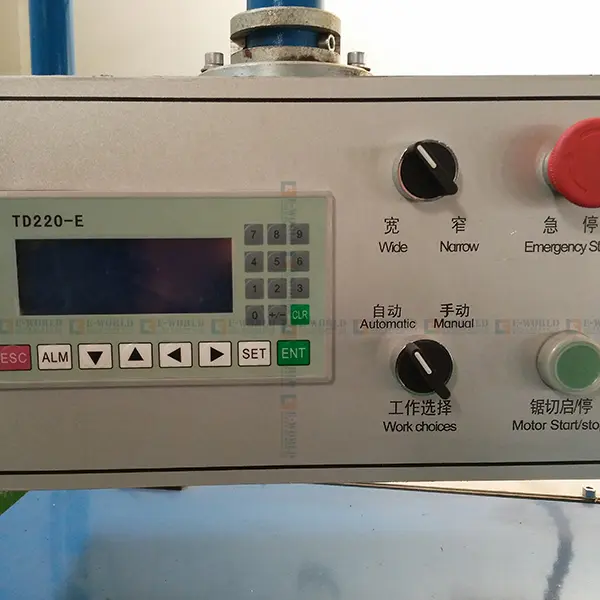

The PLC control and auto-feeding system with high efficiency is suitable for large volume production.
|
Power Supply |
380V 50Hz |
|
Contour dimension |
5670×1770×1840mm |
|
Weight |
700Kg |
|
Cutting motor power |
2.2KW |
|
Motor rotary speed |
2840r/min |
|
Operation air pressure |
0.6～0.8MPa |
|
Auto-feeding length |
5~700mm |
|
Cutting speed |
0 ~ 3m/min |
