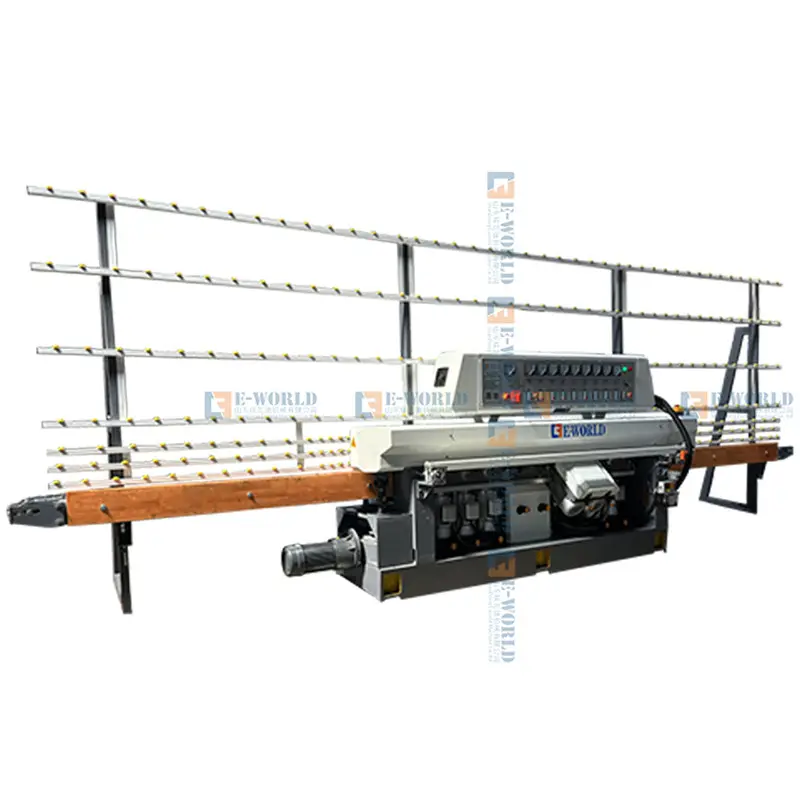

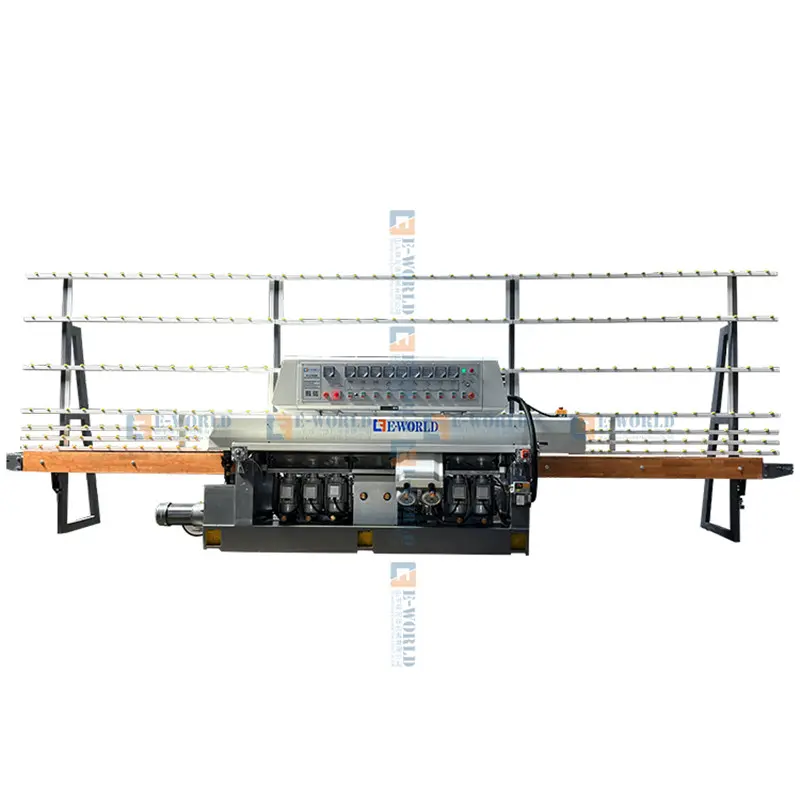

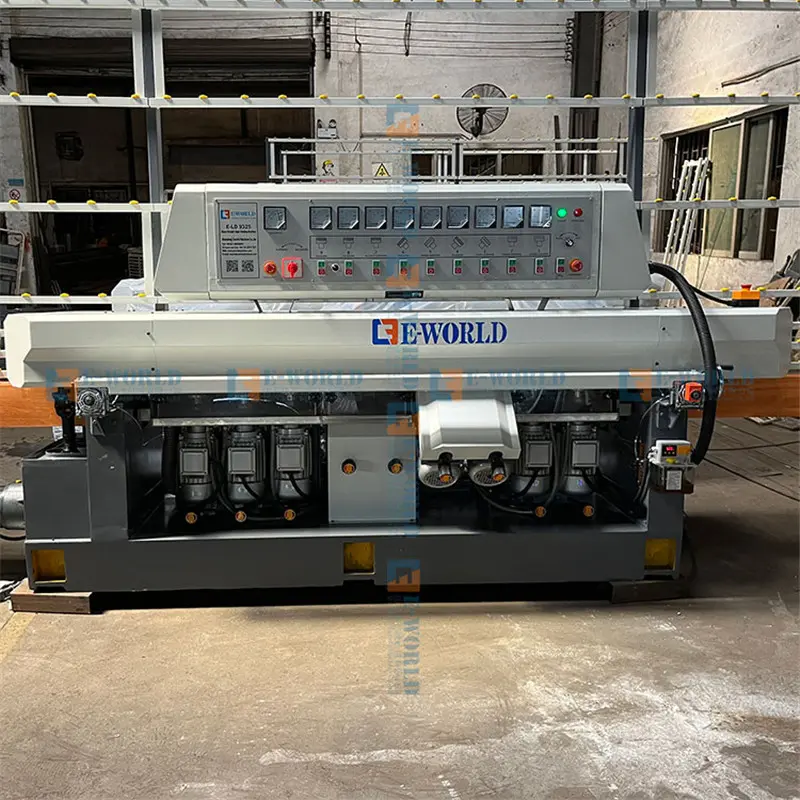

9 Motors Straight Line Glass Edging Machine

1. E-LD9325 Glass Straight line Edging Machine, is suitable for processing straight-line edging of glasses,when adjusting the thickness of the different processing, the pre-chamfering grinding head can be moved synchronously as fore beam.
2. CE approved
3. With 9 spindles,PLC control is optional
4. Excellent grinding and polishing effect.
5. Easy to operate and maintain
6. Sturdy structure enables 24 hours running without stop.
7. Hundreds of edging machines have been made and our experience on edging would be shared with you without any reservation.

product details

product Tags

Functions

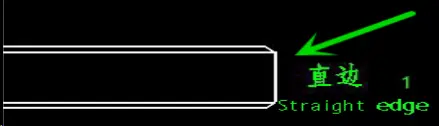

Processes straight edges of rectilinear glass plates in various sizes and thicknesses;

Rough grinding, fine grinding and polishing can be completed in one time.

The same thickness as the glass sheet can be continuously processed, so that the machine allows having a larger volume of glass edges production.

Glass type:

Float glass for furniture, building, door, windows, home appliances etc.

TECHNICAL PARAMETER

Model:E-LD9325

Quantity of motors: 9 sets

Feeding speed: 0.5-7m/min

Max grinding size: normally 3660*2440mm

Minimum grinding size: 60 *60mm

Thickness of the processed glass: 3-25mm

Power: 19.75 kw

Voltage (can be customized-made): 380V/50Hz or customized

External dimension(L * W * H): 6800*1000*2500mm

Packing size: 3700* 1250 * 1750mm

Weight: 2500kg.

HS Code:8464201000

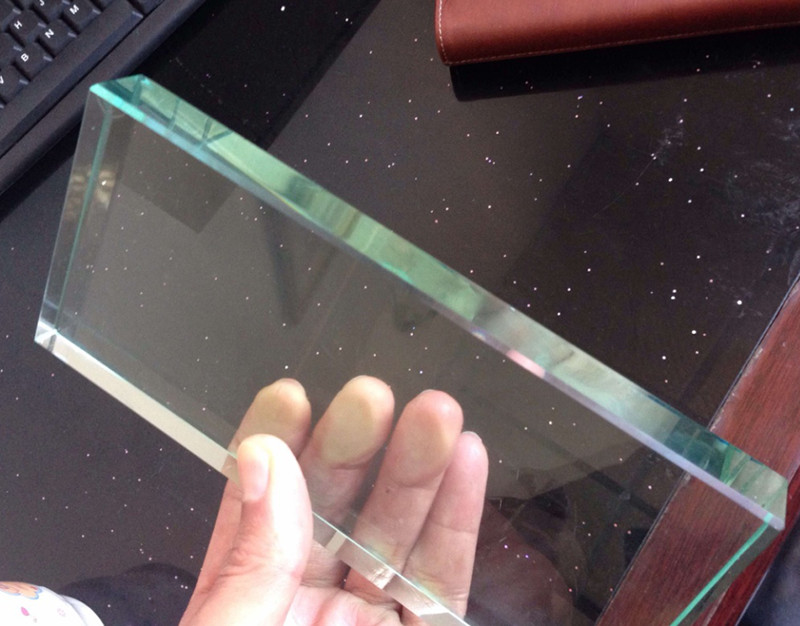

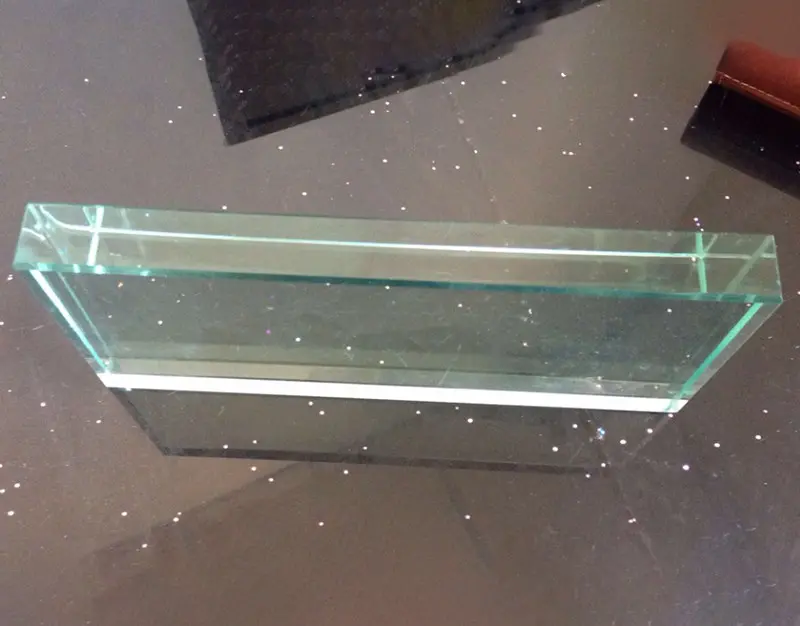

Glass sample after grinding and polishing21iag

Glass sample after grinding and polishing22e0w

Glass sample after grinding and polishing199r3

Glass sample after grinding and polishing18hkh

01020304

Wheels arrangement

Serial	Name	Specification	Usage
No. 1	Continue diamond cup wheel diamond wheel	15088*H12	coarse grinding for flat edge
No. 2	Continue diamond cup wheel wheewheelwheeldiamond whee	15088*H12	fine grinding for flat edge
No.3	Resin wheel	D1301510*H12	fine grinding for chamfer
No.4	10S40	1303560	polishing for chamfer
No.5	Resin wheel	D1301510*H12	fine grinding for chamfer
No.6	10S40	1303560	polishing for chamfer
No.7	Resin wheel	D1501510*H12	fine grinding for flat edge
No.8	10S40	1504070	polishing for flat edge
No.9	10S40	1504070	polishing for flat edge

Machine characters

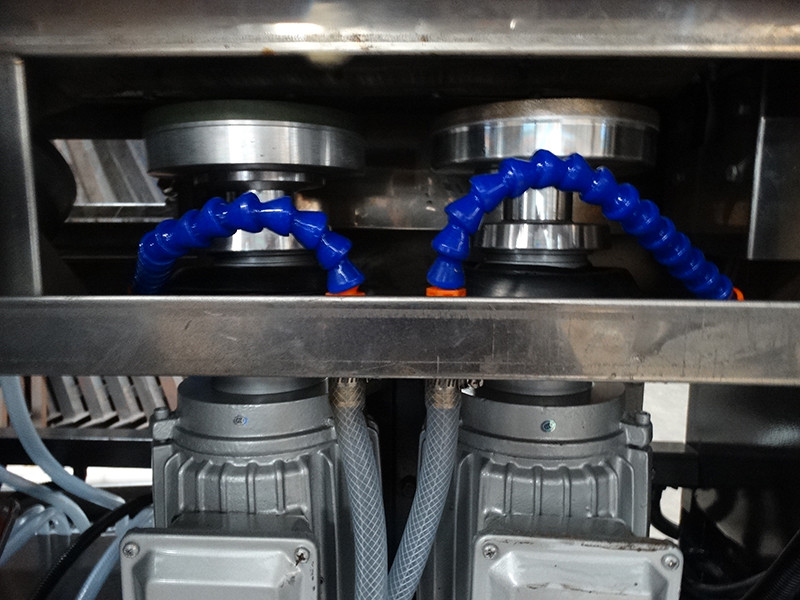

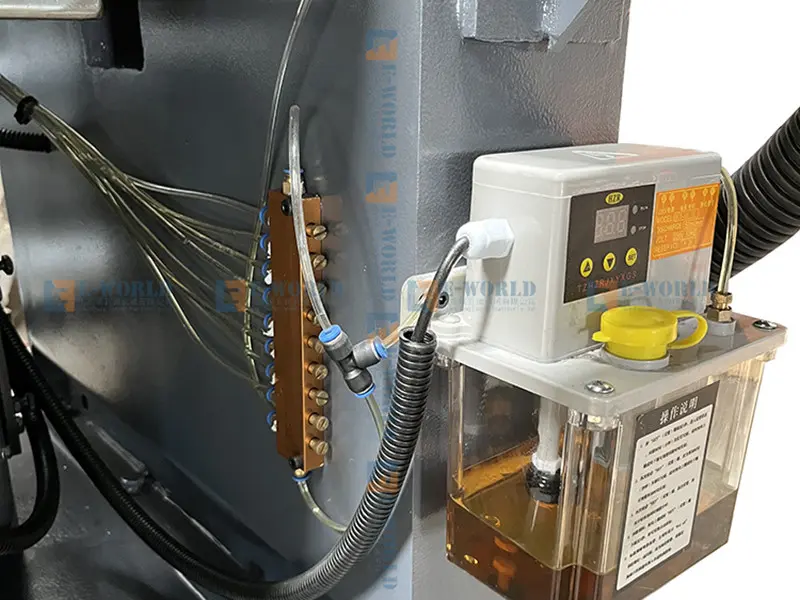

l 9 wheels, 1 felt polishing wheel, with cerium oxide, pneumatic polishing assistant.

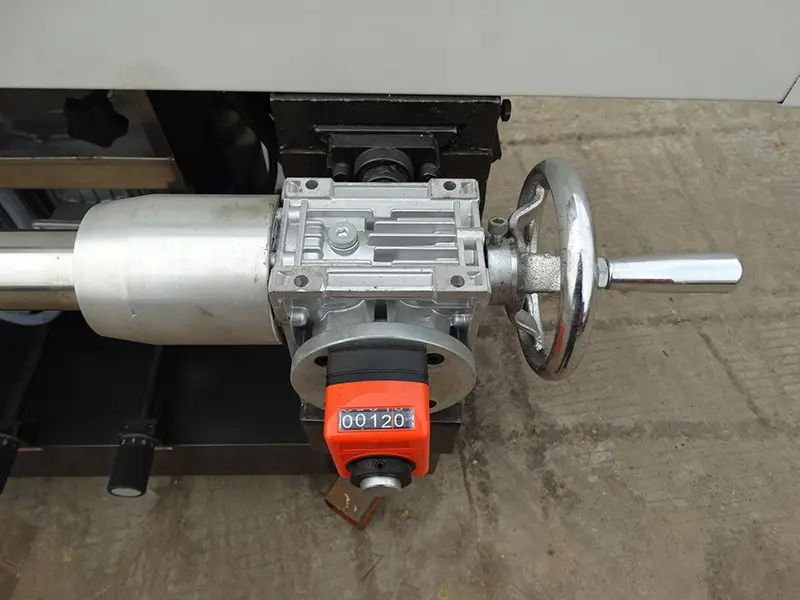

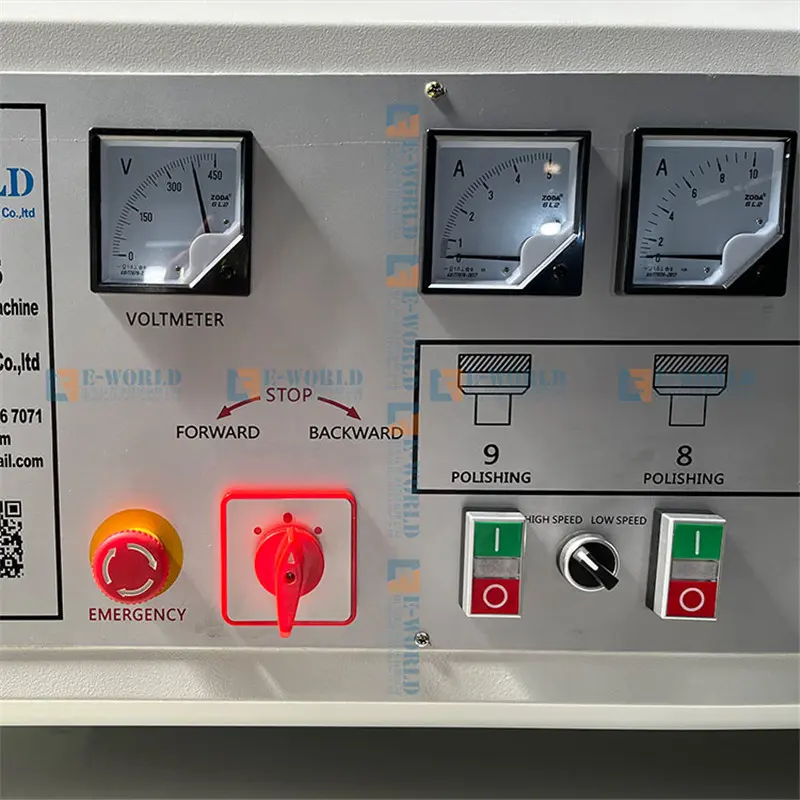

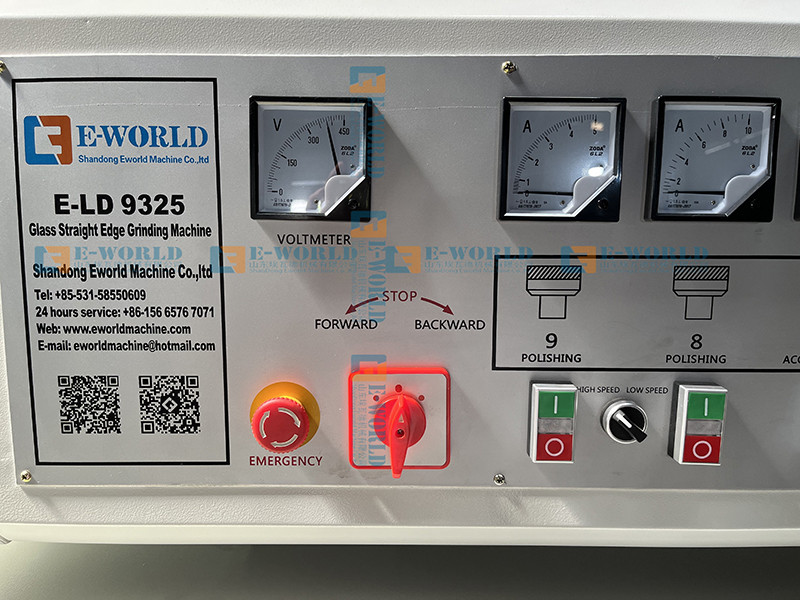

l Glass thickness, angle adjustment adjusted on control panel.

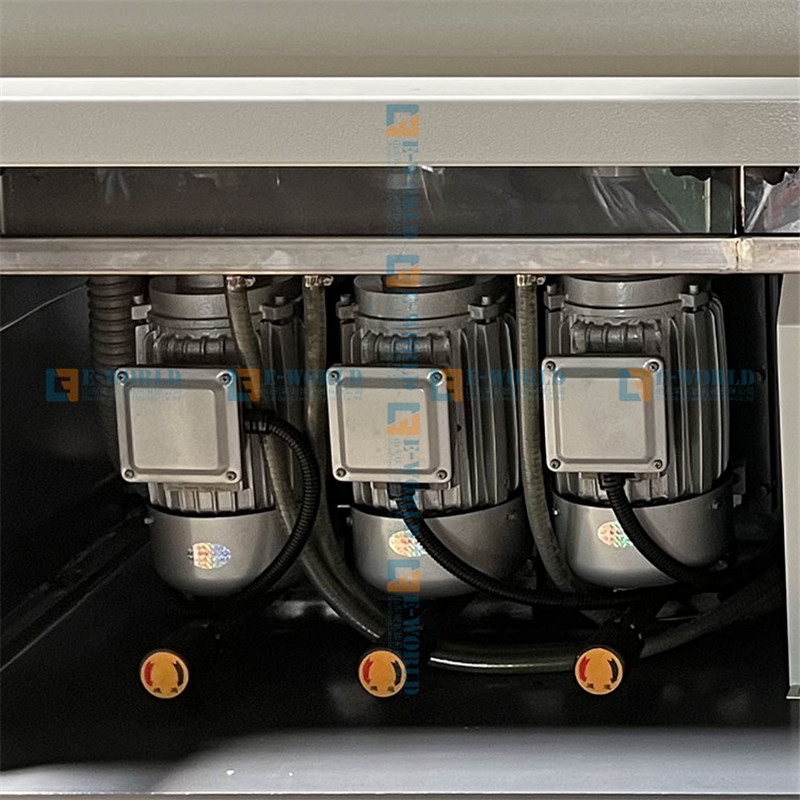

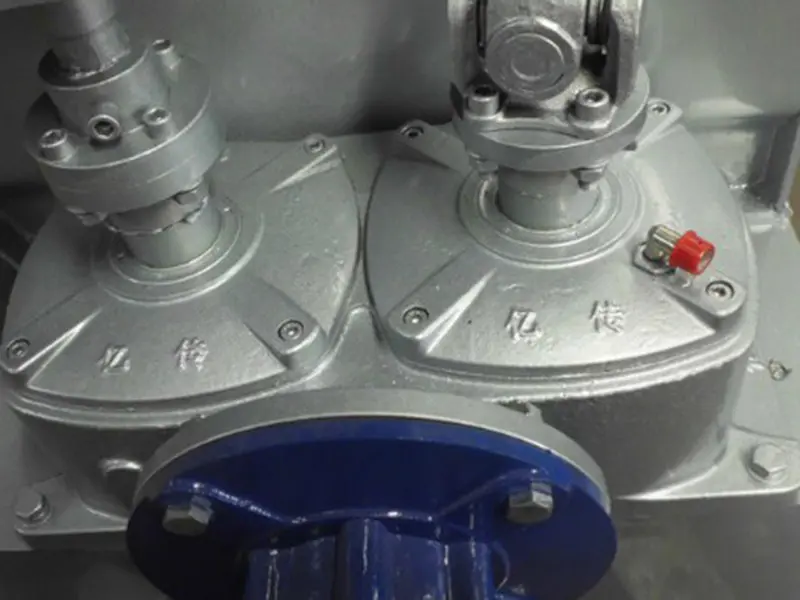

l High speed inducing motor. Speed 2480rppm/min.

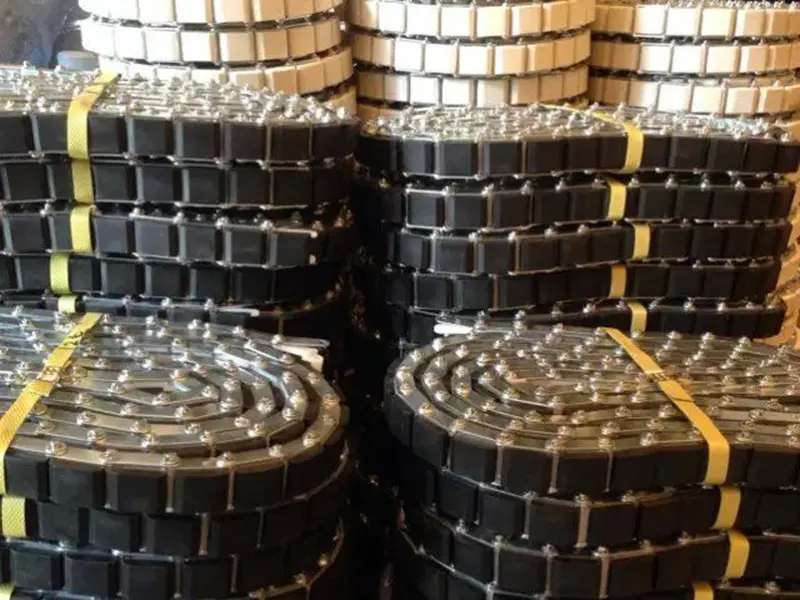

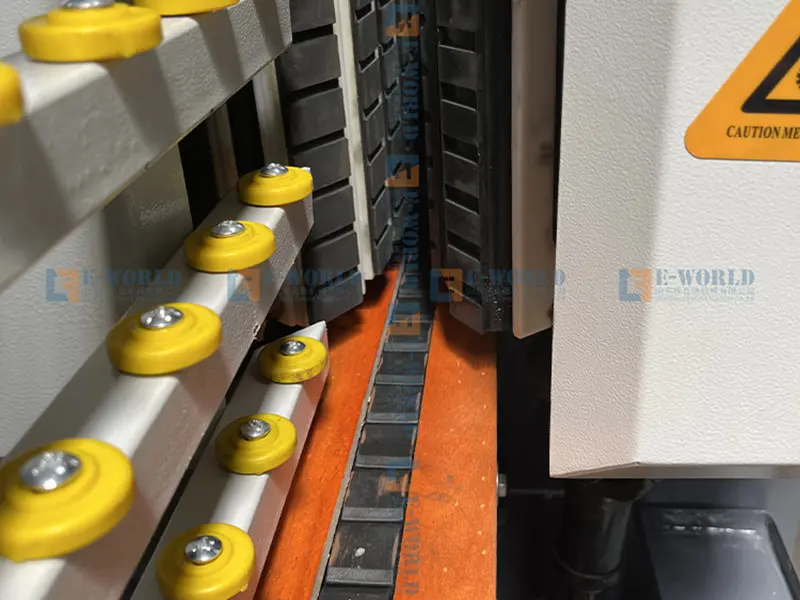

l Conveyor chain.

l Stainless steel water tank.

l Aluminum or steel glass support for option.

Glass sample after grinding and polishing

Wheel information

Glass sample after grinding and polishing03gly

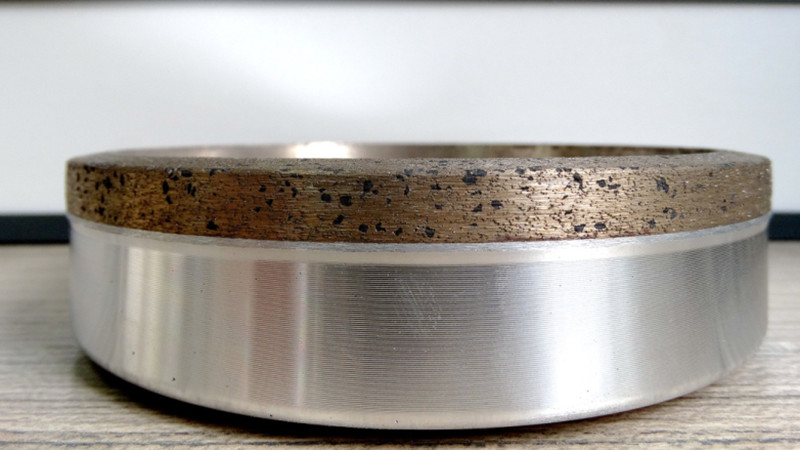

1. Diamond wheel for coarse grinding

Glass sample after grinding and polishing04ks3

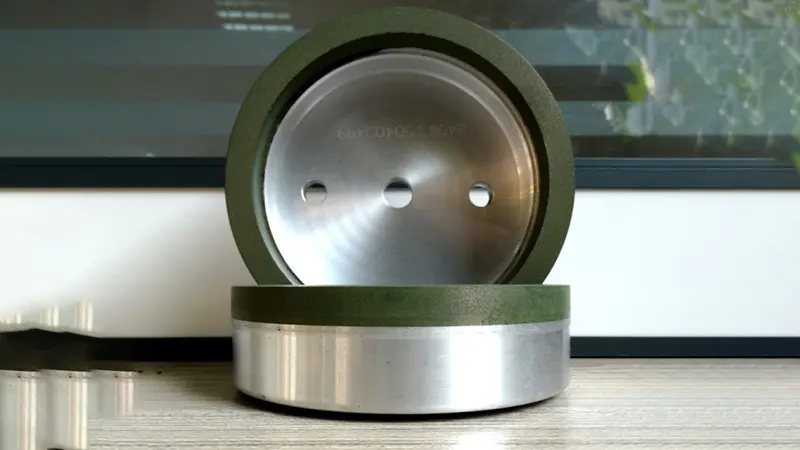

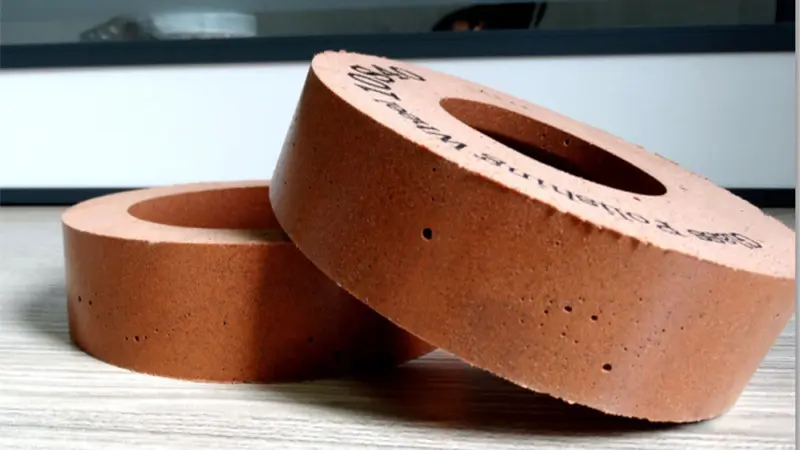

2. Resin wheel for fine grinding

Glass sample after grinding and polishing05mhw

3. Polishing wheel

Main parts configuration

Parts Name	Brand
Motors	JINLONG,CHINA FAMOUS
Main bearing	HIWIN,TAIWAN

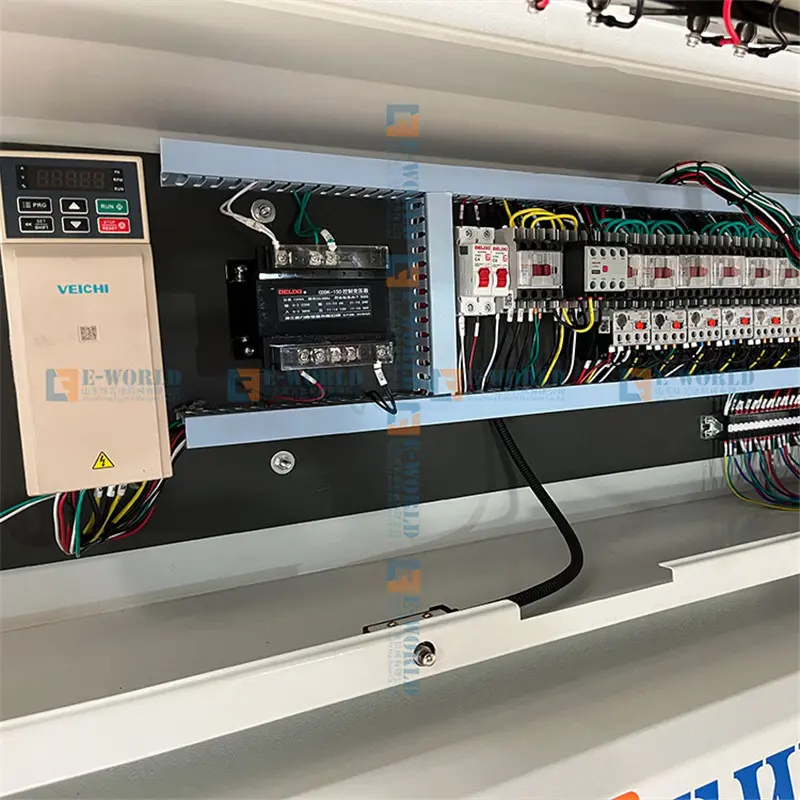

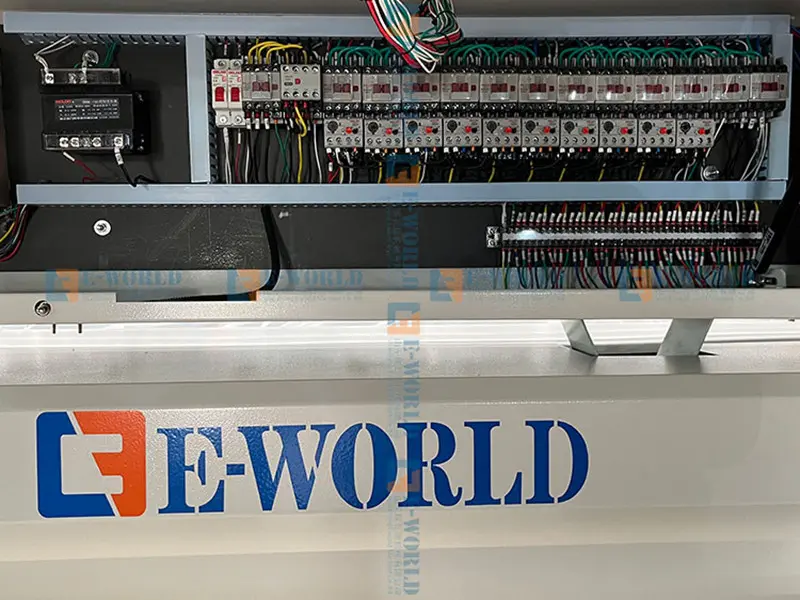

Electrical	DELIXI
AC contactor	DELIXI
Intermediate relay	DELIXI
Button, indicator	DELIXI
PLC	XINJIE(if needed)
