16 motors Double side glass edging machine( USD32000,FOB) EWD-DS3624

Double edge glass grinding machine is economical,efficient equipment with high technique.It adopt ball screw and linear guide rail to have nice repeat positioning,Main convey driver adopts stepless gear ,Glass convey adopts ring synchronous belt to be sure have smooth transmission, accurate positioning

product details

product Tags

video

Brief introduction

Technical parameter:

1.Volt：380V,50HZ/220V.60HZ,customize is workable

2.Speed：1～8m/min（stepless）

3.Min size：200*200 mm

4.Max size：3600*2400mm

Working size can be customized according to client’s requirement.

5.Glass thickness：3～19 mm

6. Chamfer width：2mm

7.Total power：40Kw

8. Max weight：4500Kg

9.Over size:4800mm*5300mm*2000mm

10.10.Working height：900mm±30mm

11.Motor quantity: 16 motors

Wheel position and specification

No.	Name	Specification
1	Diamond wheel with teeth	100# Ф150Ф1210*10
2	Resin wheel	240# Ф150Ф1210*10
3	Resin wheel	240# Ф130Ф1210*10
4	Polishing wheel	10S40, 130*50
5	Polishing wheel	10S40,150*50

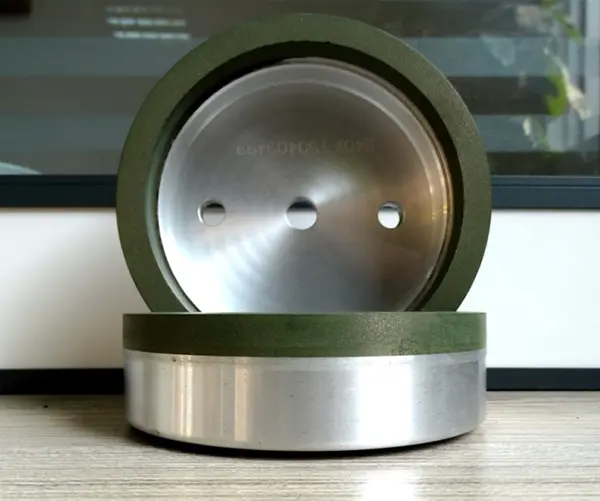

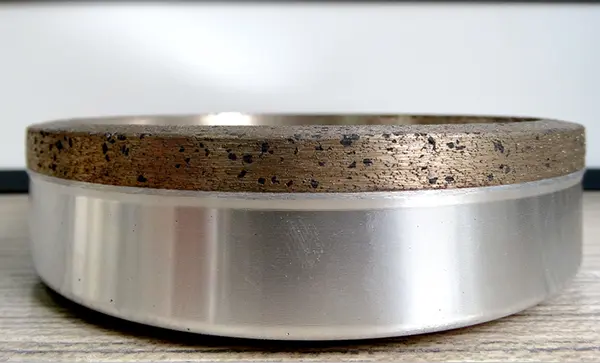

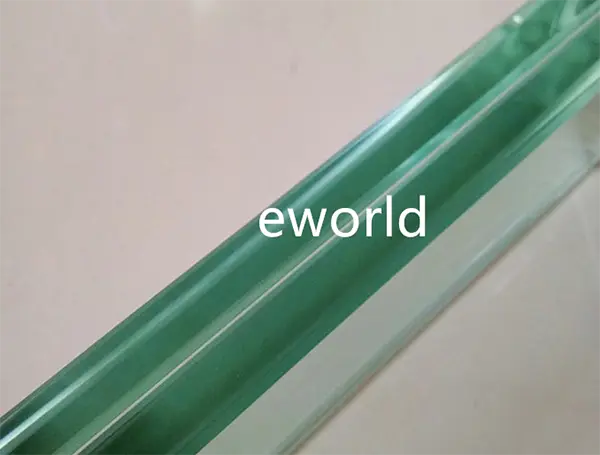

1.Diamond grinding wheel

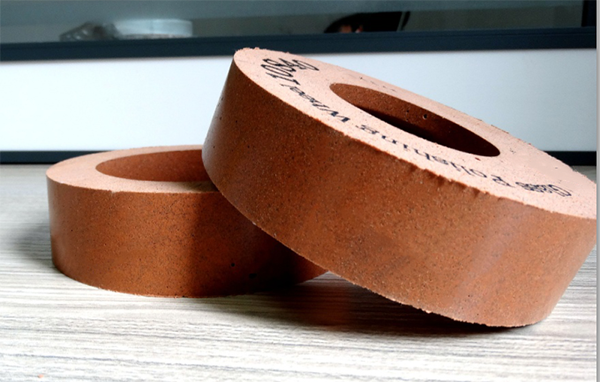

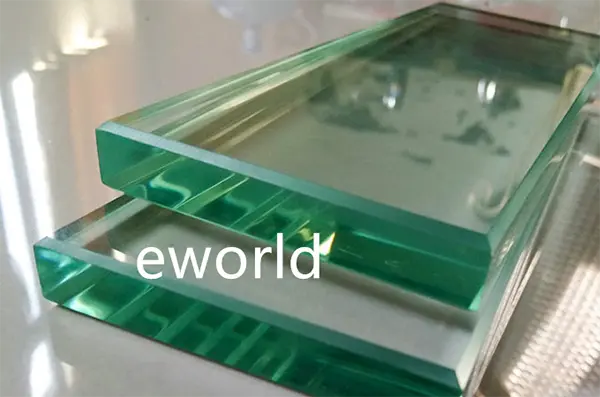

2.Resin wheel

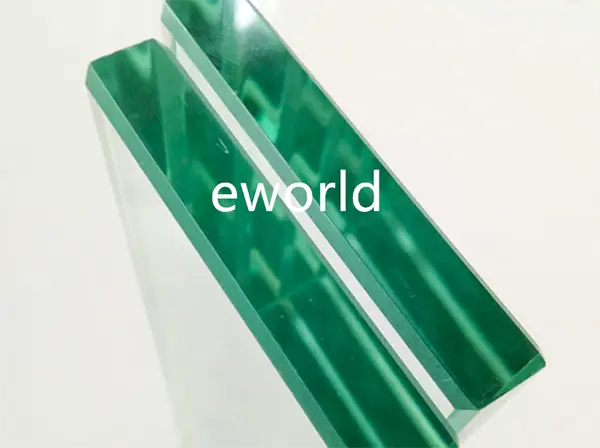

3.Polishing wheel

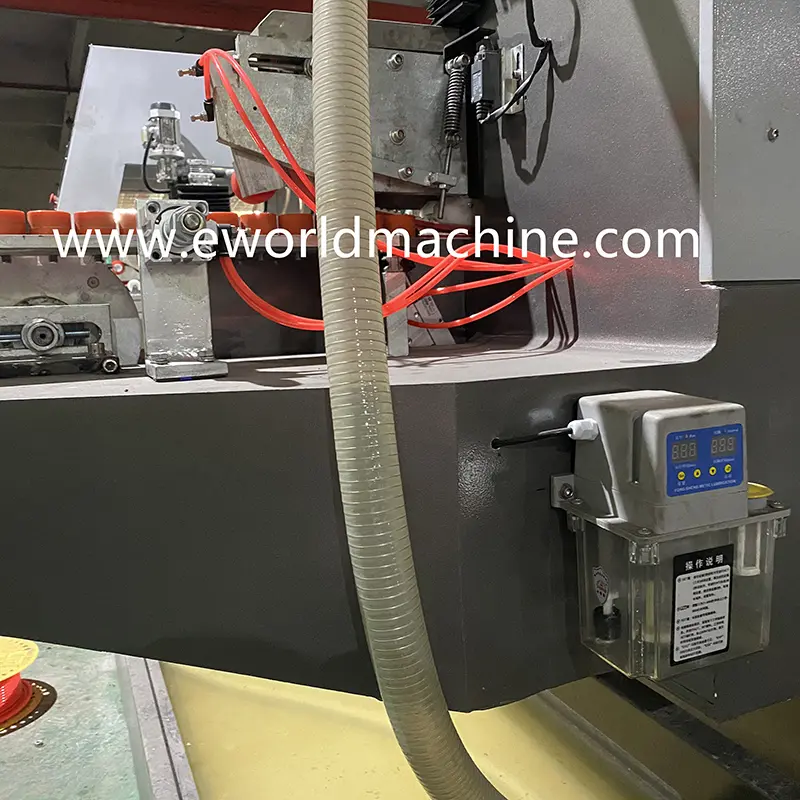

Main parts structure

1．Adopt ball screw and linear guide rail to have nice repeat positioning

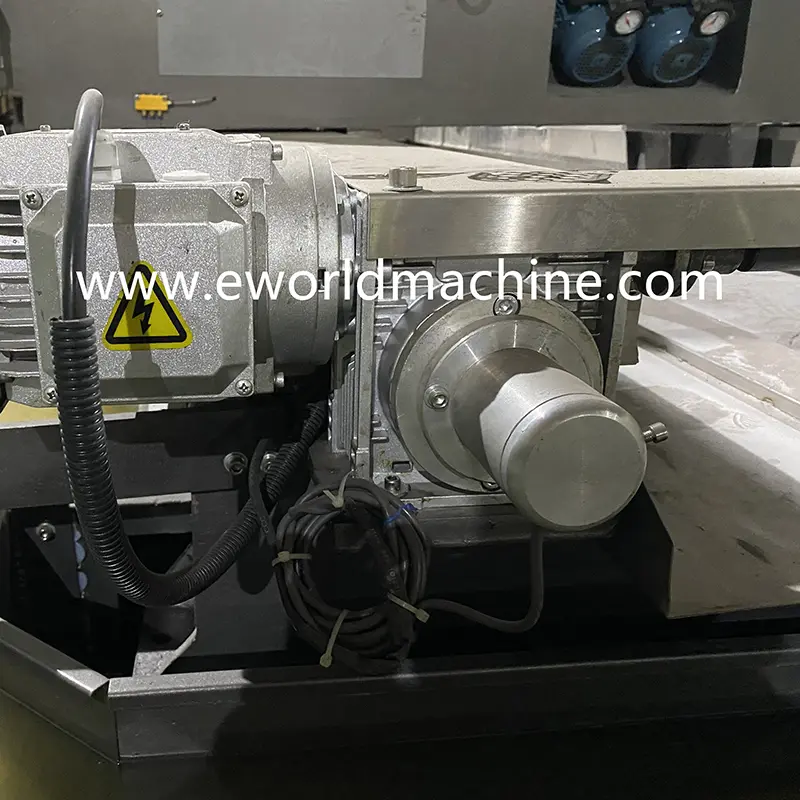

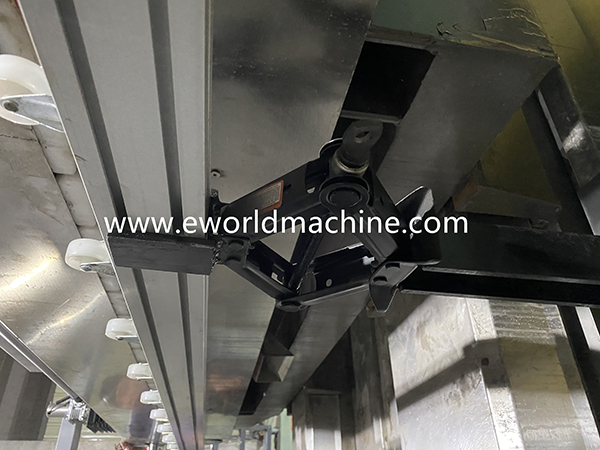

2．Main convey driver adopts stepless gear

3．Main convey axis is located at top to change easily and maintain

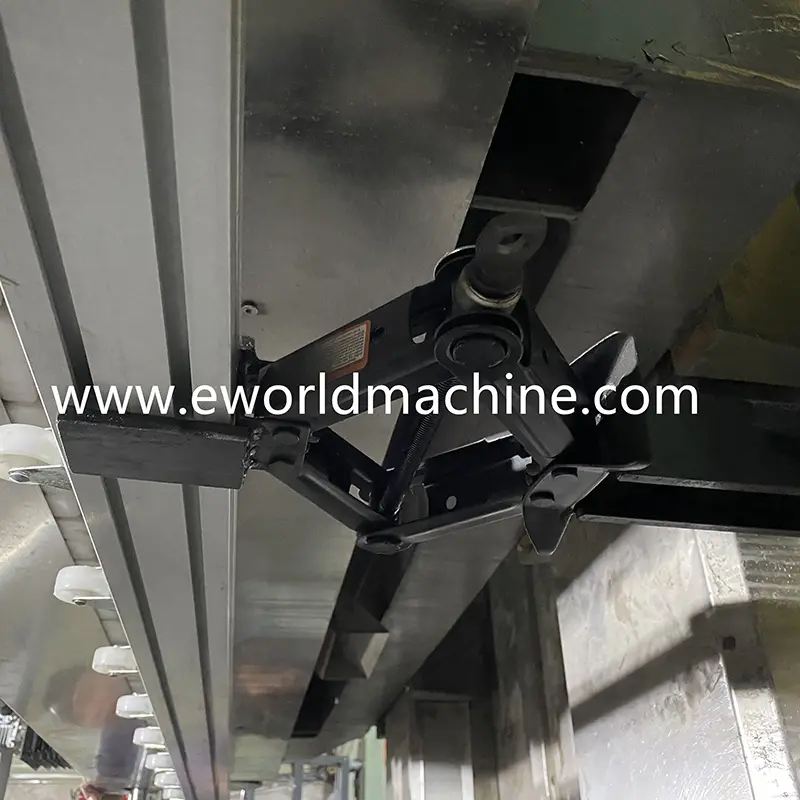

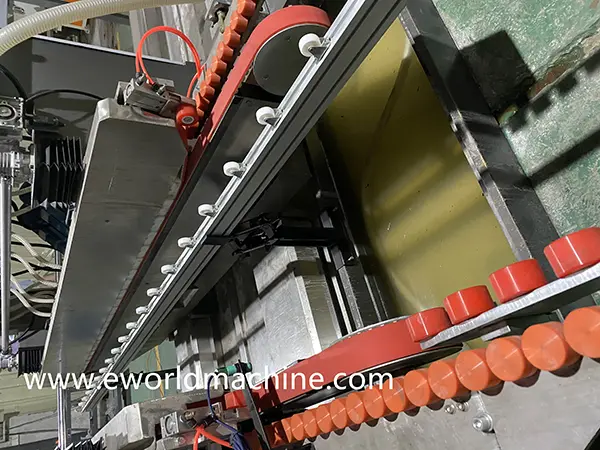

4．Glass convey adopts ring synchronous belt to be sure have smooth transmission, accurate positioning

Configuration

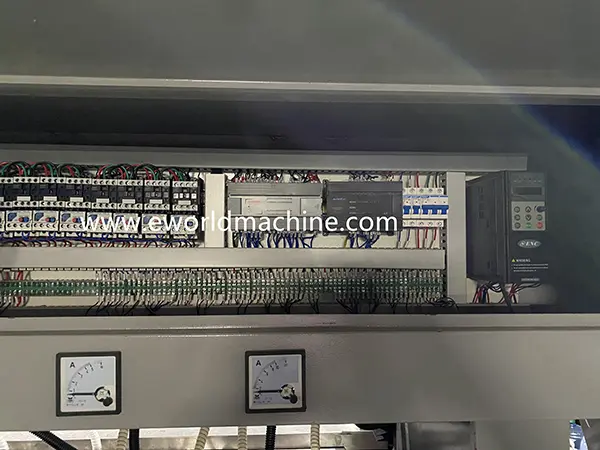

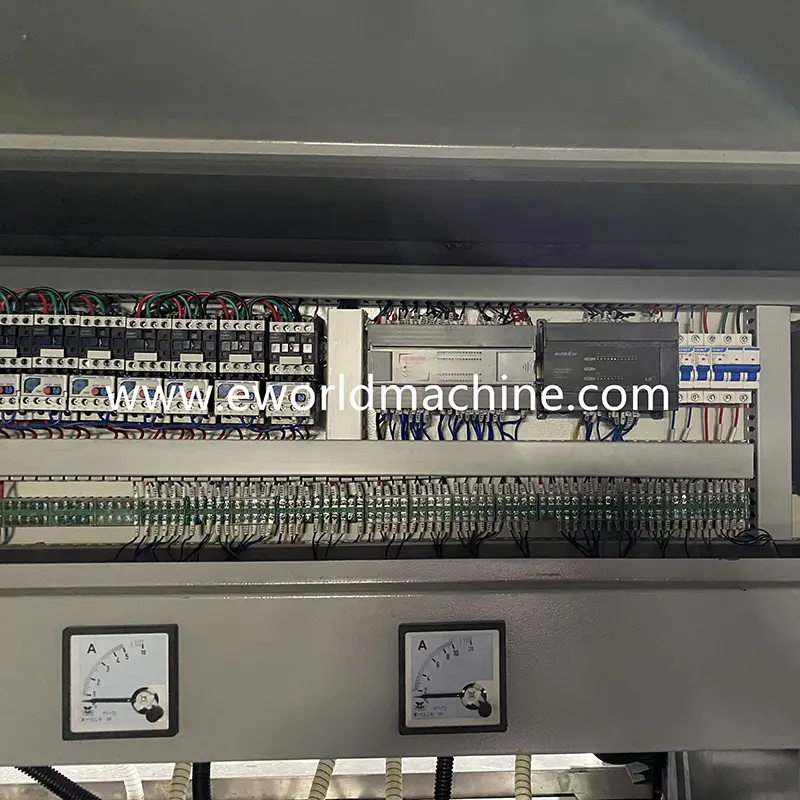

Name	Brand and model

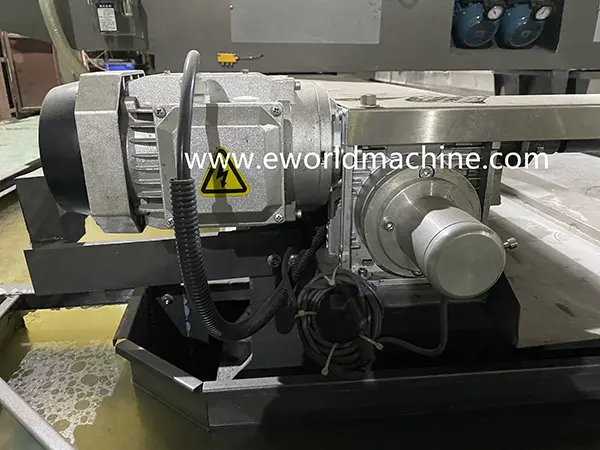

Main drive device	Juhong,China. RV75/110/3KW/3P
Linear guide	Taiwan HINWIN,Taiwan,China #45
Ball screw	Taiwan HINWIN,Taiwan,China #4010
convey synchronous belt	Kexin,China AT20/AT10
wheel motor	Jinlong,China
Main convey gear reducer	Juhong,China
Main bearing	NSK,Japan
water pump	JINGLONG,China
Frequency transformer	Yineng,China C380-CD
Contact	CHINT,China 24v
Electric Relay	CHINT, China 24v
Encoder	Omron, Japan S40-6-1000ZON
Photoelectric switch	CHINT,China

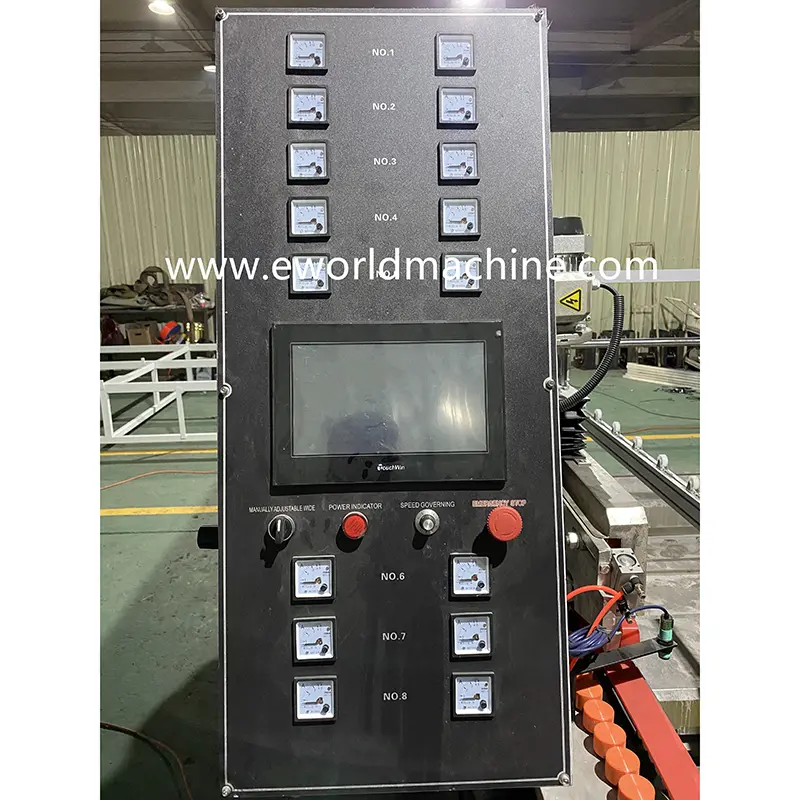

PLC controller	LG, South Korea TL1370-WTFT
Touch screen	Xinjie,China TL1370-WTFT
